Spicer Drive Shaft Companion Flange - 3-1-3341

Name: Spicer Drive Shaft Companion Flange - 3-1-3341
SKU: 3-1-3341
Availability: InStock

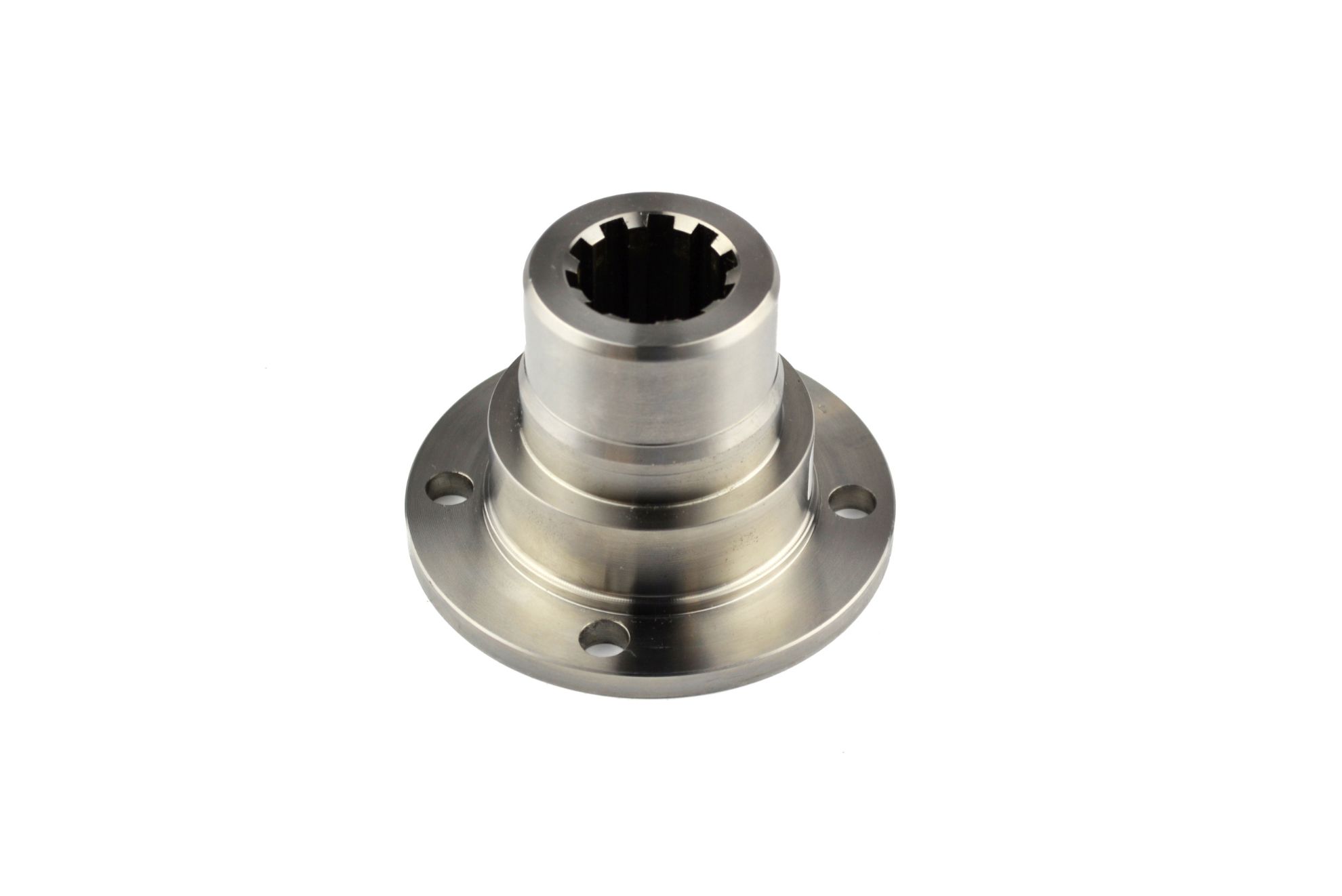

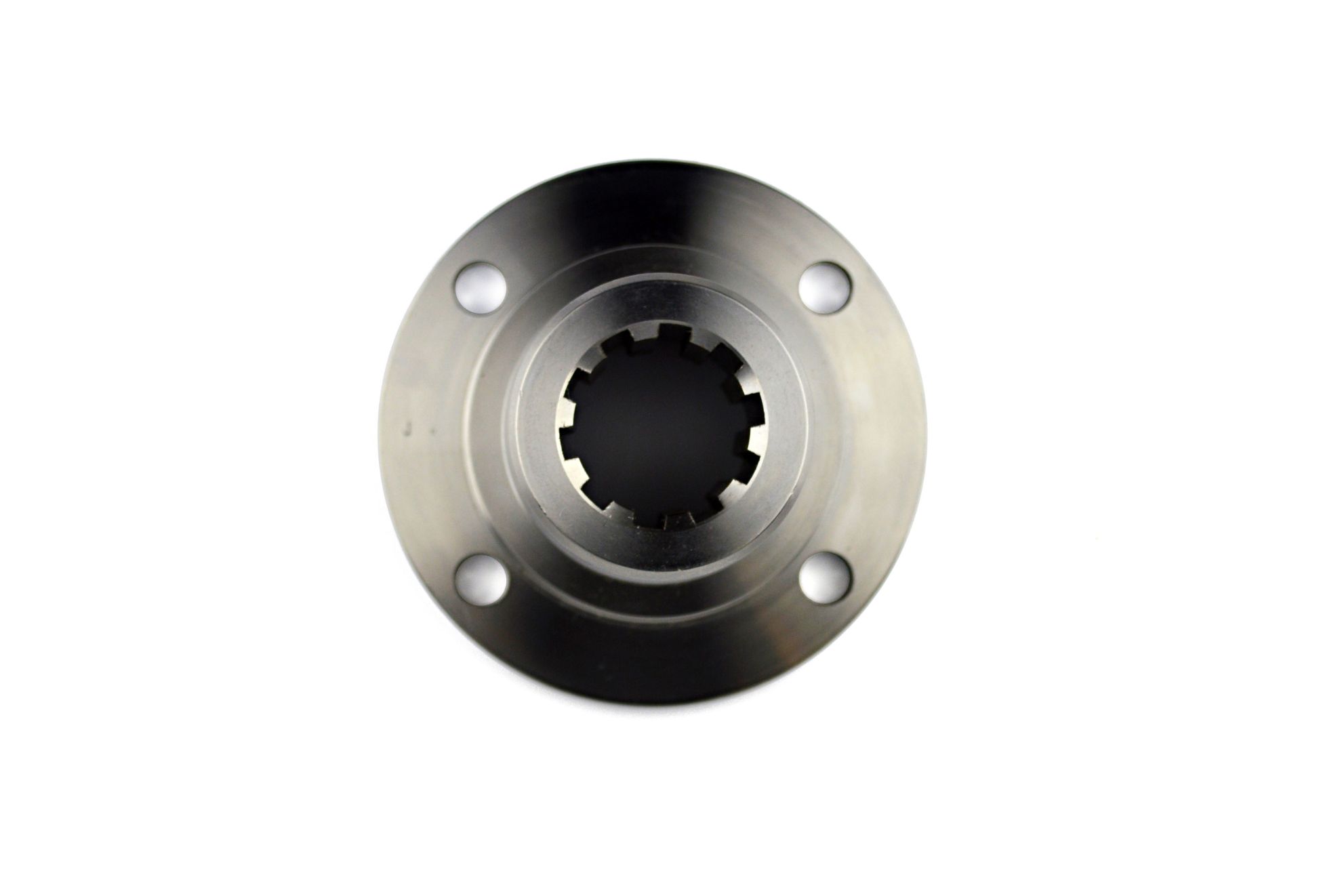

Drive Shaft Companion Flange

Manufacturer: Spicer

Manufacturer part number: 3-1-3341

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1410
Material	Steel
Spline Count	10
Involute Spline	N
Prop 65	NO
Companion Flange Assembly	N
Flange Face To End Of Hub (G)	3.062
Ground Hub Diameter In.	2.250
Length Thru Hole (F) In.	2.188
Major Diameter (D) In.	1.500
Pilot Diameter (C) In.	2.750 - FEMALE
Brake Drum Pilot Diameter In.	3.112
Bolt Circle Dia.(B) In.(FL YK)	3.750
Bolt Hole Diameter In (FL YK)	0.438 - DRILLED
Number Of Holes (FL YK)	4
Country of Origin	US
Condition	New
