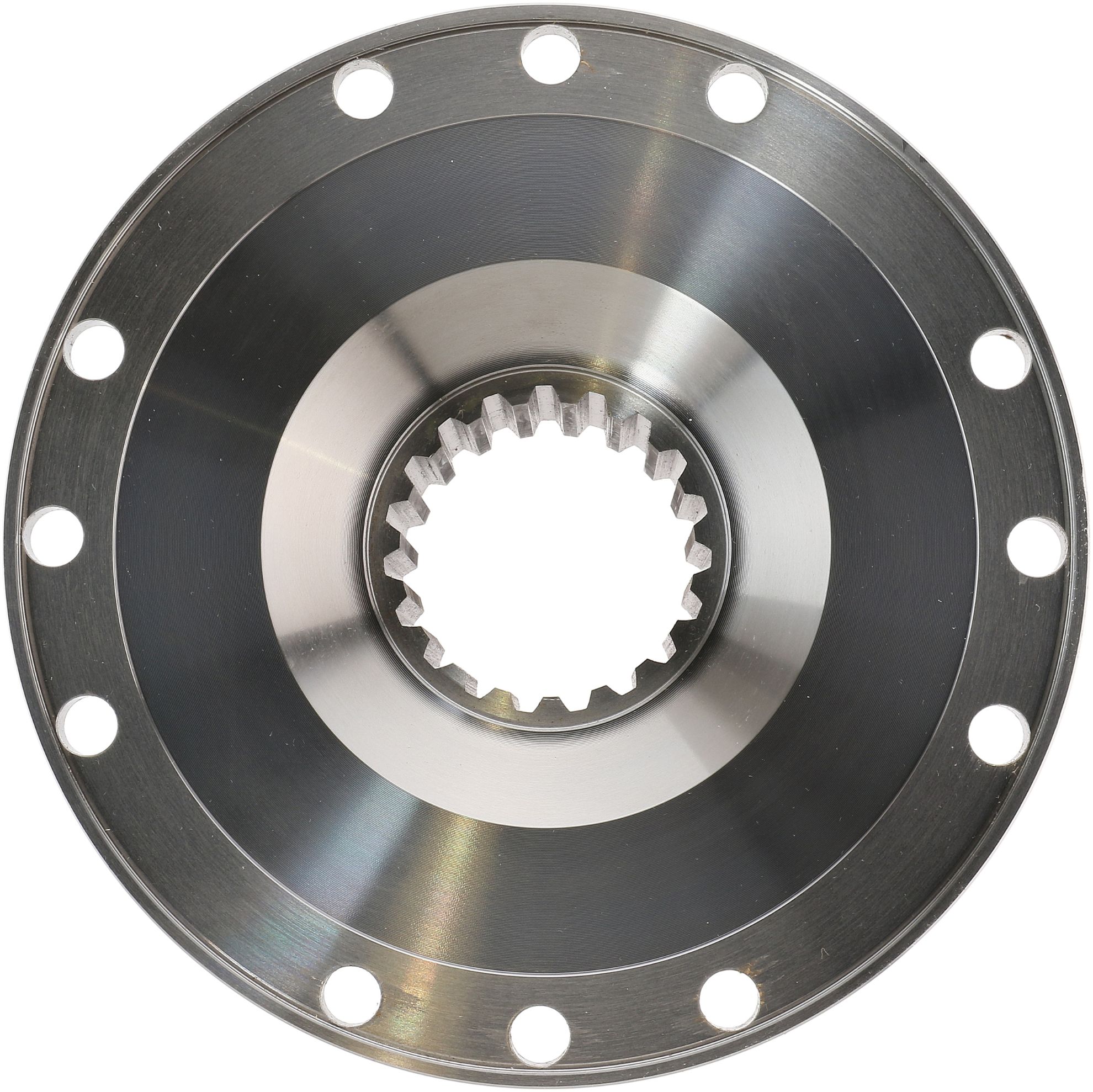

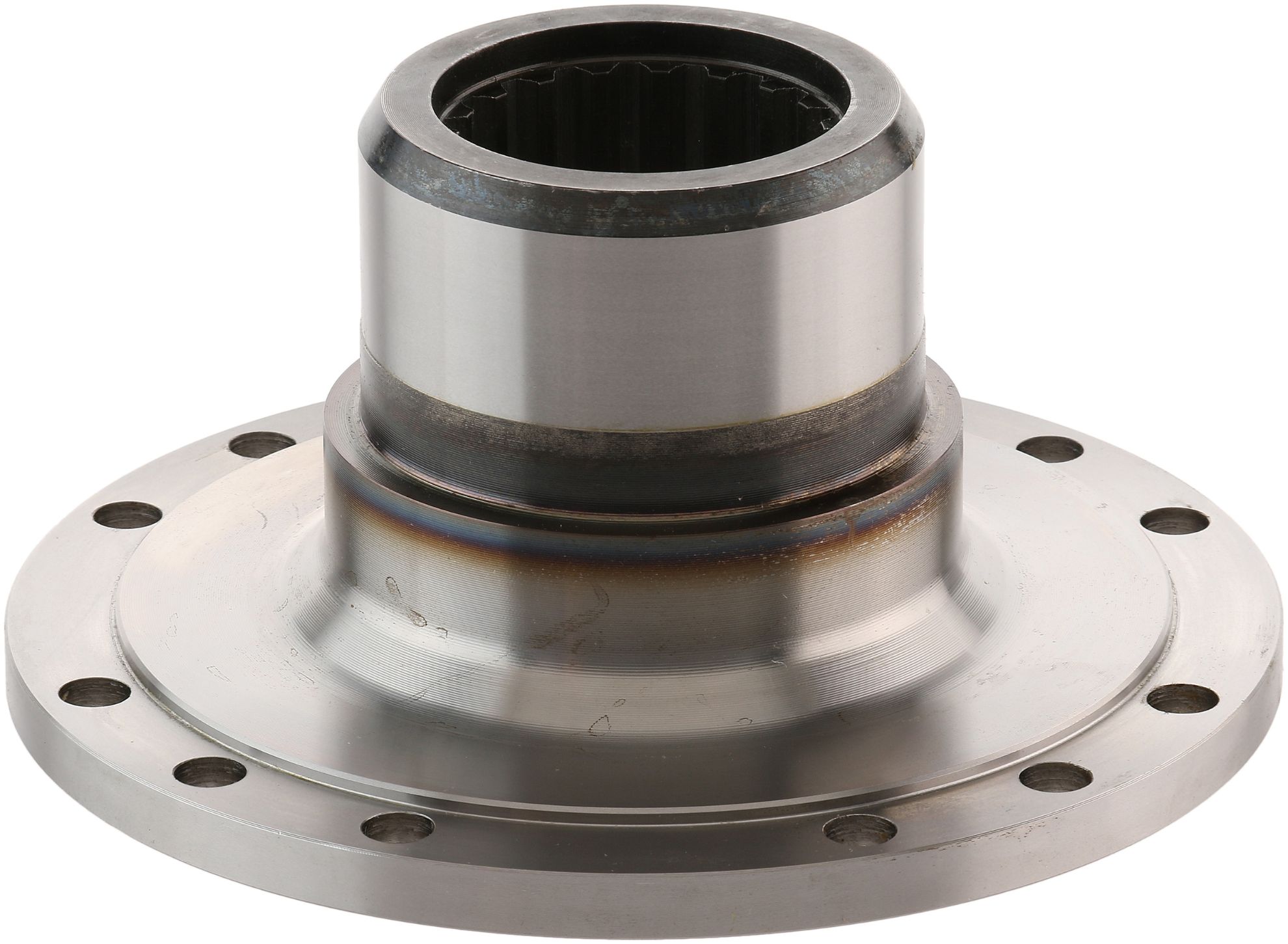

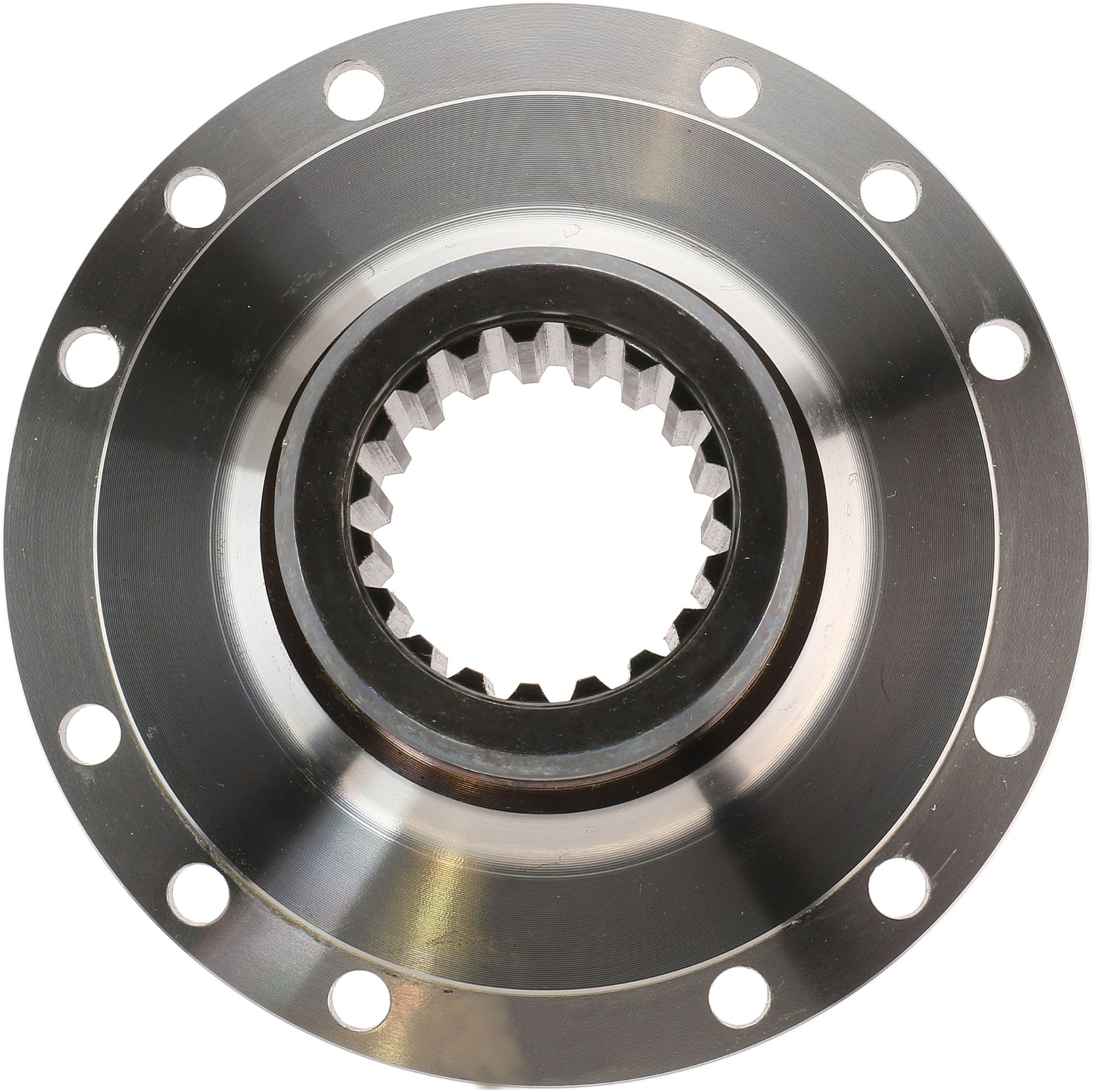

Spicer Drive Shaft Companion Flange - 6.5-1-1361

Name: Spicer Drive Shaft Companion Flange - 6.5-1-1361
SKU: 6.5-1-1361
Availability: InStock

Drive Shaft Companion Flange

Manufacturer: Spicer

Manufacturer part number: 6.5-1-1361

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1810
Material	Steel
Spline Count	19 I
Involute Spline	Y
Prop 65	NO
Companion Flange Assembly	N
Flange Face To End Of Hub (G)	3.844
Ground Hub Diameter In.	3.500
Length Thru Hole (F) In.	3.000
Major Diameter (D) In.	2.503
Pilot Diameter (C) In.	7.750 - FEMALE
Brake Drum Pilot Diameter In.	6.625
Bolt Circle Dia.(B) In.(FL YK)	7.25
Bolt Hole Diameter In (FL YK)	0.438 - DRILLED
Number Of Holes (FL YK)	12
Country of Origin	US
Condition	New
