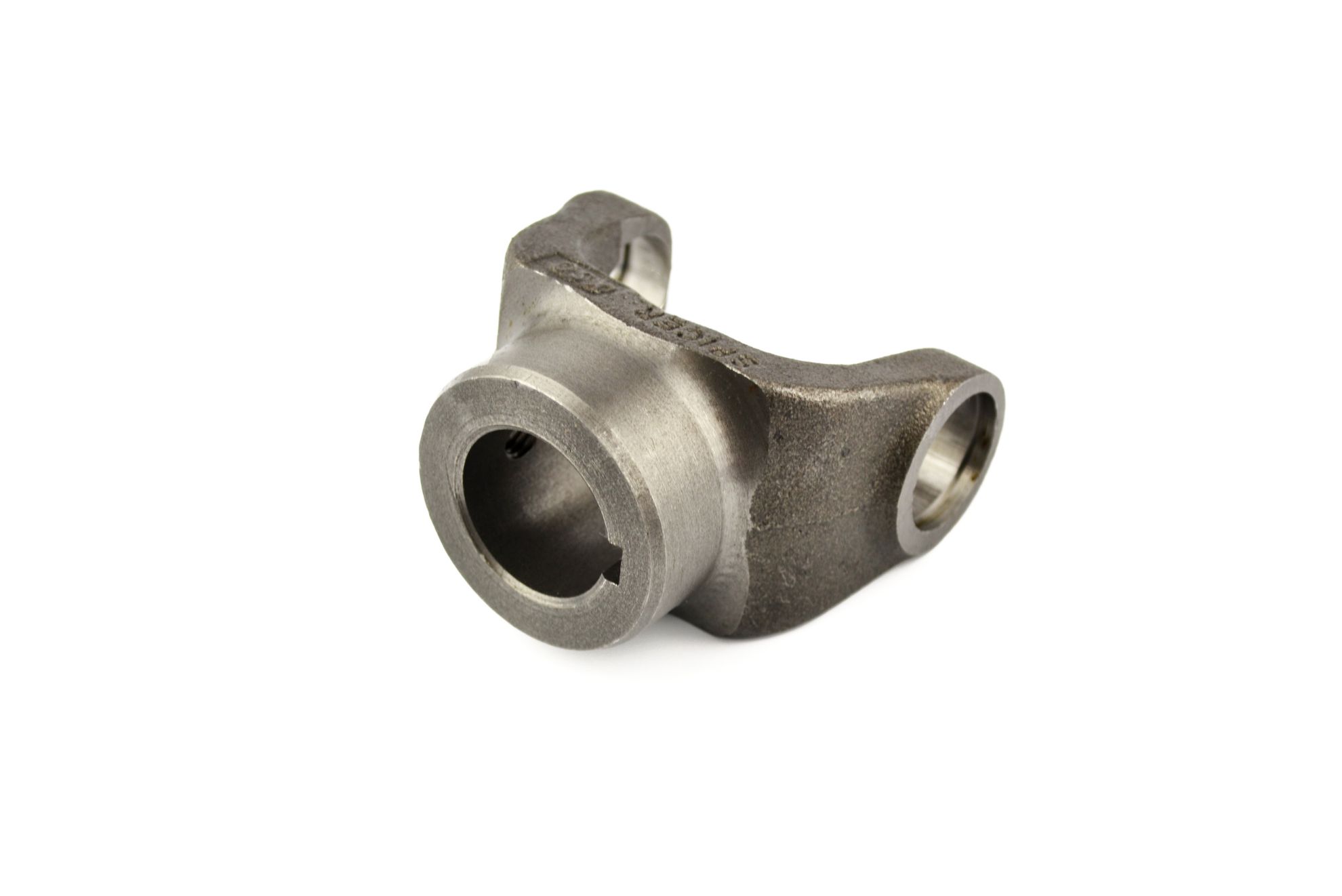

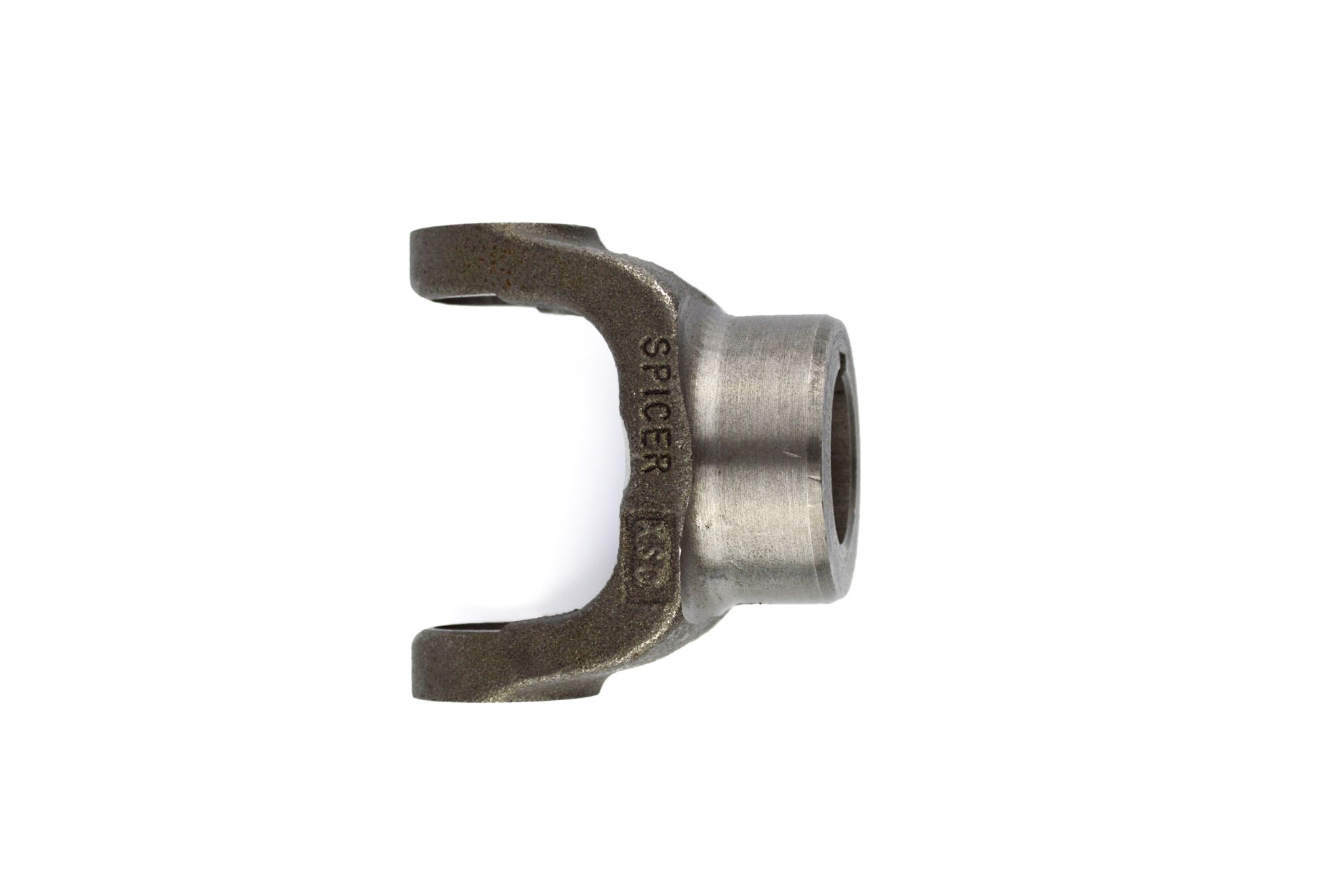

Spicer Drive Shaft End Yoke - 2-4-533

Name: Spicer Drive Shaft End Yoke - 2-4-533
SKU: 2-4-533
Availability: InStock

1310 SERIES END YOKE

Manufacturer: Spicer

Manufacturer part number: 2-4-533

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.

Products specifications

Attribute name	Attribute value
Series	1310
Material	Steel
Type	Straight Round Hole
Hub Diameter R	2.125
Involute Spline	N
Outside Yoke Dimension In.(E)	3.469
Yoke Bearing Dimension (In) D	1.062
Yoke Style	SR
C/L To End Hub S	2.562
Joint Angle #1	17
Prop 65	NO
Hole Diameter (In) P	1.250
Keyway Location W	12
Sae Keyway Width (In) X	0.312
Set Screw Location W	6
Set Screw Hole Diameter (In)	0.375
Hole Diameter - Max	1.251
Hole Diameter - Min	1.250
Keyway Width - Max	0.3155
Keyway Width - Min	0.3135
Country of Origin	US
Condition	New
