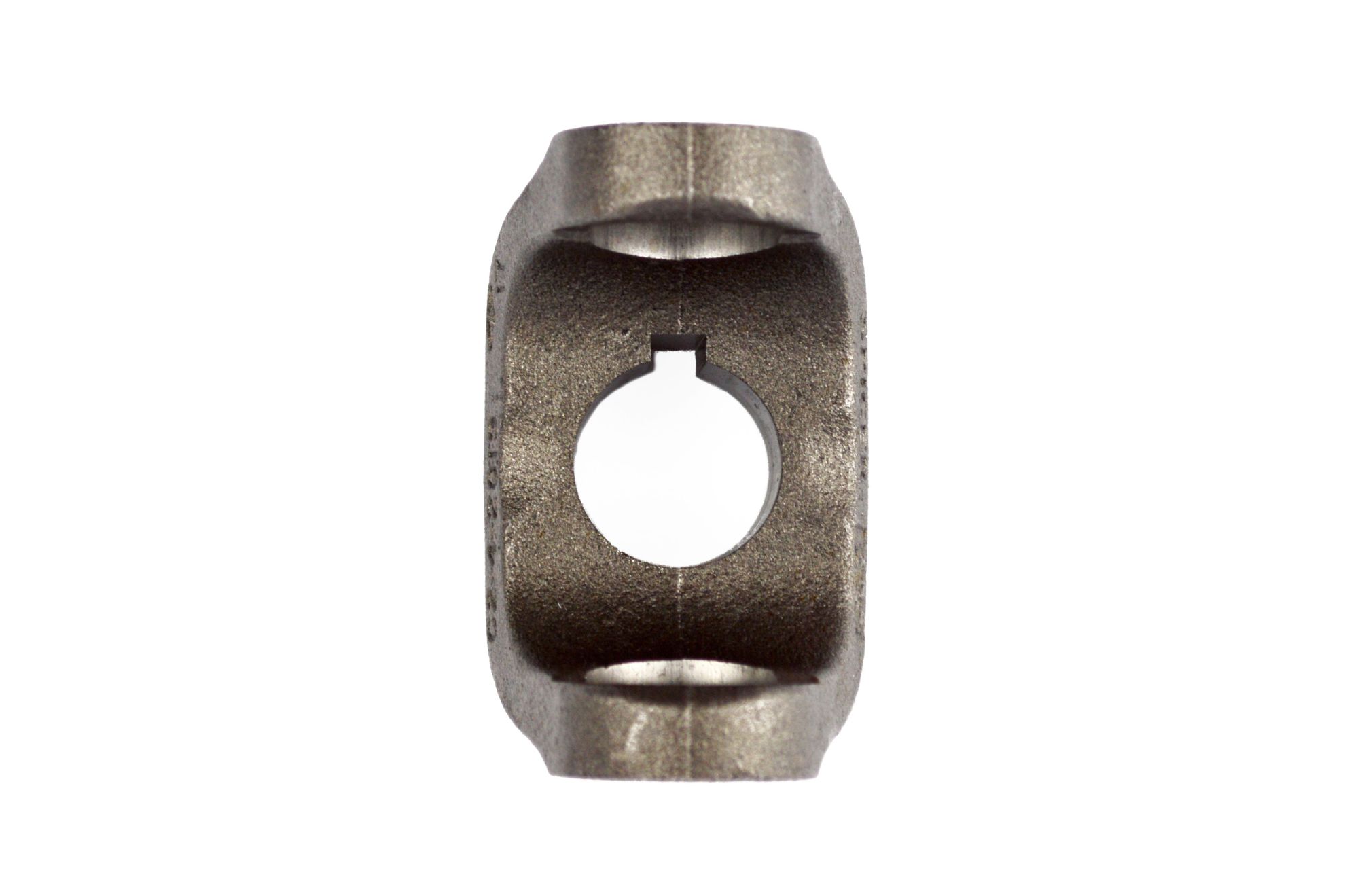

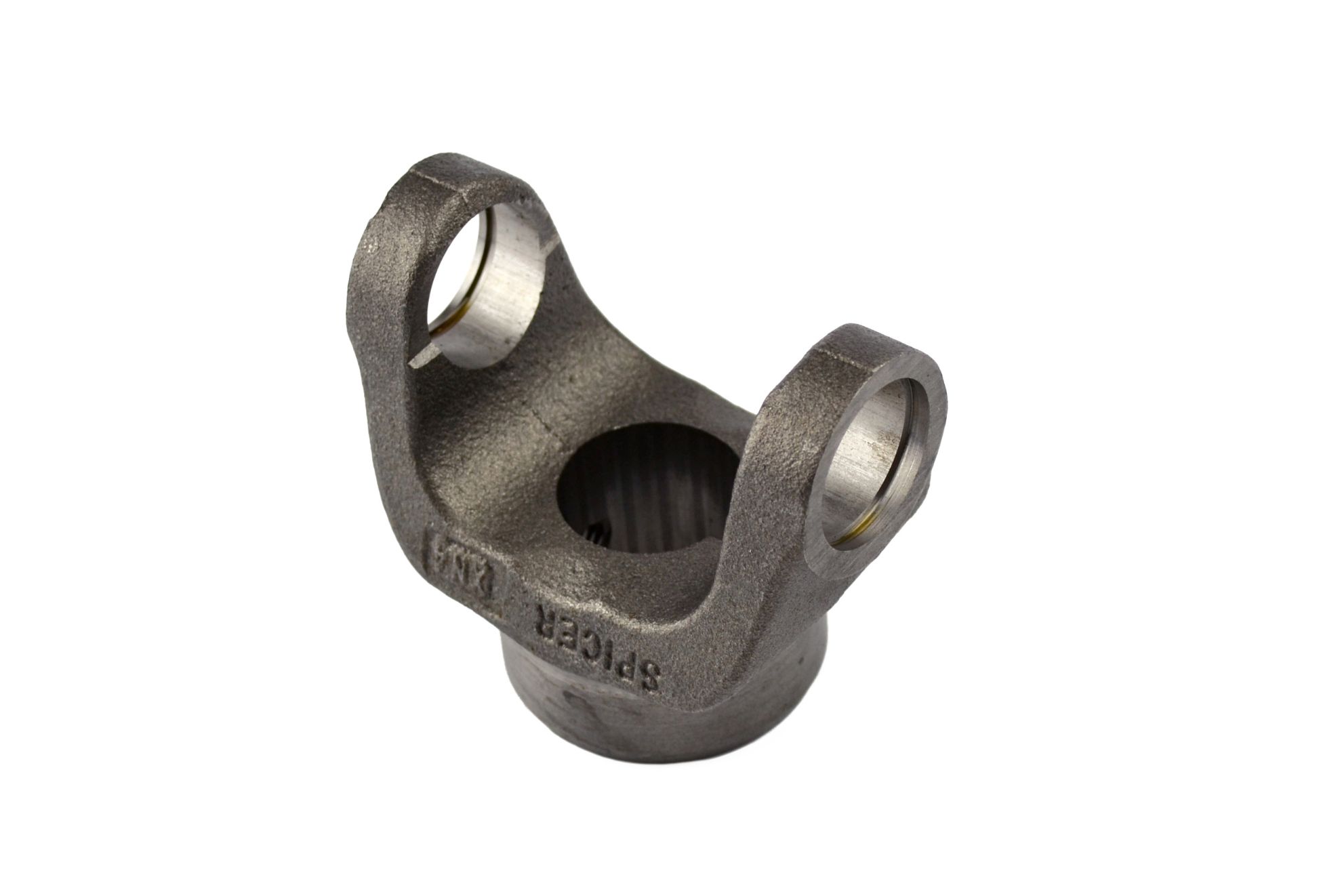

Spicer Drive Shaft End Yoke - 2-4-553

Name: Spicer Drive Shaft End Yoke - 2-4-553
SKU: 2-4-553
Availability: InStock

DRIVE SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 2-4-553

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310
Material	Steel
Type	Straight Round Hole
Hub Diameter R	2.125
Involute Spline	N
Outside Yoke Dimension In.(E)	3.469
Yoke Bearing Dimension (In) D	1.062
Yoke Style	SR
C/L To End Hub S	2.562
Joint Angle #1	17
Prop 65	NO
Hole Diameter (In) P	1.188
Keyway Location W	12
Sae Keyway Width (In) X	0.312
Set Screw Location W	6
Set Screw Hole Diameter (In)	0.375
Hole Diameter - Max	1.188
Hole Diameter - Min	1.187
Keyway Width - Max	0.3155
Keyway Width - Min	0.3135
Country of Origin	US
Condition	New
