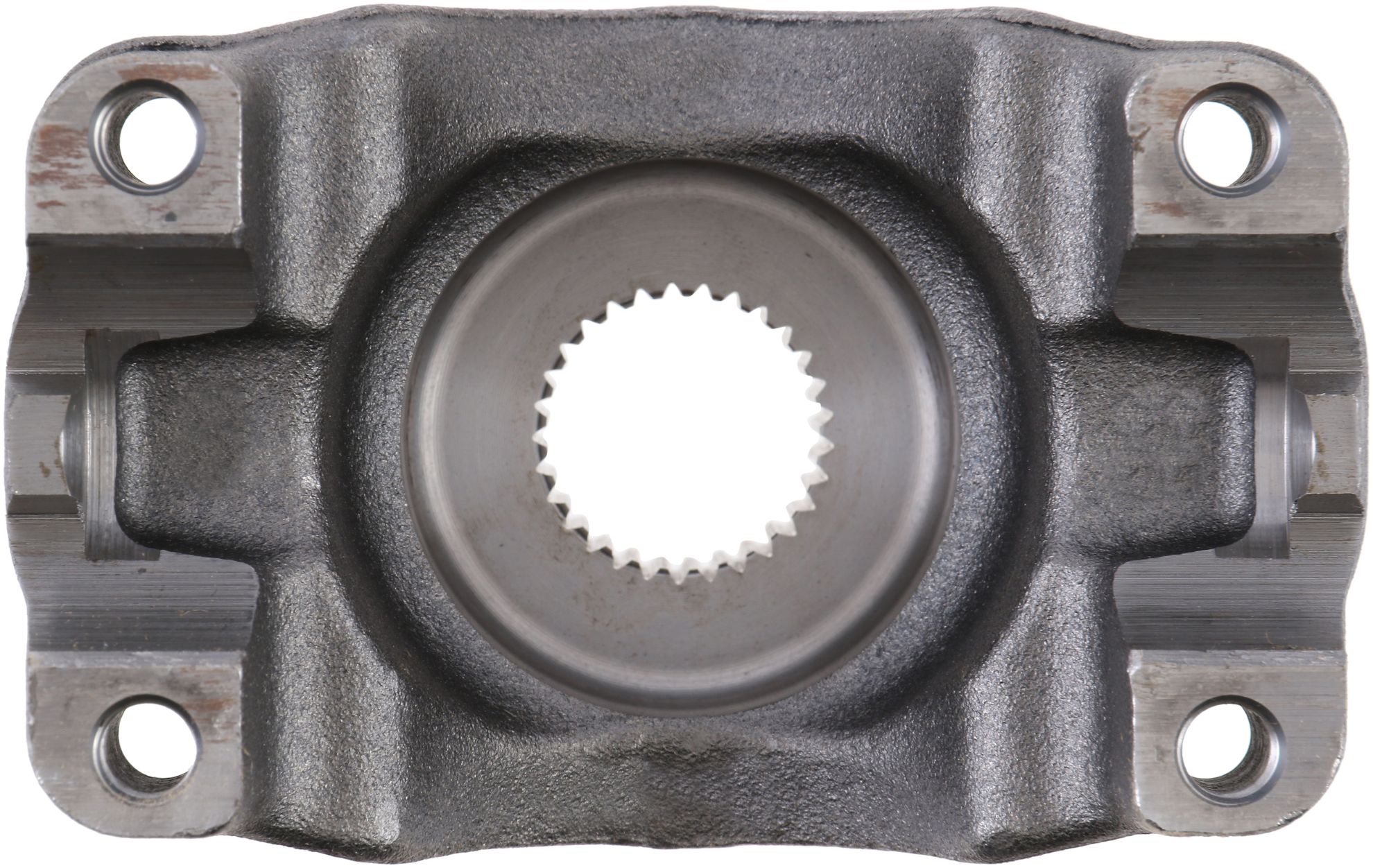

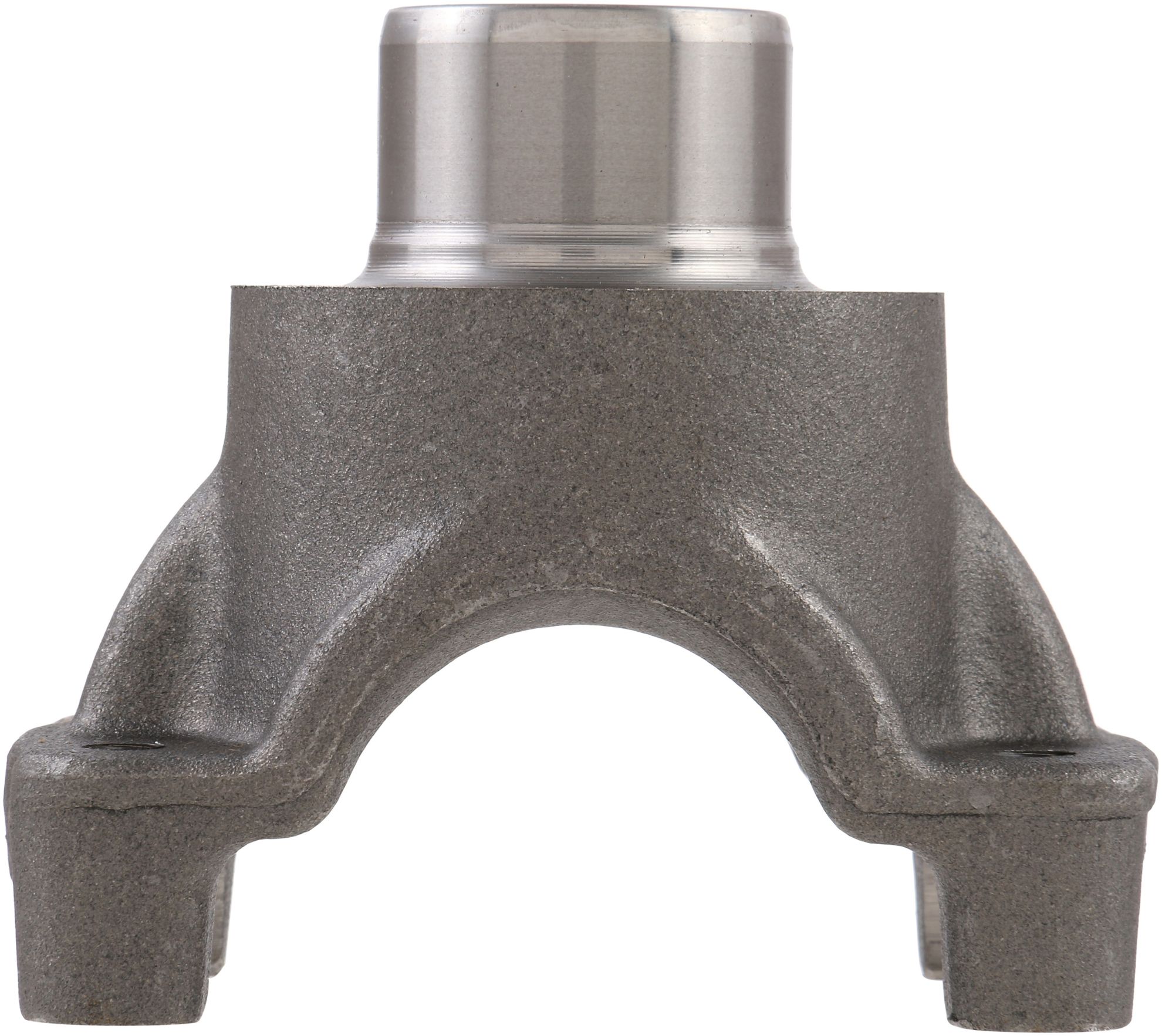

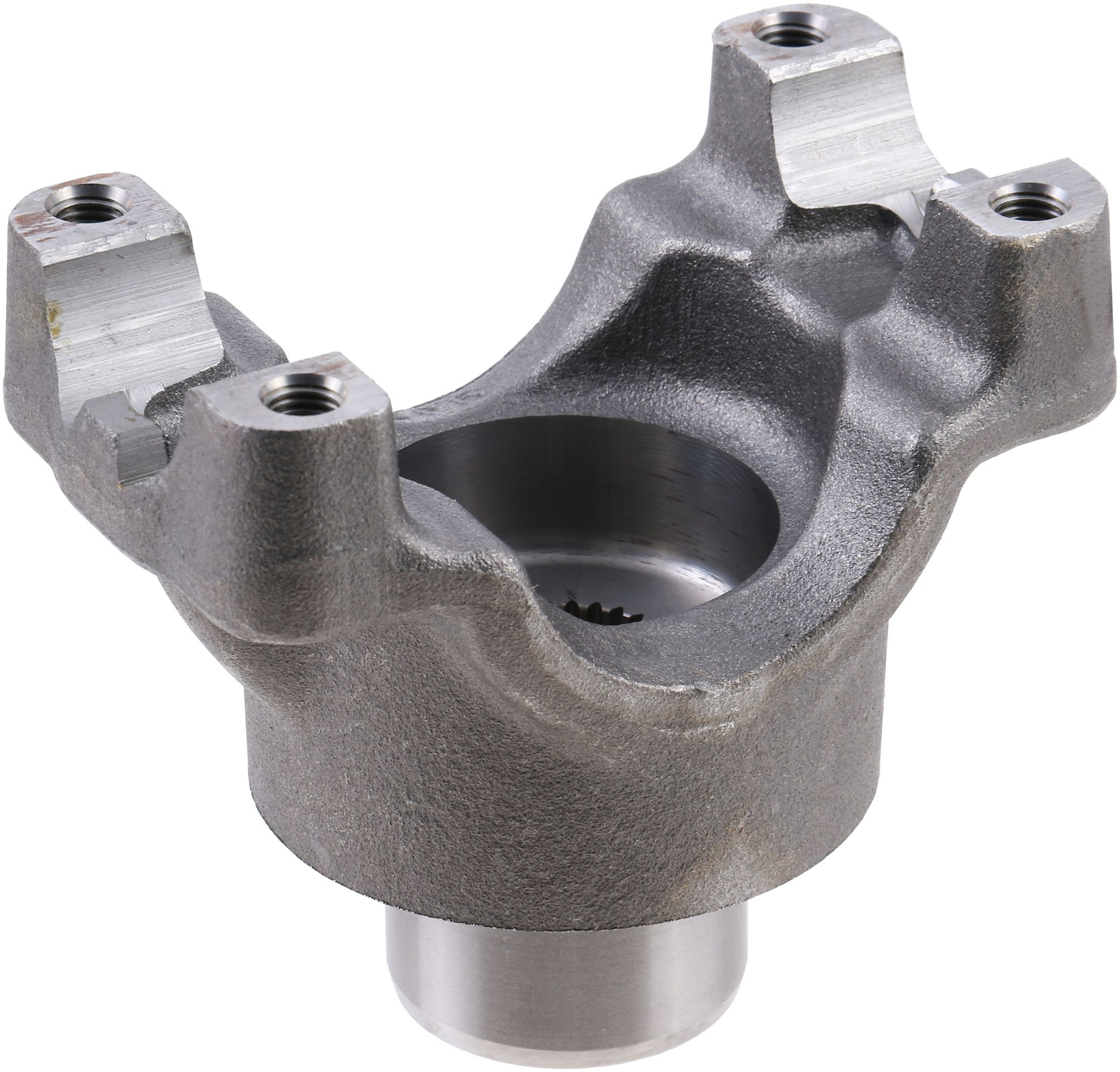

Spicer Drive Shaft End Yoke - 3-4-11721-1

Name: Spicer Drive Shaft End Yoke - 3-4-11721-1
SKU: 3-4-11721-1
Availability: InStock

DRIVE SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 3-4-11721-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1350
Material	Steel
Spline Count	29
Type	Splined Hole
Hub Diameter R	1.500
Involute Spline	I
Length Thru Hole Q	1.500
Outside Yoke Dimension In.(E)	3.625
Yoke Bearing Dimension (In) D	1.188
Yoke Style	BS
Major Diameter	0.970
C/L To End Hub S	3.547
Joint Angle #1	22.5
Prop 65	NO
C-Bore Depth	0.299
C-Bore Diameter	1.125
Country of Origin	US
Condition	New
