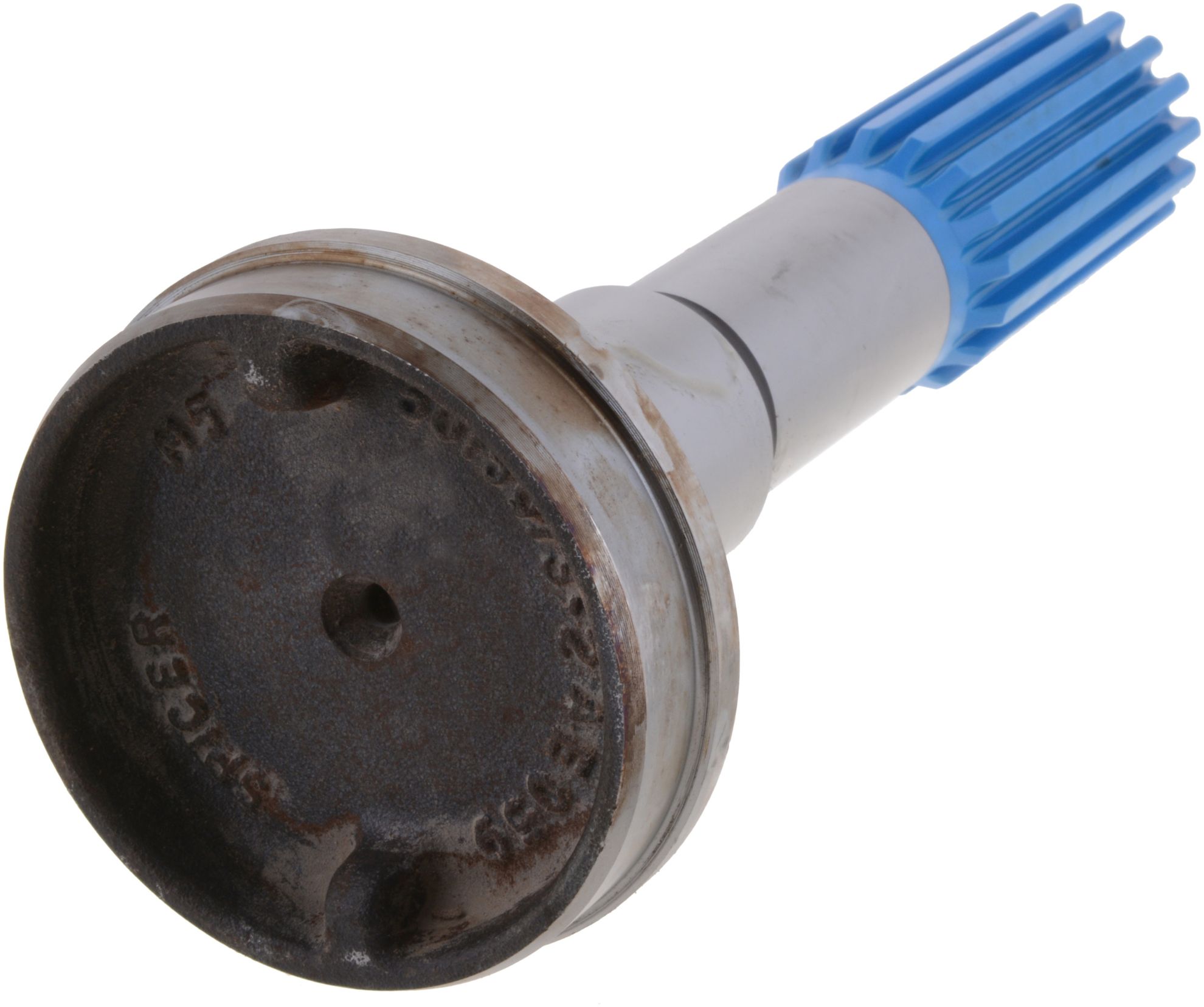

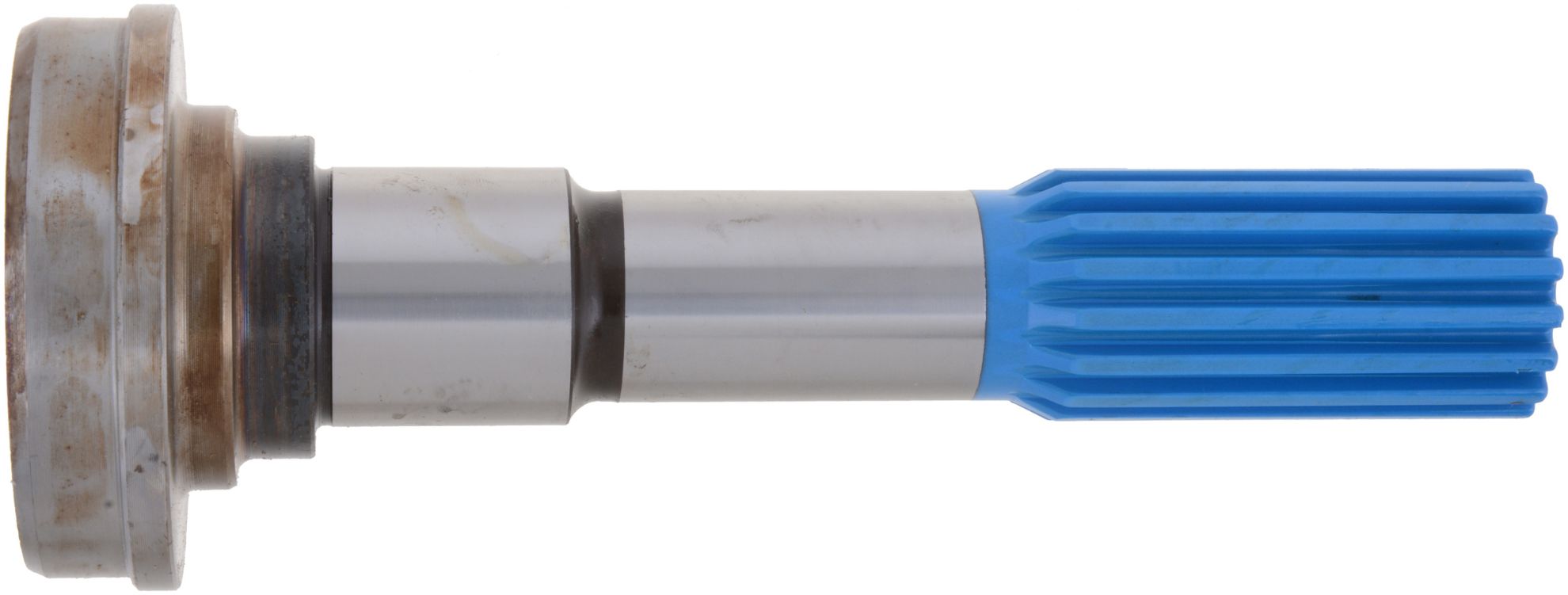

Spicer Drive Shaft Midship Stub Shaft - 3-53-07832

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-07832
SKU: 3-53-07832
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-07832

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310-1480
Material	Steel
Style	2
Prop 65	NO
Spline O.D.	1.5620
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	8.578
Spline Length (L) In	3.000
Bearing Diameter (Min)	1.5747
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	1.940
Shoulder Length (G) In.	0.810
Spline End To Brg Shoulder (Y)	7.470
Bearing Diameter Length	1.53
Number of Splines	16
Fits Tube Diameter	3.500
Involute	N
Fits Tube Wall	0.083
Butt Diameter	3.345
Bearing Diameter (C) In.	1.575
Country of Origin	MX
Condition	New
