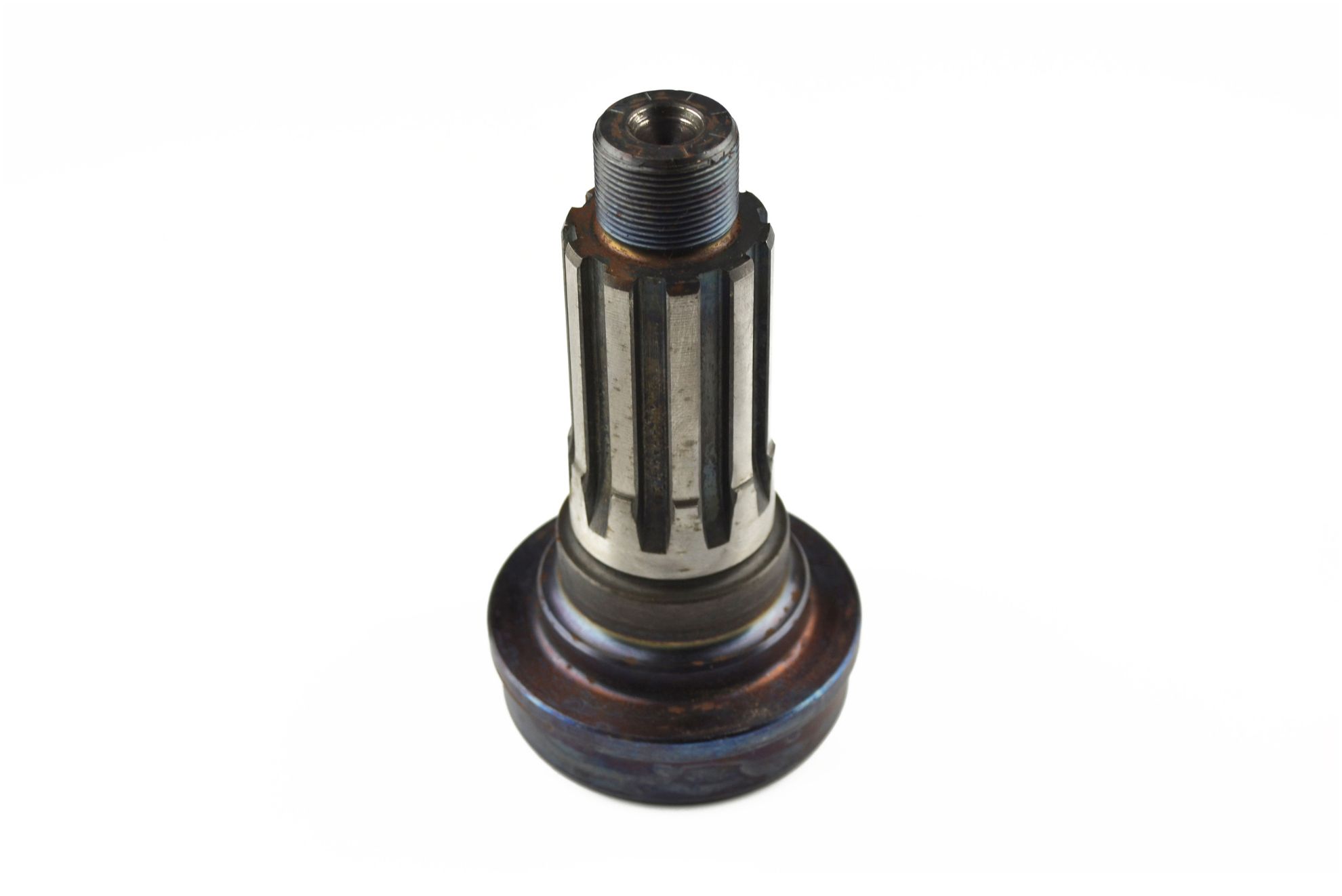

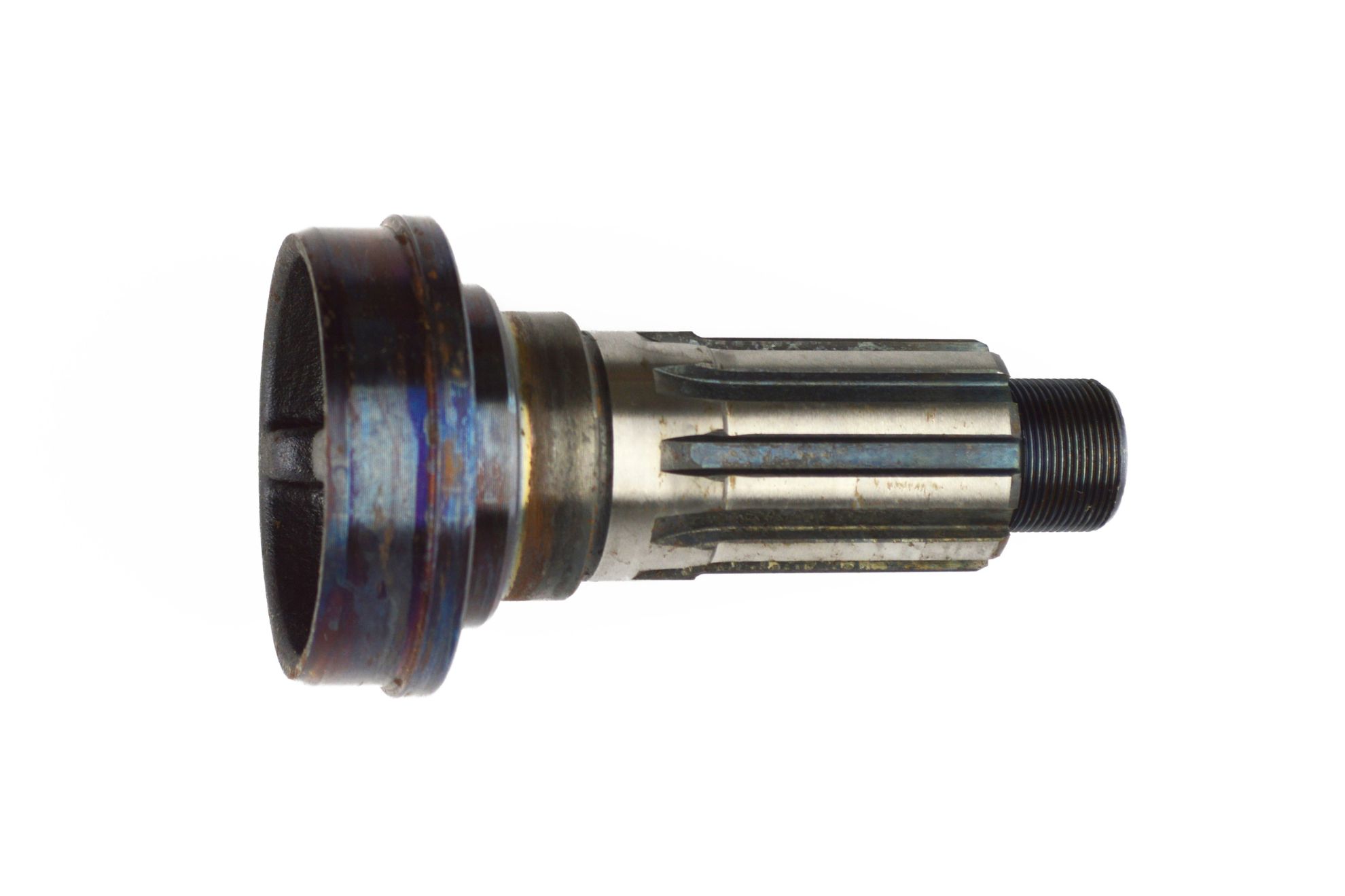

Spicer Drive Shaft Midship Stub Shaft - 3-53-1781

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-1781
SKU: 3-53-1781
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-1781

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310-1410
Material	Steel
Thread Size	1.000-20
Style	2
Prop 65	NO
Spline O.D.	1.500
Fits Tube Diameter	3.000
Involute	N
Fits Tube Wall	.083
Butt Diameter	2.845
Bearing Diameter (C) In.	1.574
Bearing Diameter (Max)	1.5748
Spline End To Weld (K) In.	3.875
Spline Length (L) In	1.940
Bearing Diameter (Min)	1.5743
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	1.810
Spline End To Brg Shoulder (Y)	2.750
Shoulder Length (G) In.	.875
Number of Splines	10
Country of Origin	MX
Condition	New
