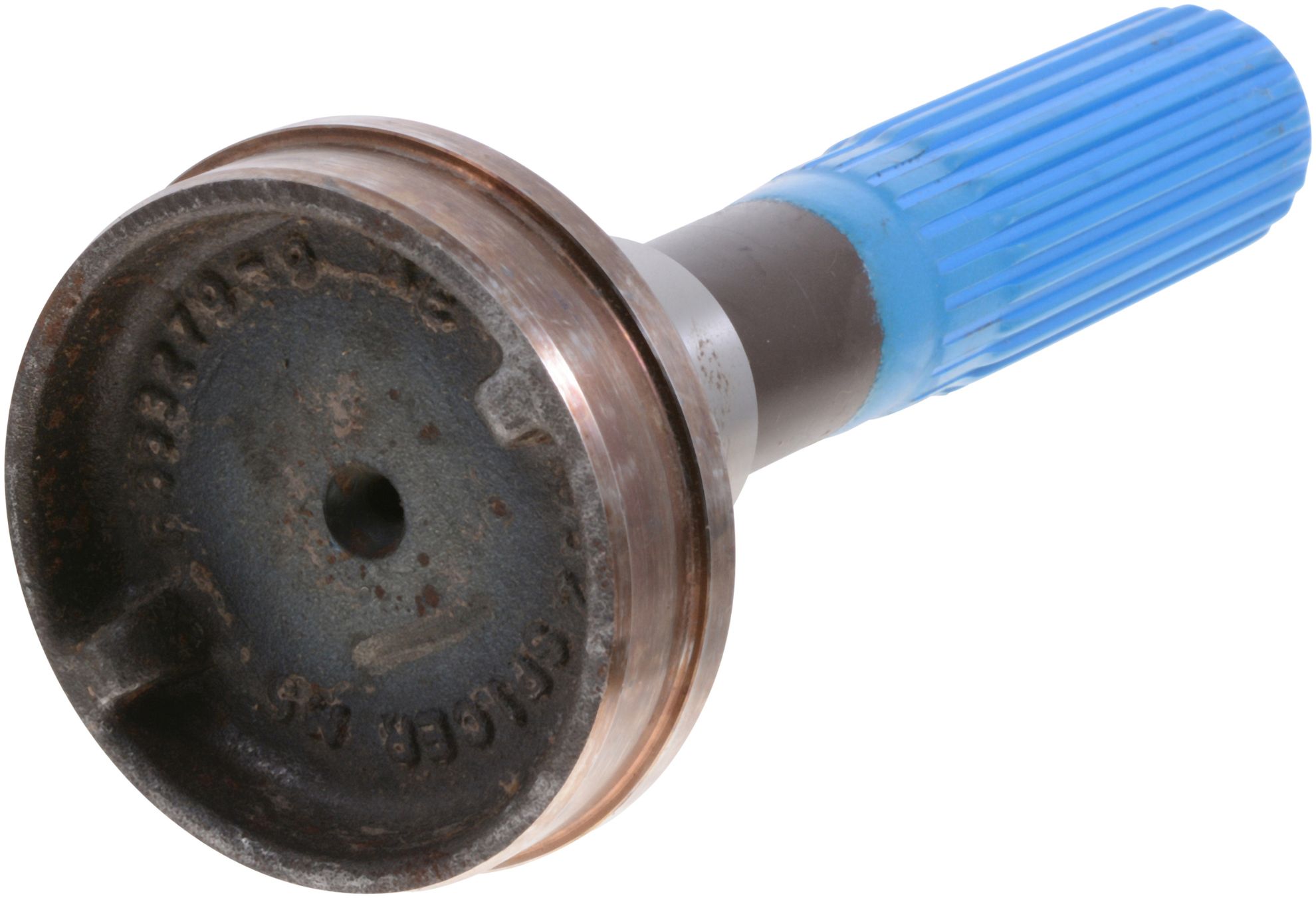

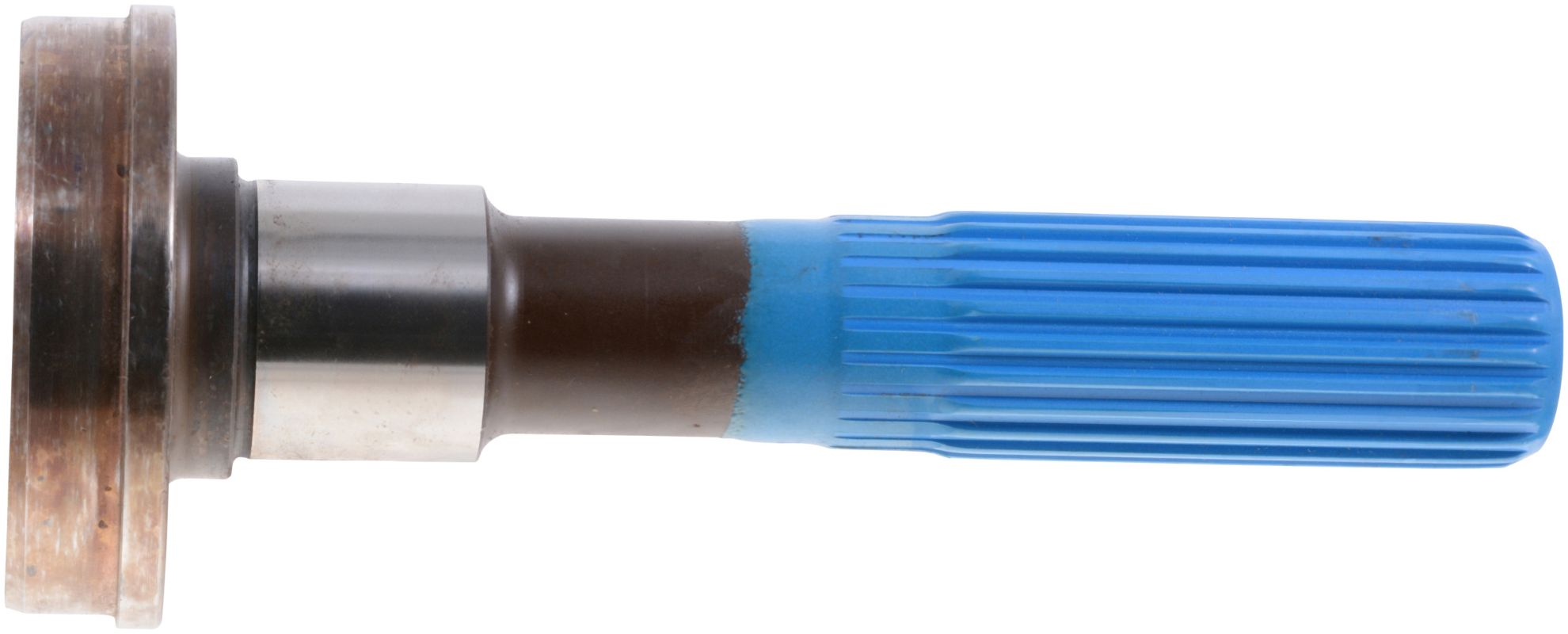

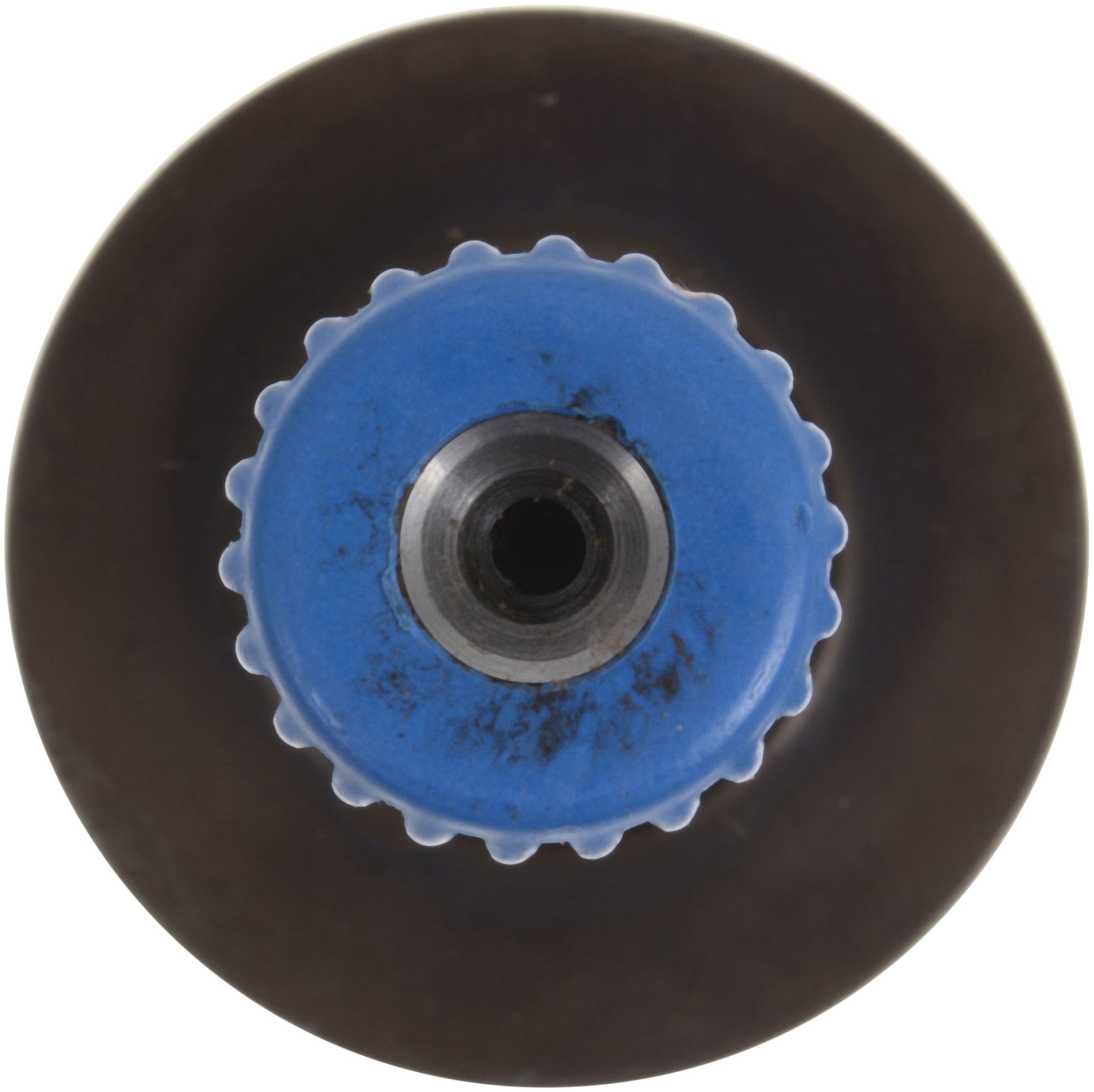

Spicer Drive Shaft Midship Stub Shaft - 3-53-2441

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-2441
SKU: 3-53-2441
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-2441

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310-1480
Material	Steel
Style	2
Prop 65	NO
Spline O.D.	1.4370
Fits Tube Diameter	3.5
Involute	Y
Fits Tube Wall	0.083
Butt Diameter	3.345
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5751
Spline End To Weld (K) In.	8.080
Spline Length (L) In	3.500
Bearing Diameter (Min)	1.5747
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	1.800
Shoulder Length (G) In.	0.375
Spline End To Brg Shoulder (Y)	7.715
Bearing Diameter Length	1.375
Number of Splines	21/22 I
Country of Origin	MX
Condition	New
