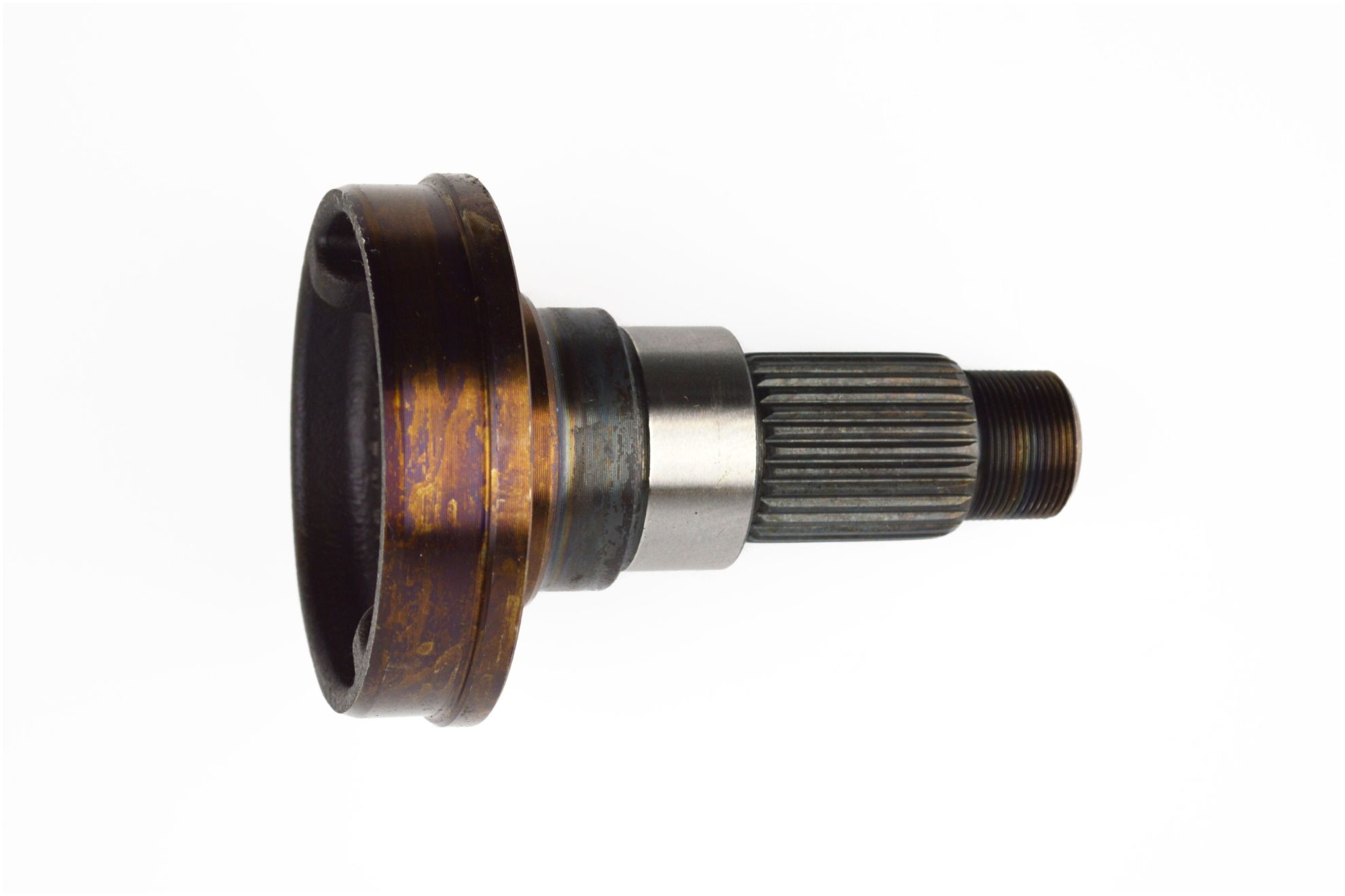

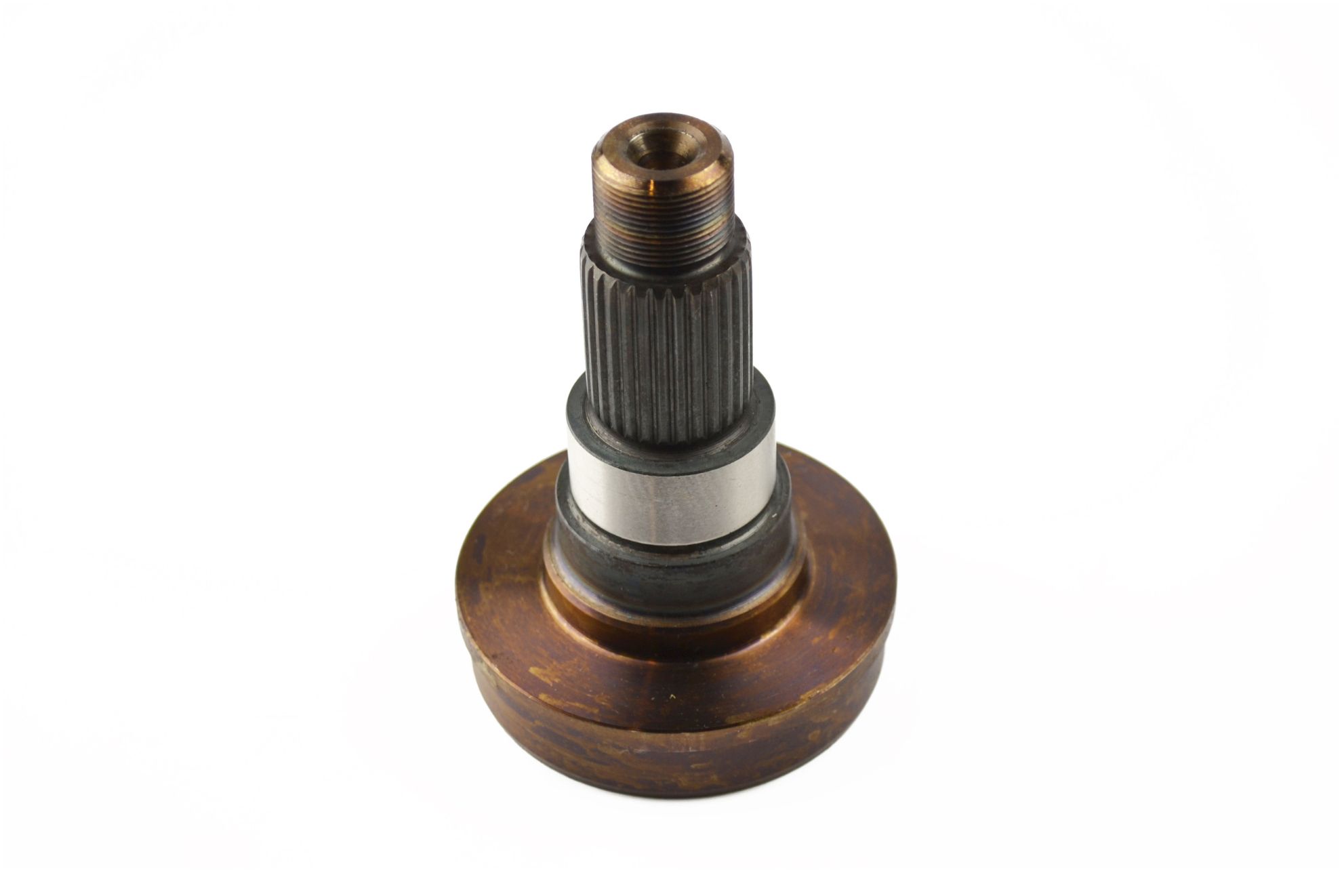

Spicer Drive Shaft Midship Stub Shaft - 3-53-2541

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-2541
SKU: 3-53-2541
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-2541

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Fits Tube Diameter	3.500
Involute	Y
Fits Tube Wall	.083
Butt Diameter	3.345
Bearing Diameter (C) In.	1.574
Bearing Diameter (Max)	1.5748
Spline End To Weld (K) In.	3.460
Spline Length (L) In	1.530
Bearing Diameter (Min)	1.5743
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	1.810
Shoulder Length (G) In.	.880
Spline End To Brg Shoulder (Y)	2.340
Number of Splines	29 I
Series	1310-1410
Material	Steel
Thread Size	1.000-20
Style	2
Spline O.D.	1.250
Country of Origin	MX
Condition	New
