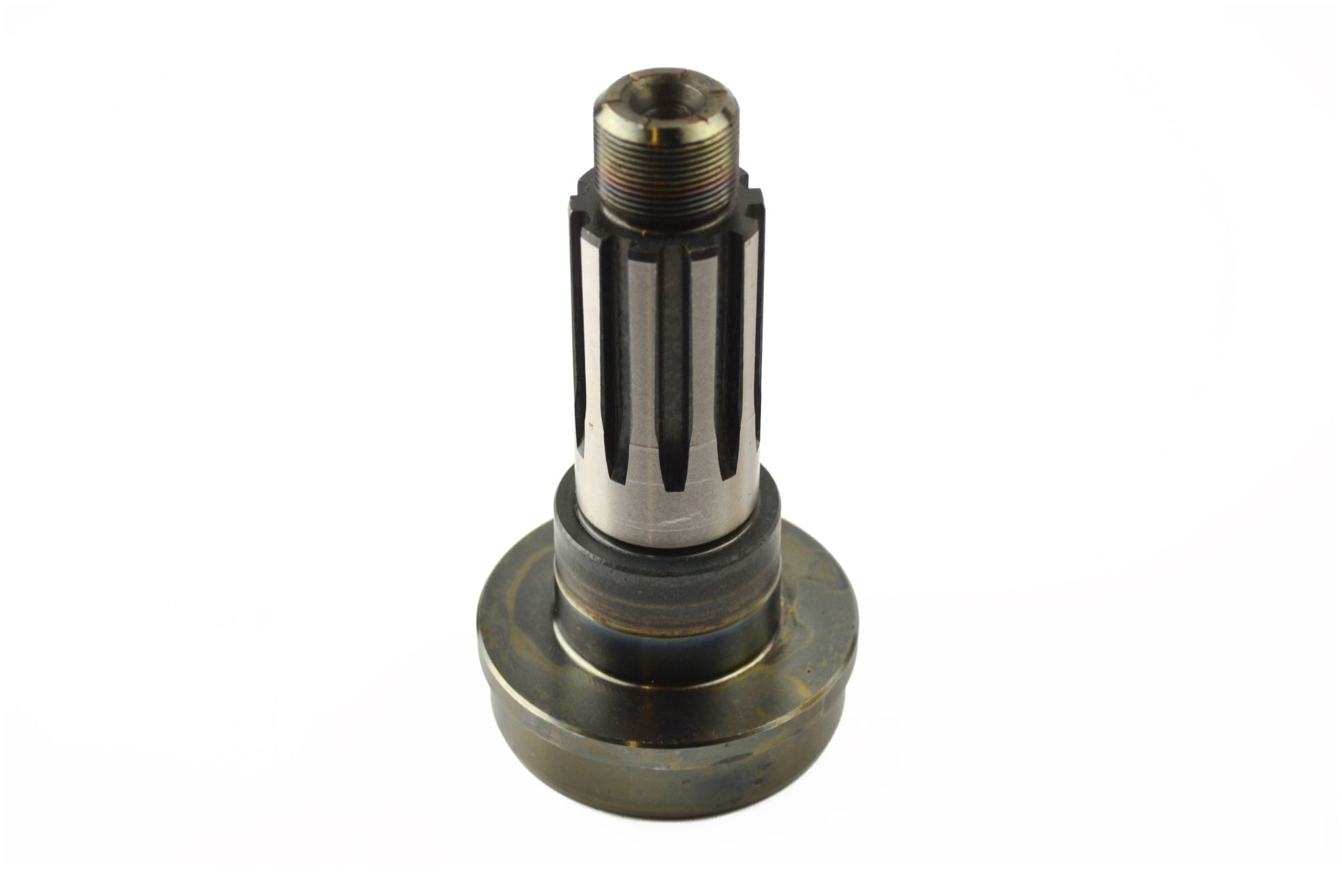

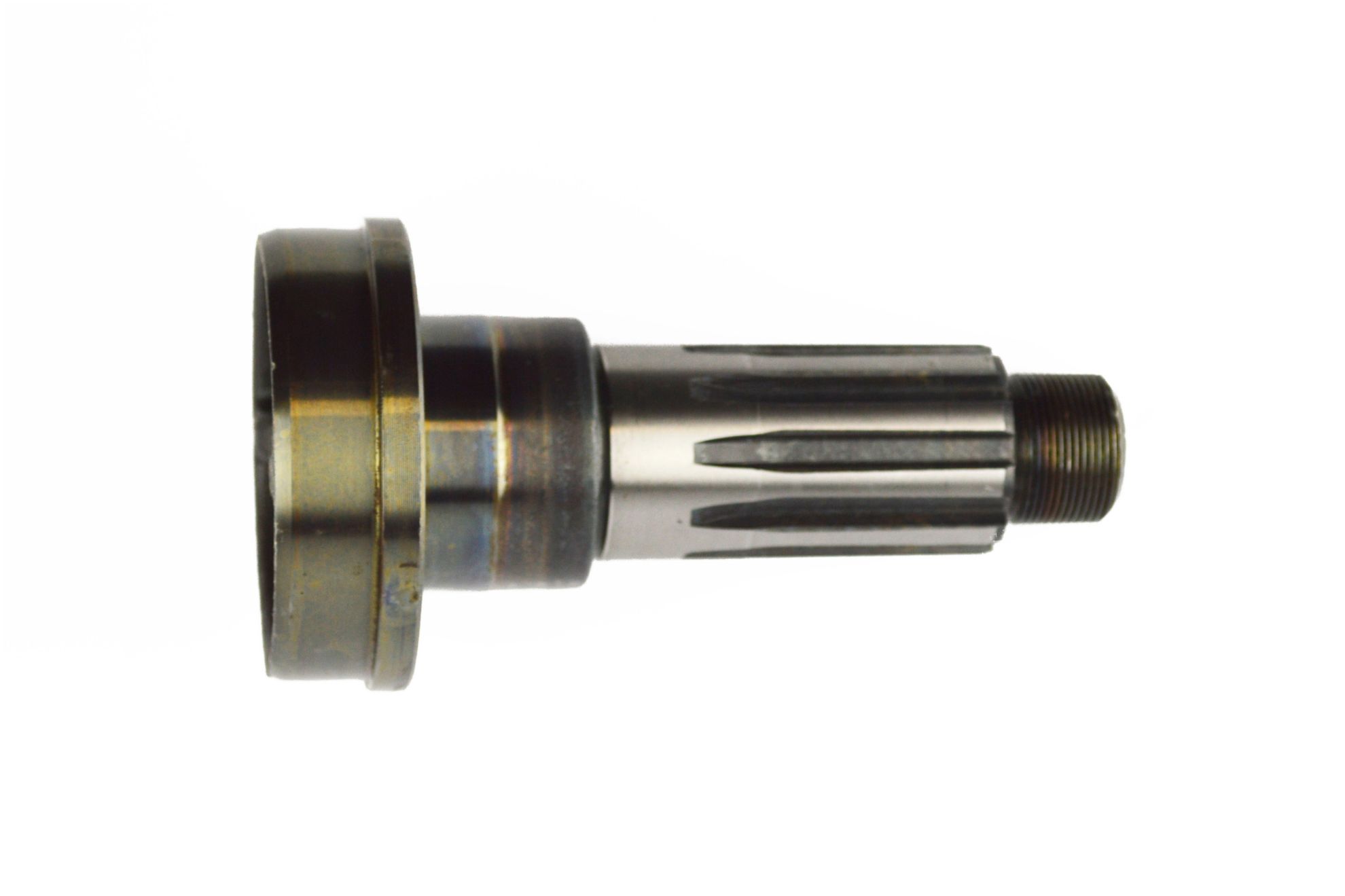

Spicer Drive Shaft Midship Stub Shaft - 3-54-611

Name: Spicer Drive Shaft Midship Stub Shaft - 3-54-611
SKU: 3-54-611
Availability: OutOfStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-54-611

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1410
Material	Steel
Thread Size	1.000-20
Style	2
Prop 65	NO
Spline O.D.	1.375
Spline Length (L) In	1.688
Bearing Diameter (Min)	1.3779
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	1.719
Shoulder Length (G) In.	1.125
Spline End To Brg Shoulder (Y)	2.656
Number of Splines	10
Fits Tube Diameter	3.000
Involute	N
Fits Tube Wall	.083
Butt Diameter	2.845
Bearing Diameter (C) In.	1.378
Bearing Diameter (Max)	1.3784
Spline End To Weld (K) In.	4.000
Country of Origin	MX
Condition	New
