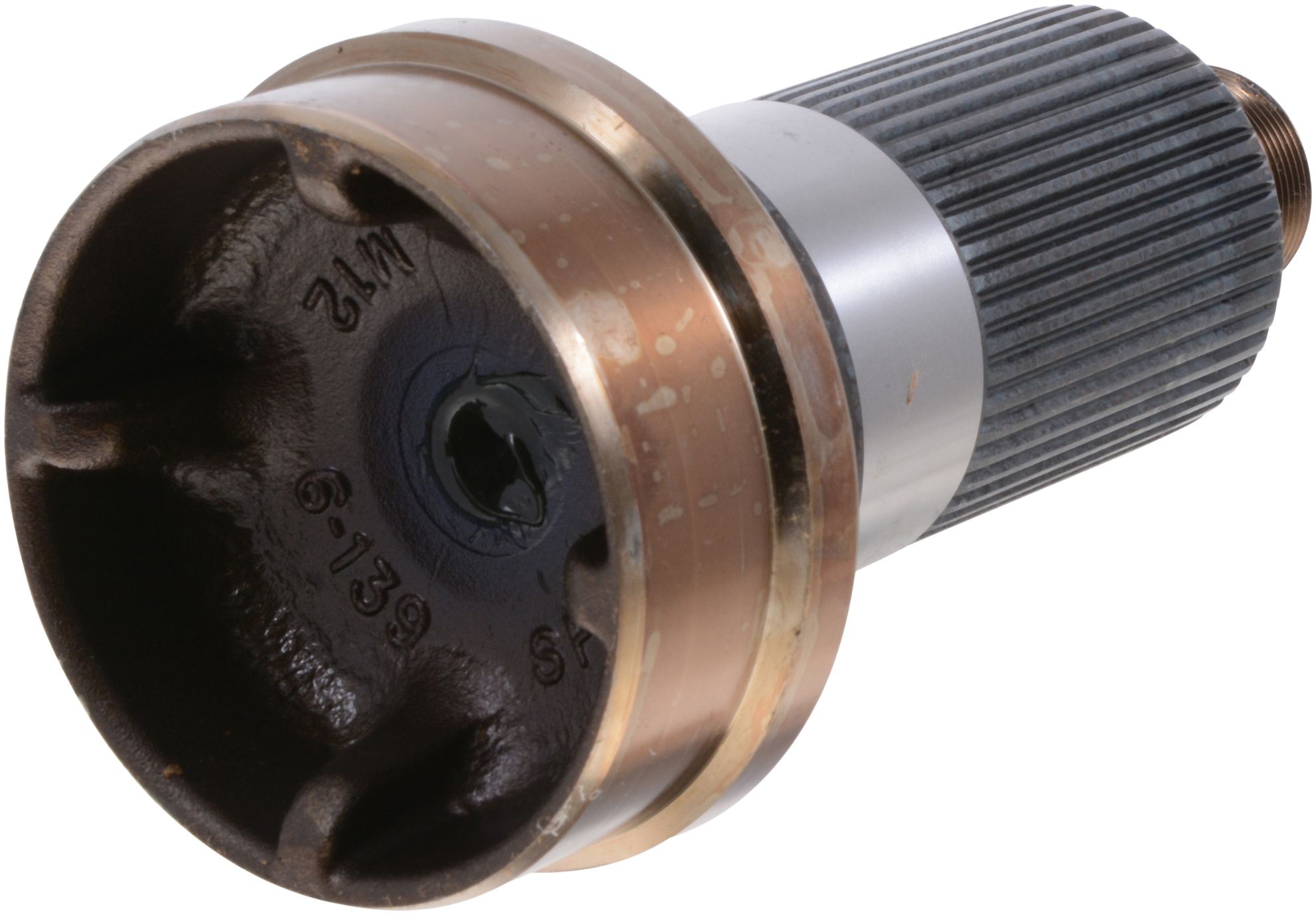

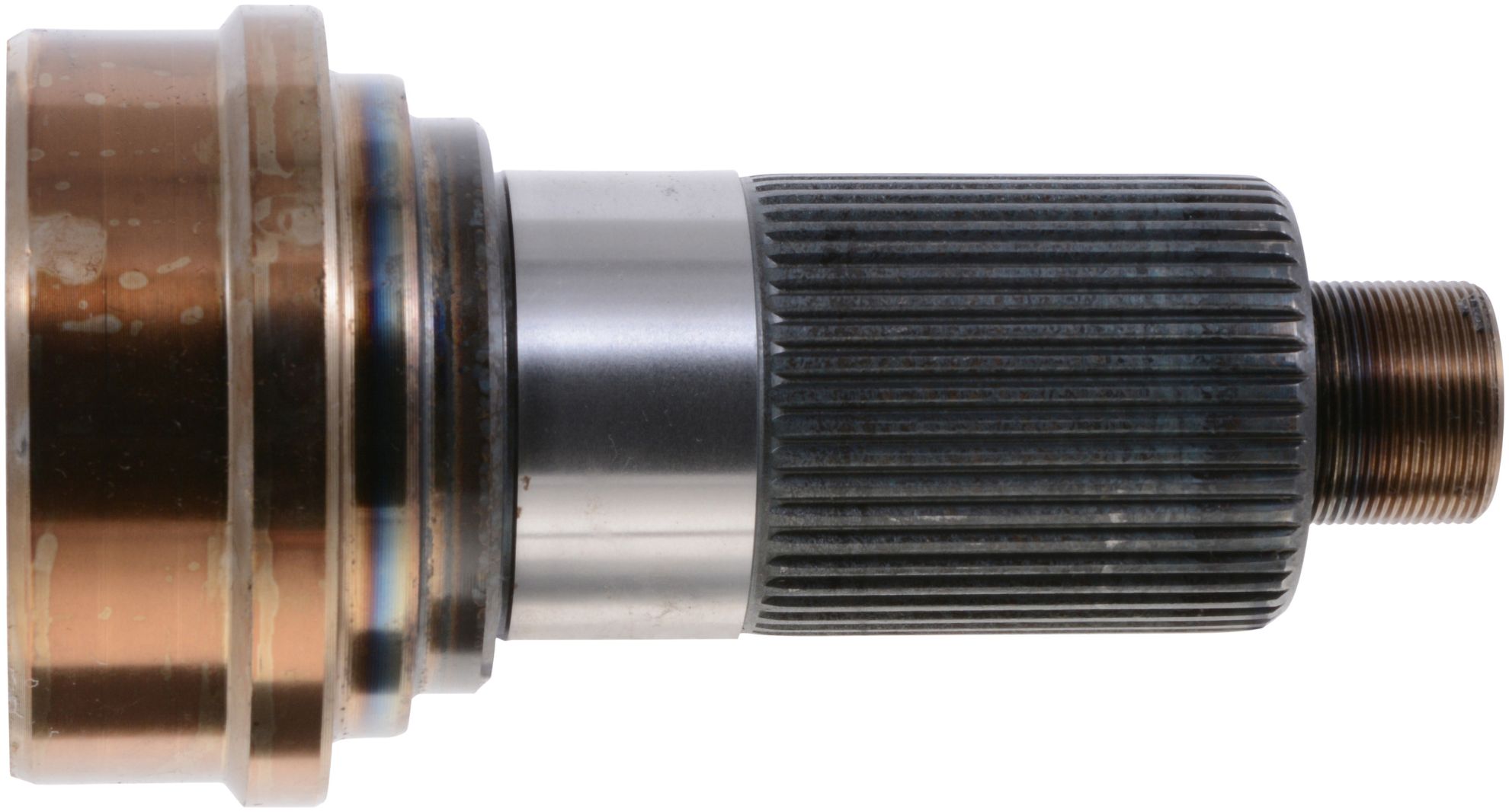

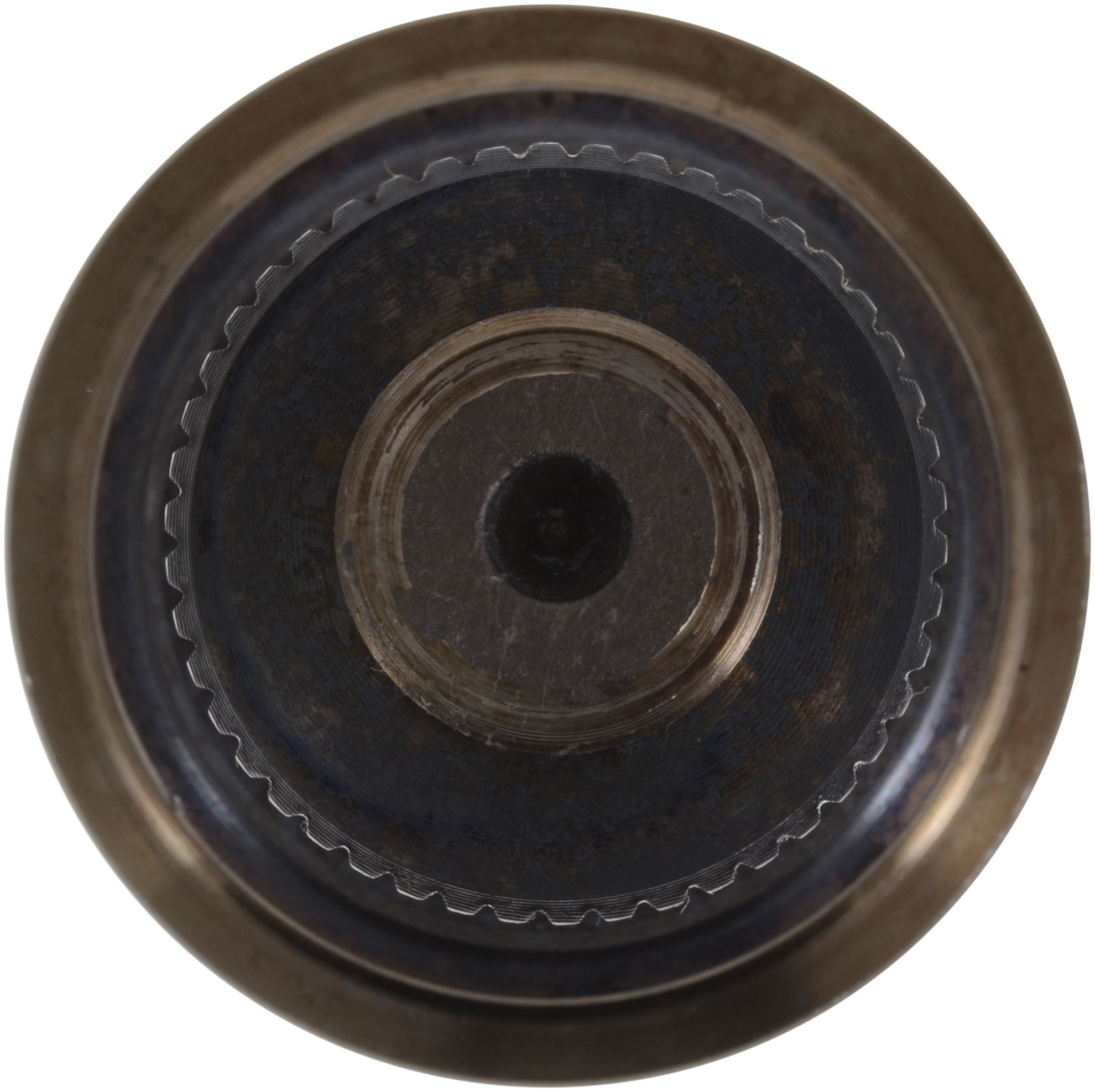

Spicer Drive Shaft Midship Stub Shaft - 6.3-53-21

Name: Spicer Drive Shaft Midship Stub Shaft - 6.3-53-21
SKU: 6.3-53-21
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 6.3-53-21

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1760
Material	Steel
Thread Size	1.250-18
Style	2
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Prop 65	Yes
Spline O.D.	2.350
Fits Tube Diameter	4.000
Involute	Y
Fits Tube Wall	.165
Butt Diameter	3.743
Bearing Diameter (C) In.	2.362
Bearing Diameter (Max)	2.3622
Spline End To Weld (K) In.	5.312
Spline Length (L) In	2.625
Bearing Diameter (Min)	2.3617
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.875
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	4.000
Number of Splines	46 I
Country of Origin	US
Condition	New
