Spicer Drive Shaft Midship Stub Shaft - 90-53-11

Name: Spicer Drive Shaft Midship Stub Shaft - 90-53-11
SKU: 90-53-11
Availability: InStock

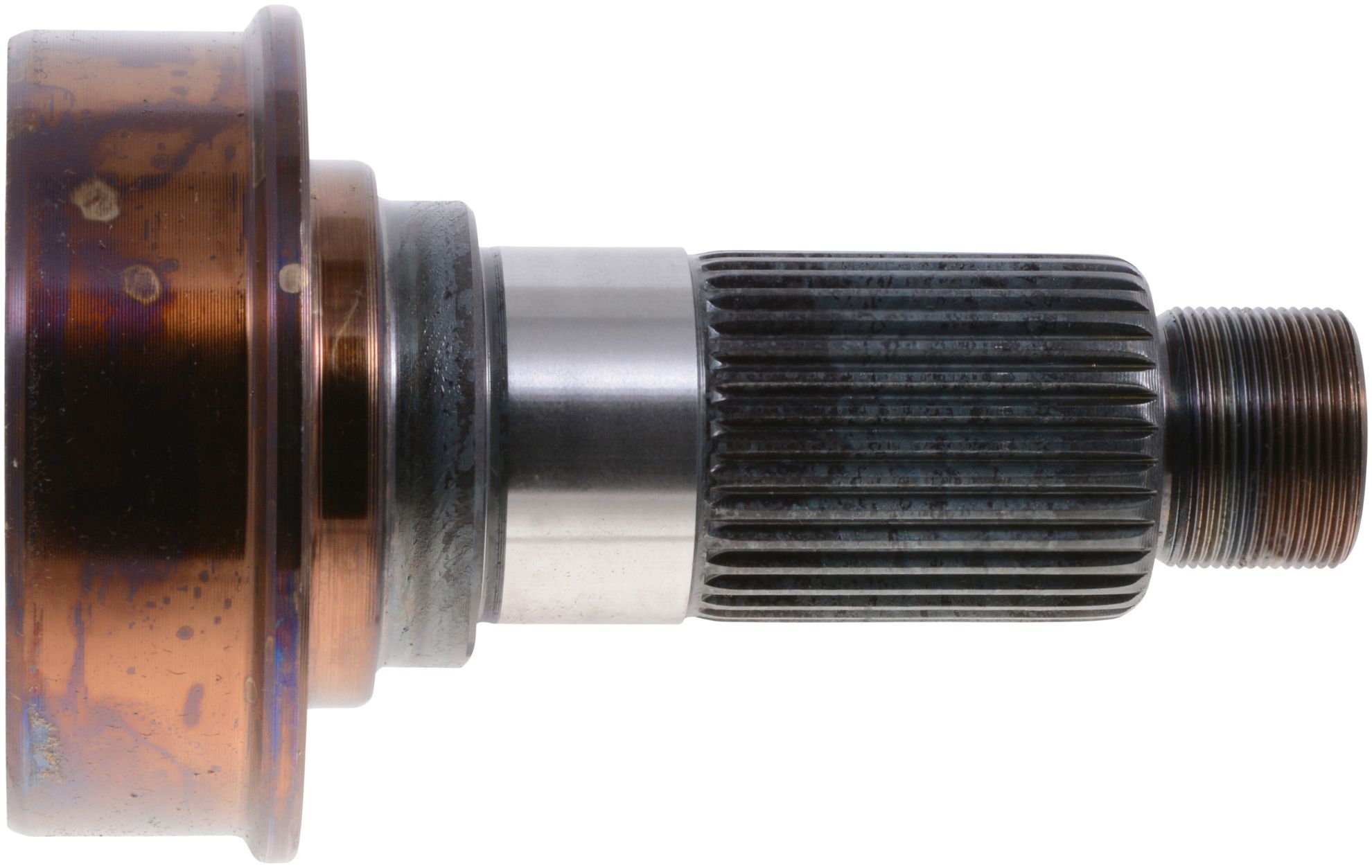

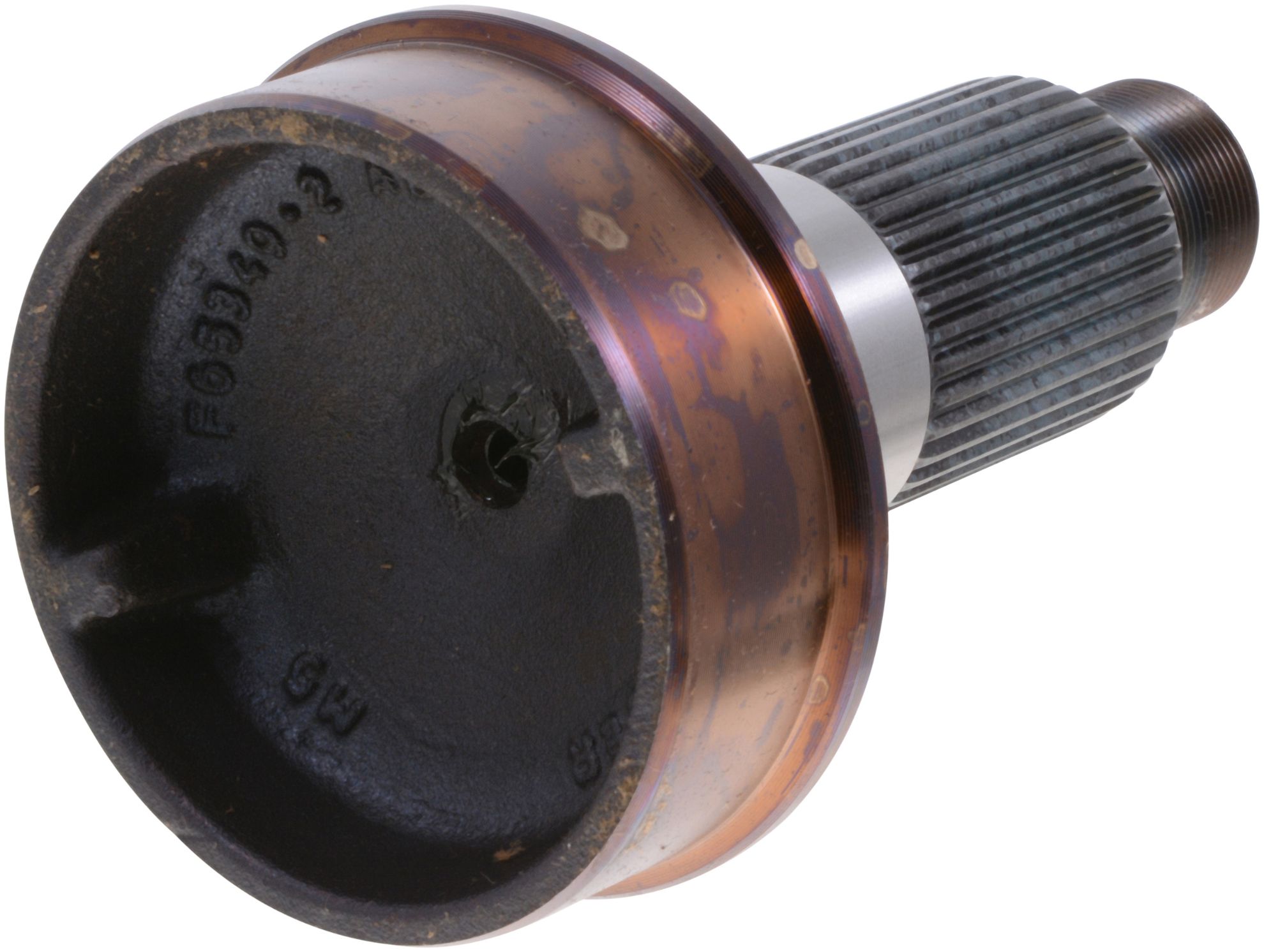

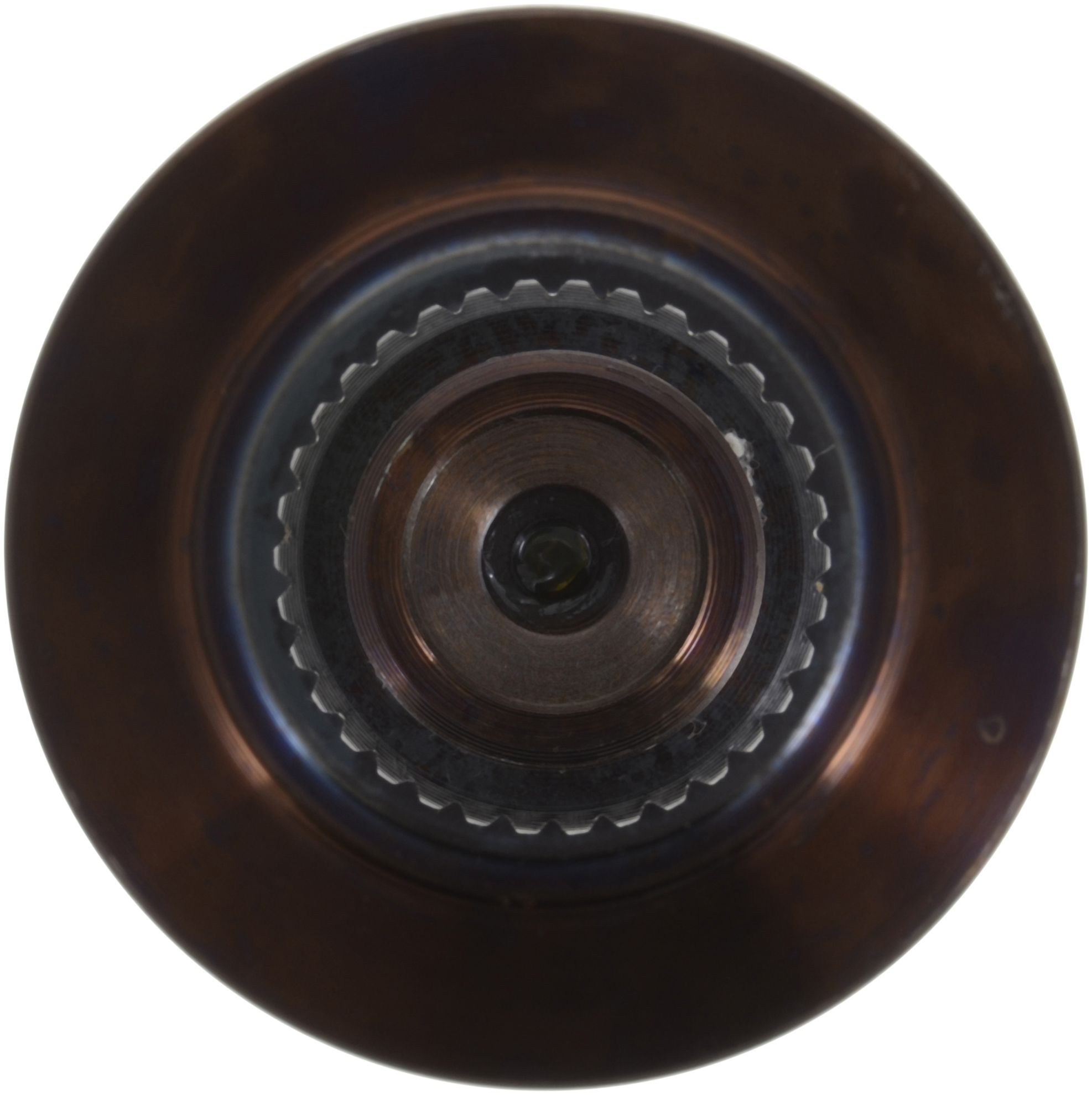

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 90-53-11

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Spline O.D.	1.750
Fits Tube Diameter	4.000
Involute	Y
Fits Tube Wall	.259
Butt Diameter	3.743
Bearing Diameter (C) In.	1.771
Bearing Diameter (Max)	1.7717
Spline End To Weld (K) In.	4.219
Spline Length (L) In	2.000
Bearing Diameter (Min)	1.7712
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.188
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	3.125
Number of Splines	34 I
Series	SPL90
Material	Steel
Thread Size	1.250-18
Style	2
Country of Origin	US
Condition	New
