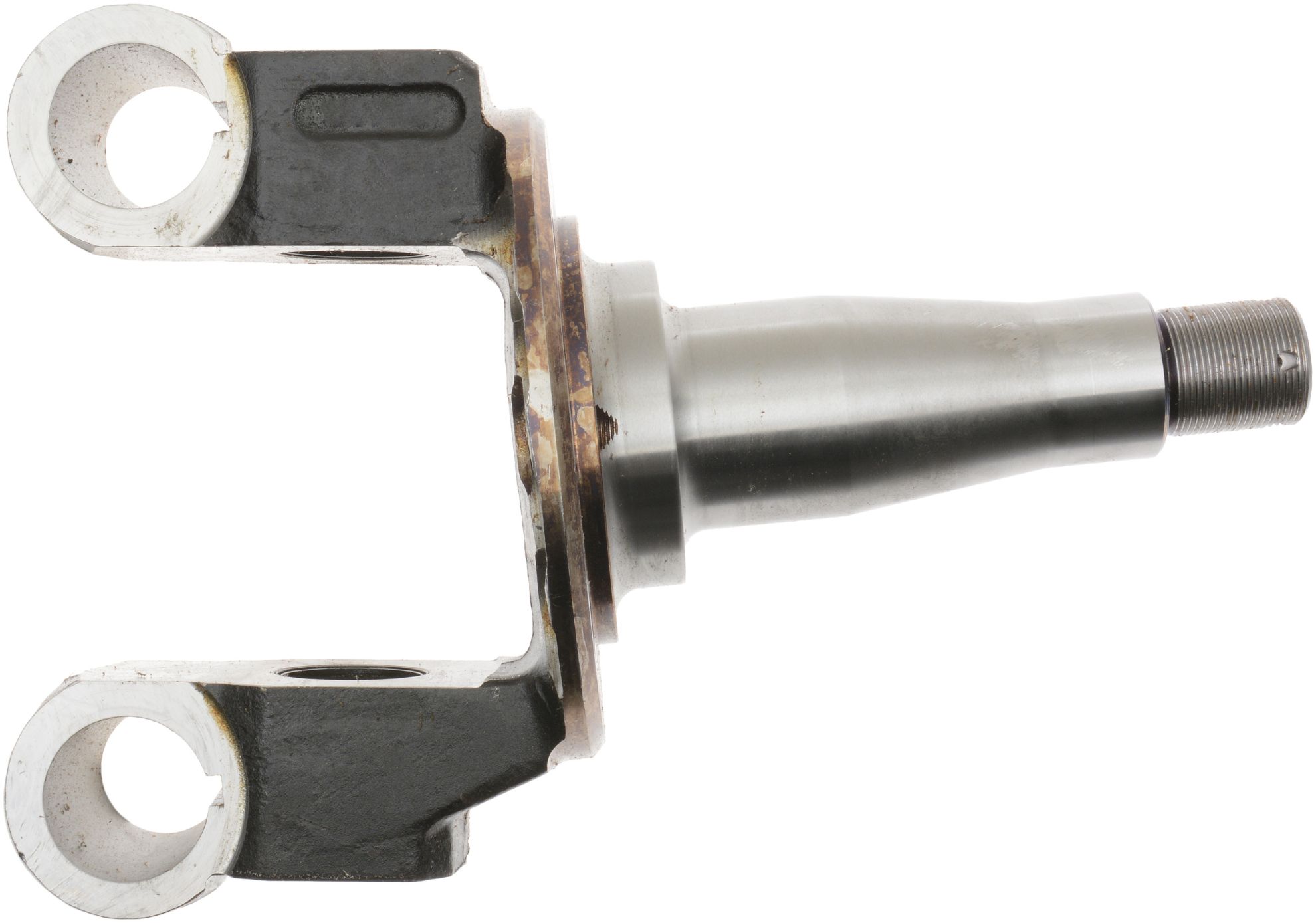

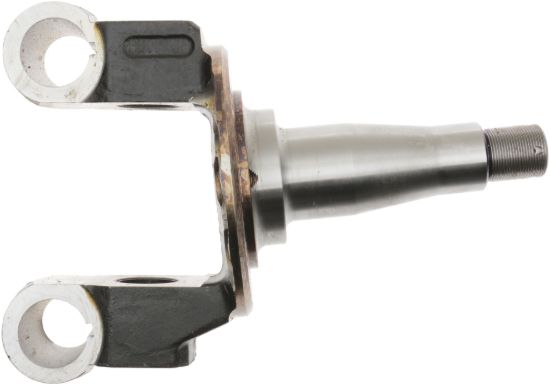

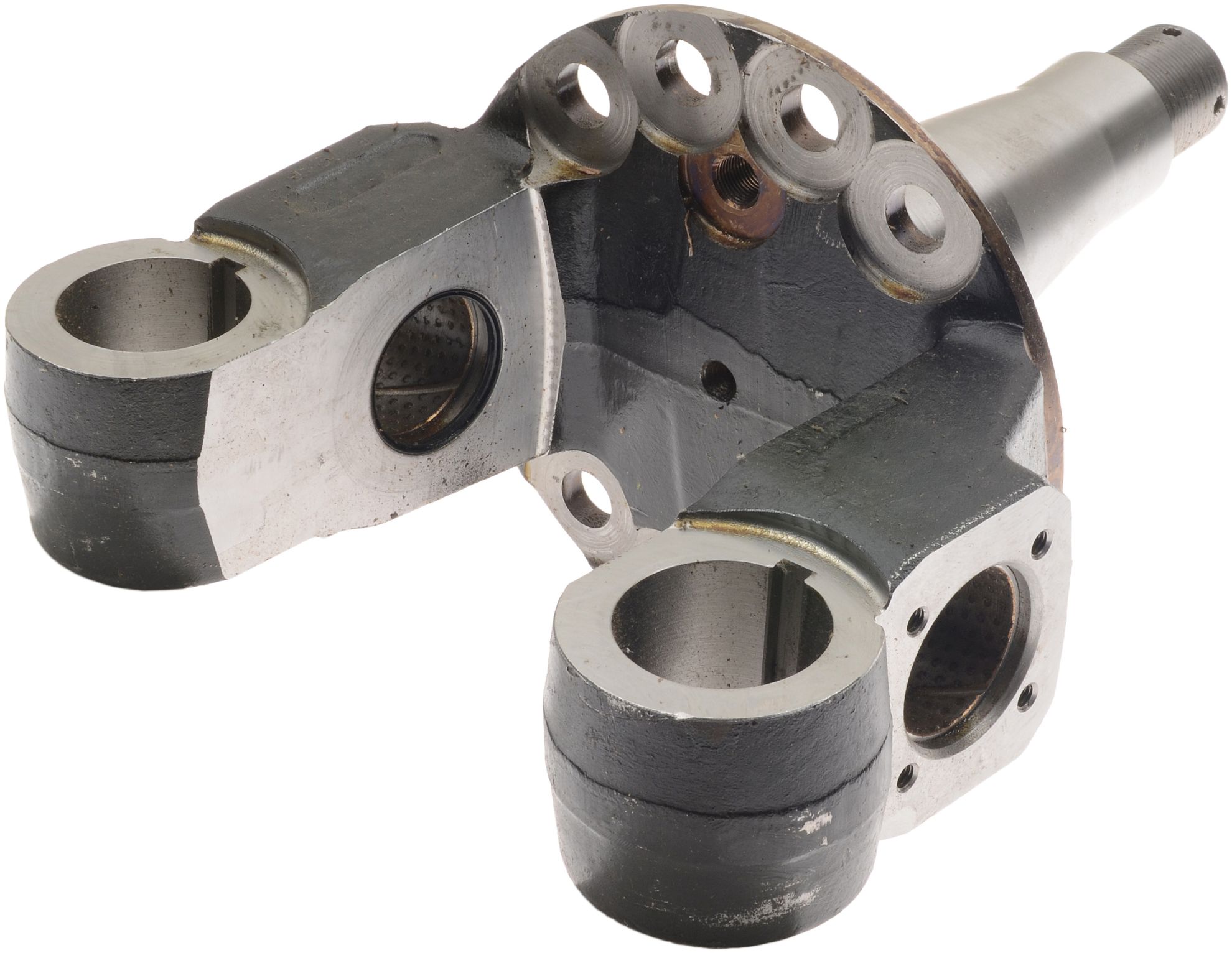

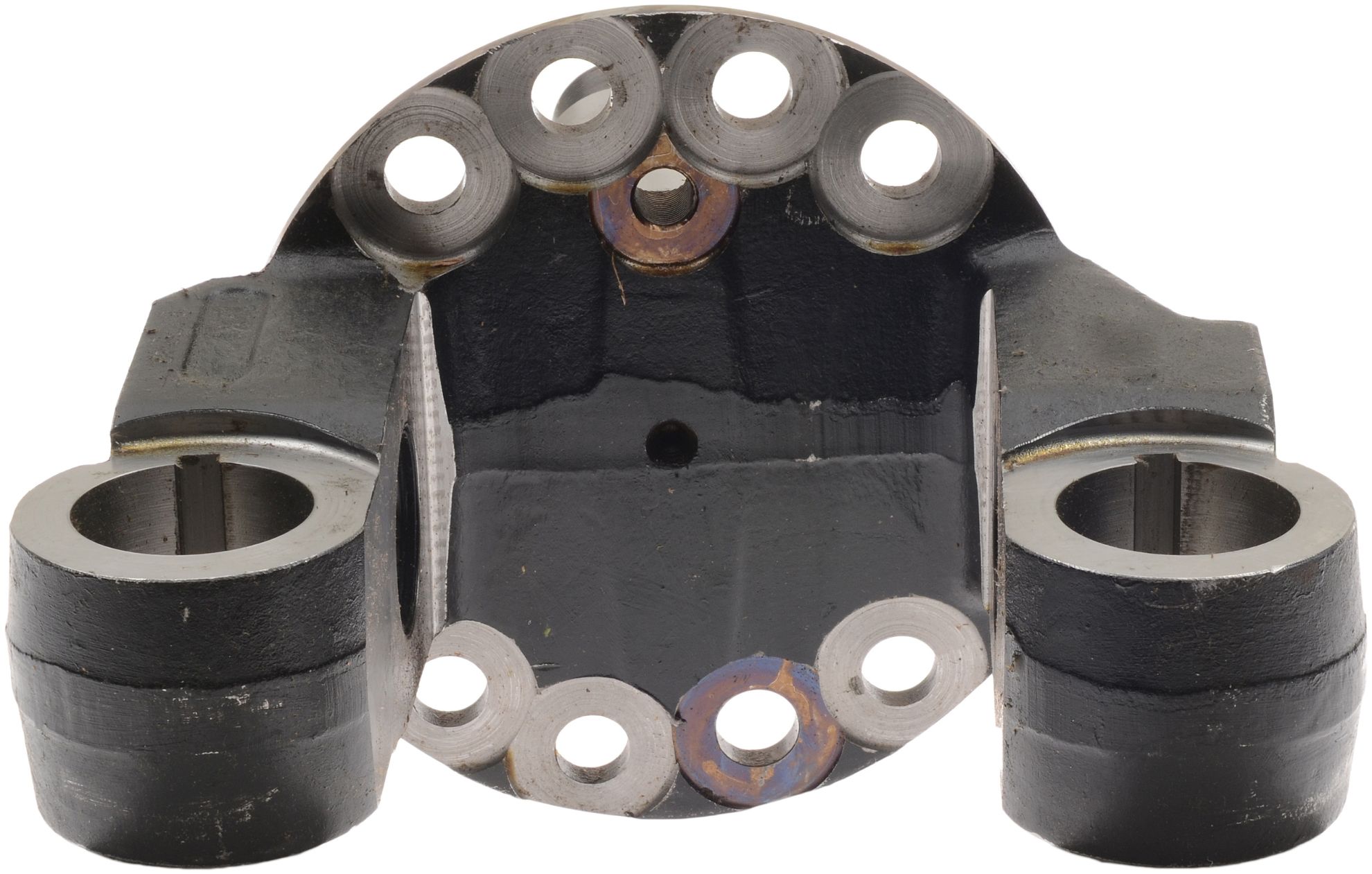

Spicer Steering Knuckle - 817246

Name: Spicer Steering Knuckle - 817246
SKU: 817246
Availability: InStock

Knuckle - Left Hand

Manufacturer: Spicer

Manufacturer part number: 817246

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Do not risk your vehicles performance on knock-off axle components. Dana offers the genuine Spicer medium- and heavy-duty axle components you need, along with the peace of mind that comes from knowing your axle contains only brand new genuine Spicer parts.

Products specifications

Attribute name	Attribute value
Series	EFA20F4, EFA24T2, EFA24T5
Prop 65	NO
Side	Left Hand
Length (Boss To End)	8.040-8.100
Length (Boss To Locknut)	6.450
Spindle Large Diameter	4.373-4.377
Spindle Small Diameter	2.2485-2.2495
Thread Type Wheel End	1.750-12 UN-2A
Sensor Hole Diameter	0.875
Stop Bolt Hole	.3125-18 UNC-2B THD
Caliper Mounting Hole Diameter	0.651-0.666
Caliper Mounting Hole Quantity	10
King Pin Bore Diameter	1.500
Country of Origin	BR
Condition	New
