Spicer Universal Joint - 5-1204X

Name: Spicer Universal Joint - 5-1204X
SKU: 5-1204X
Availability: OutOfStock

Universal Joint Greaseable 1330-F SPEC Series

Manufacturer: Spicer

Manufacturer part number: 5-1204X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.062
OEM Mfg	Spicer
OEM Series	1330SPEC
Bearing Cap Diameter (2)	1.125
Snap Ring Type	External
Bearing Cap Finish	Ground
Coating Type	None
Grease Fitting Location	Side of Cross
Grease Type	N.L.G.I. Grade 2
Model Number	Spicer 1330
Seal Color/Finish	Blue
Seal Material	Rubber
Length B (In)	3.625
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SR(1)Brng Cap to Brng Cap(OSR)	3.625
SR(2)Brng Cap to Brng Cap(OSR)	3.625
Prop 65	Yes
Type	ISR or OSR Style
Converts This Series	1330
To This Series	1330SPEC
Bearing Cap Type	Round with ISR Groove
Snap Ring Included	Yes
Grease Zerk Included	Yes
Pre-Greased	No
Greaseable	Yes
Bearing Cap Type A	ISR or OSR
Bearing Cap Type B	ISR or OSR
Hardware Included	No
Length A (In)	2.767 or 3.625
Length A (mm)	70.282 or 92.100
Length B (mm)	92.100
Mounting Hardware Included	No

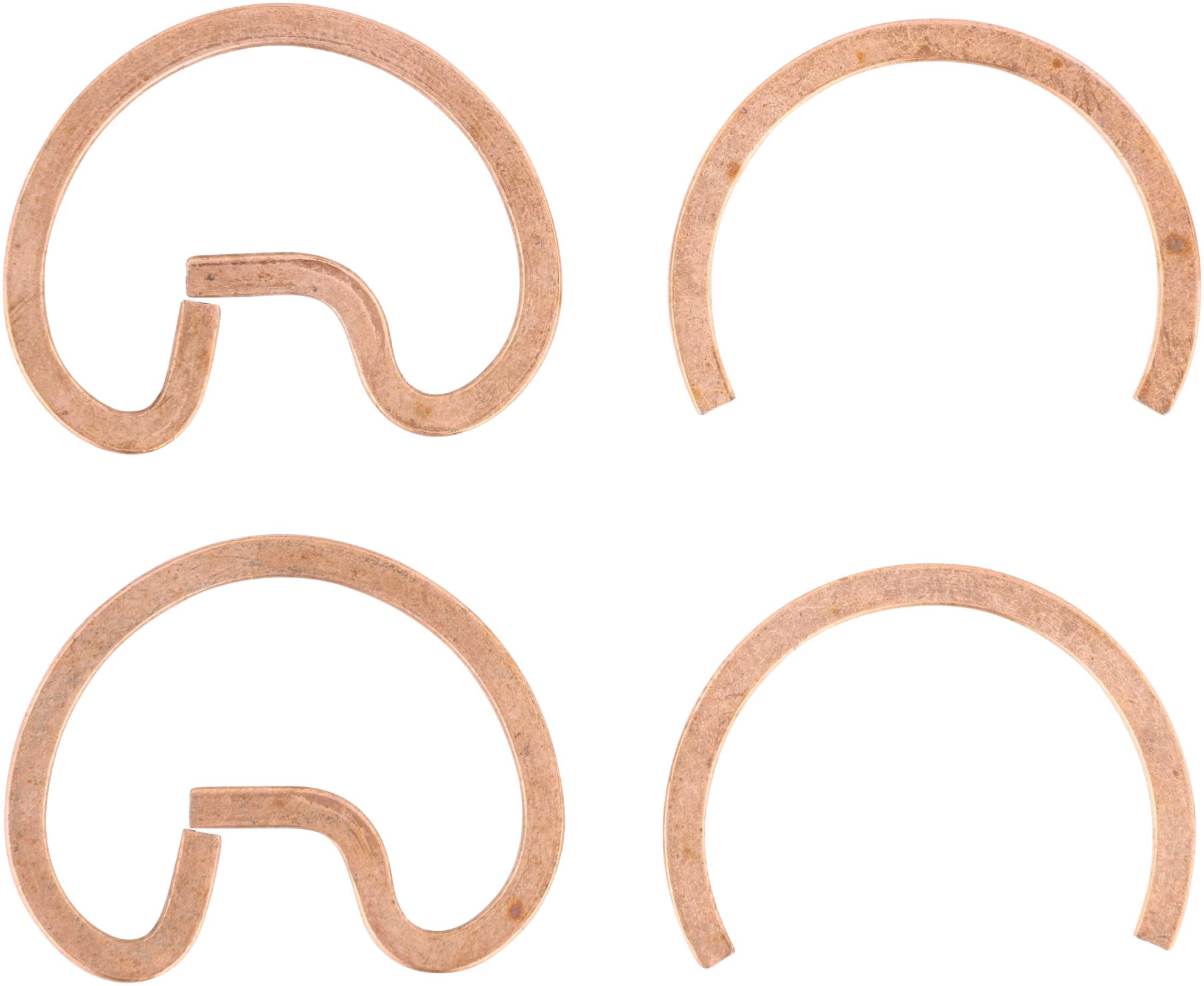

Notes	Includes Inside and Outside Snap Rings
Distance Btw Snap Ring Grooves	2.767
Bearing Cap Diameter A (mm)	26.975
Bearing Cap Diameter B (mm)	28.575
Distance Btw Snap Ring Grooves (ISR) (2)	2.767
Country of Origin	US
Condition	New
