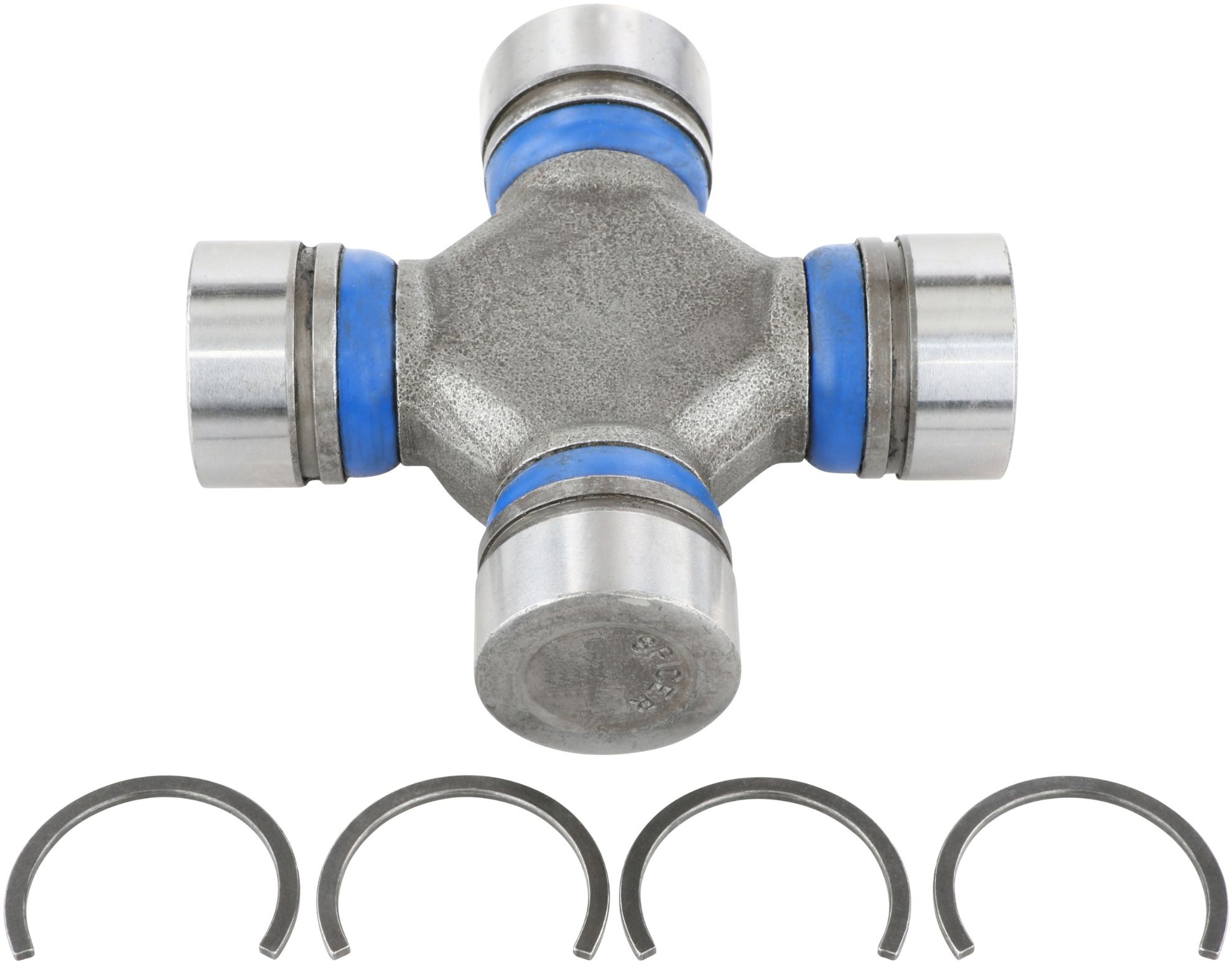

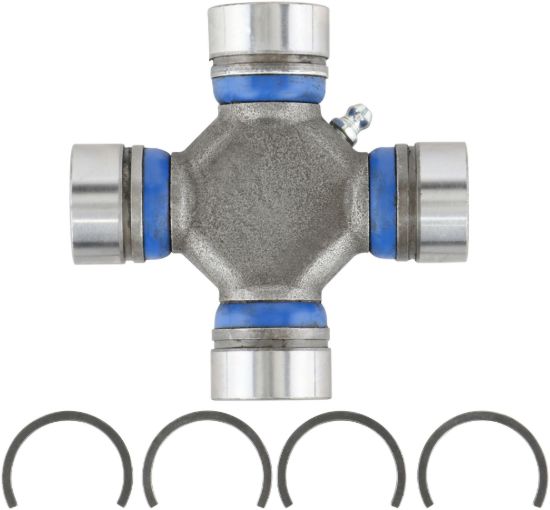

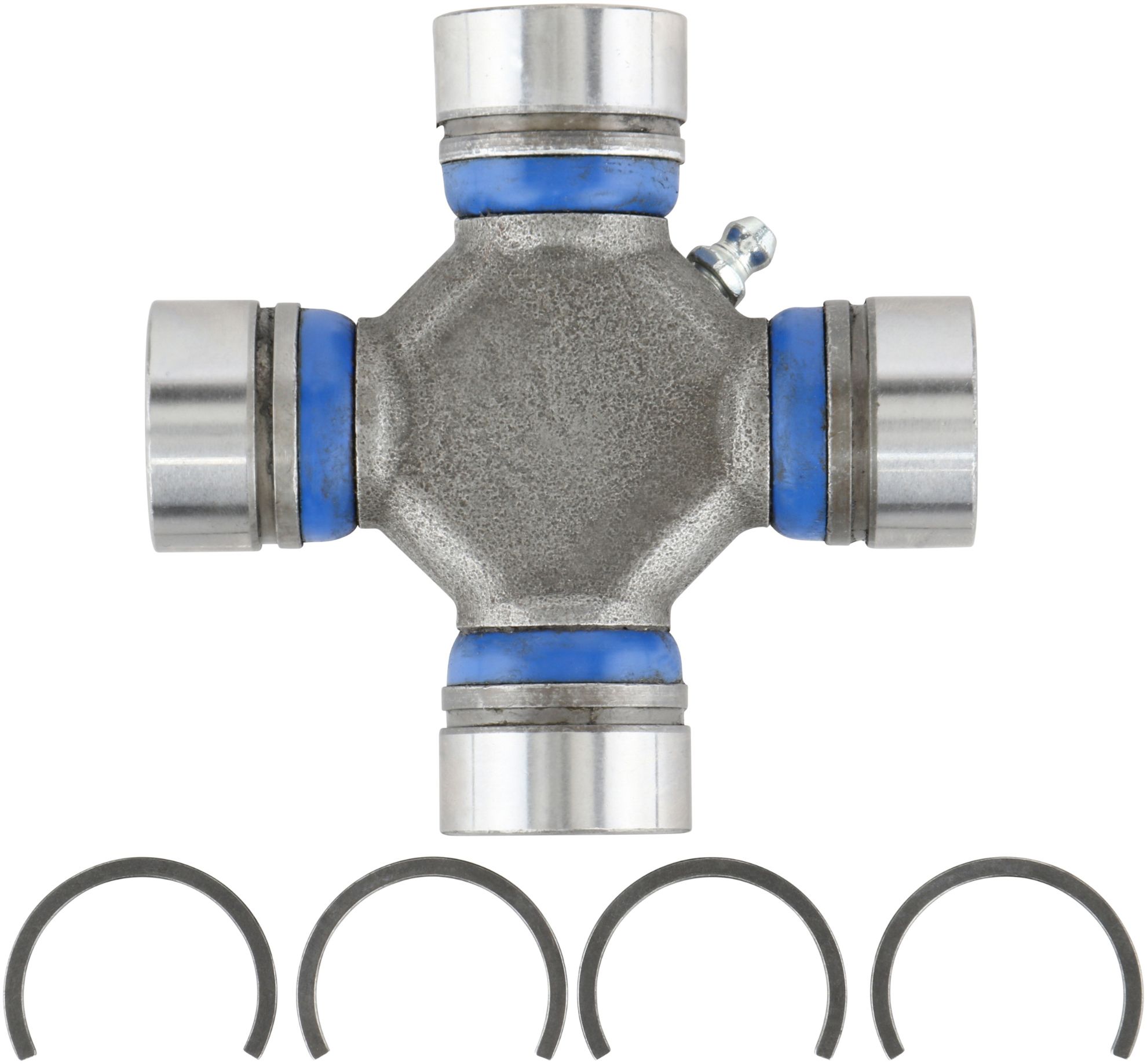

Spicer Universal Joint - 5-1309X

Name: Spicer Universal Joint - 5-1309X
SKU: 5-1309X
Availability: InStock

Universal Joint Greaseable 7290 Series Inside Snap Ring (ISR)

Manufacturer: Spicer

Manufacturer part number: 5-1309X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.125
OEM Mfg	Detroit
OEM Series	7290
Type	ISR Style
Bearing Cap Diameter (2)	1.125
Bearing Cap Type	Round with ISR Groove
Snap Ring Type	Internal
Bearing Cap Finish	Ground
Coating Type	None
Grease Fitting Location	Side of Cross
Grease Type	N.L.G.I. Grade 2
Model Number	DETROIT 7290
Seal Color/Finish	Blue
Seal Material	Rubber
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
Length A (In)	2.625
Length B (In)	2.625
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Prop 65	Yes
Snap Ring Included	Yes
Grease Zerk Included	Yes
Pre-Greased	No
Greaseable	Yes
Hardware Included	No
Length A (mm)	66.675
Length B (mm)	66.675
Mounting Hardware Included	No
Distance Btw Snap Ring Grooves	2.625
Bearing Cap Diameter A (mm)	28.575
Bearing Cap Diameter B (mm)	28.575
Distance Btw Snap Ring Grooves (ISR) (2)	2.625
Country of Origin	US
Condition	New
