Wiseco Engine Piston - 70003XS

Name: Wiseco Engine Piston - 70003XS
SKU: 70003XS
Price: 131.10 USD
Availability: OutOfStock

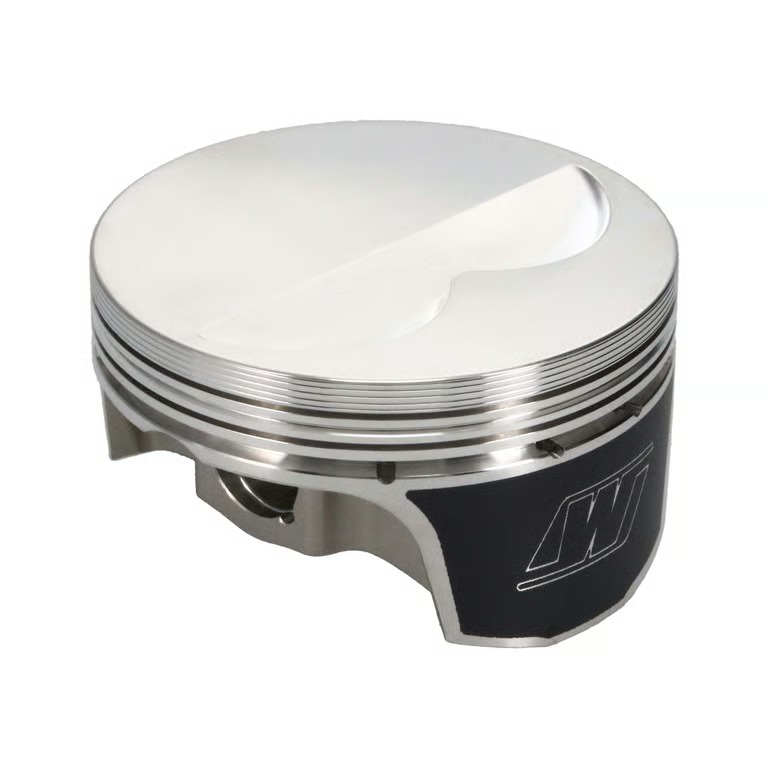

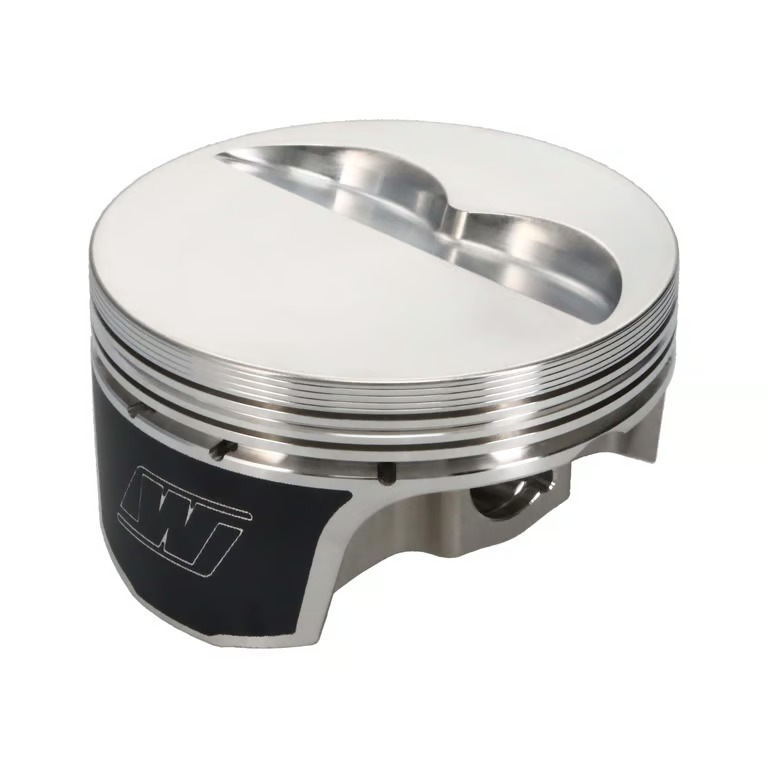

Piston, Chevrolet, Small Block, 4.125 in. Bore, RED Series, Set of 1

Manufacturer: Wiseco

Manufacturer part number: 70003XS

$131.10

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Application: Chevrolet Small Block

Products specifications

Attribute name	Attribute value
Product Series	RED Series
Bore Diameter	4.125
Stroke	3.480
Rod Length	6.000
Compression Height	1.250
Piston Volume	-6.60
Material	2618
Skirt Coating	Yes
Forging Type	Strutted
Piston Quantity	1
Ring Set Included	Yes
Top Compression Ring Thickness	1.20
Second Compression Ring Thickness	1.20
Oil Ring Thickness	3.00
Wrist Pin Included	Yes
Wrist Pin Material	5115
Wrist Pin Style	Floating
Wrist Pin Outer Diameter	0.927
Product Type	Engine Piston
Category Hierarchy	Auto>Pistons>Individual Pistons>Domestic>RED Series
Prop 65 - Short Label	prop65warninglabel.jpg
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
EBAY Category ID	33623
Country of Origin	US
Condition	New
