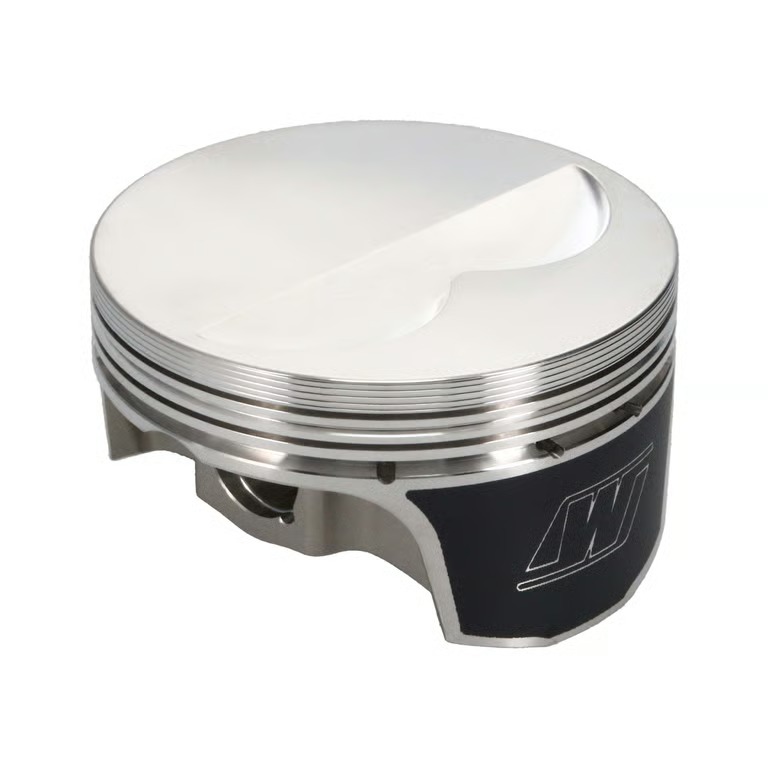

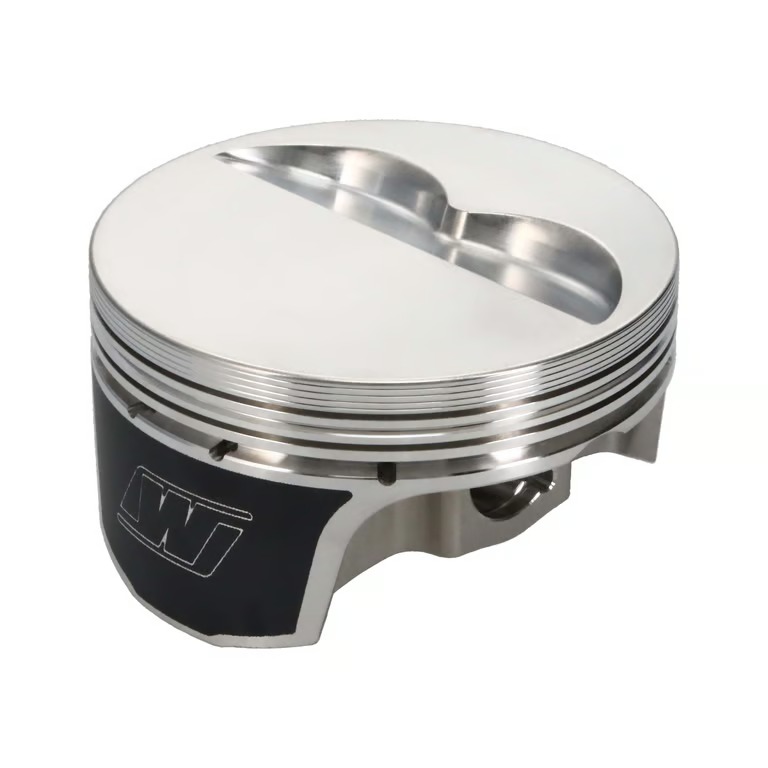

Wiseco Engine Piston - 70005X1

Name: Wiseco Engine Piston - 70005X1
SKU: 70005X1
Price: 131.10 USD
Availability: OutOfStock

Piston, Chevrolet, Small Block, 4.135 in. Bore, RED Series, Set of 1

Manufacturer: Wiseco

Manufacturer part number: 70005X1

$131.10

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Application: Chevrolet Small Block

Products specifications

Attribute name	Attribute value
Prop 65 Yes/No	Yes
EBAY Category ID	33623
Product Series	RED Series
Bore Diameter	4.135
Stroke	3.750
Rod Length	6.000
Compression Height	1.125
Piston Volume	-6.60
Piston Quantity	1
Ring Set Included	Yes
Top Compression Ring Thickness	1.20
Second Compression Ring Thickness	1.20
Forging Type	Strutted
Skirt Coating	Yes
Material	2618
Oil Ring Thickness	3.00
Wrist Pin Included	Yes
Wrist Pin Material	5115
Wrist Pin Style	Floating
Wrist Pin Outer Diameter	0.927
Product Type	Engine Piston
Category Hierarchy	Auto>Pistons>Individual Pistons>Domestic>RED Series
Prop 65 - Short Label	prop65warninglabel.jpg
Prop 65 (C, R or CR)	CR
Country of Origin	US
Condition	New
