Wiseco Engine Piston - 70013X3

Name: Wiseco Engine Piston - 70013X3
SKU: 70013X3
Price: 139.99 USD
Availability: OutOfStock

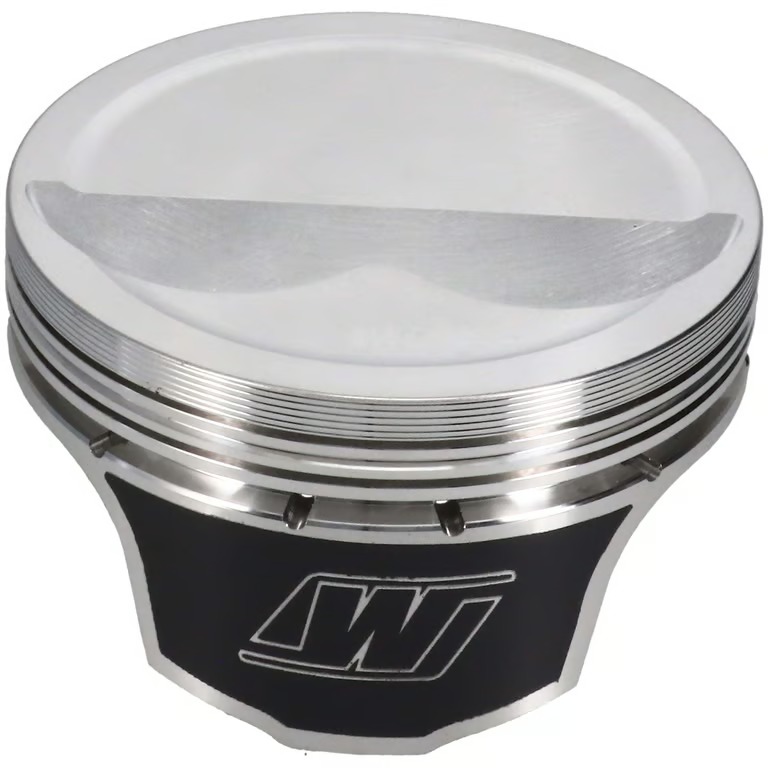

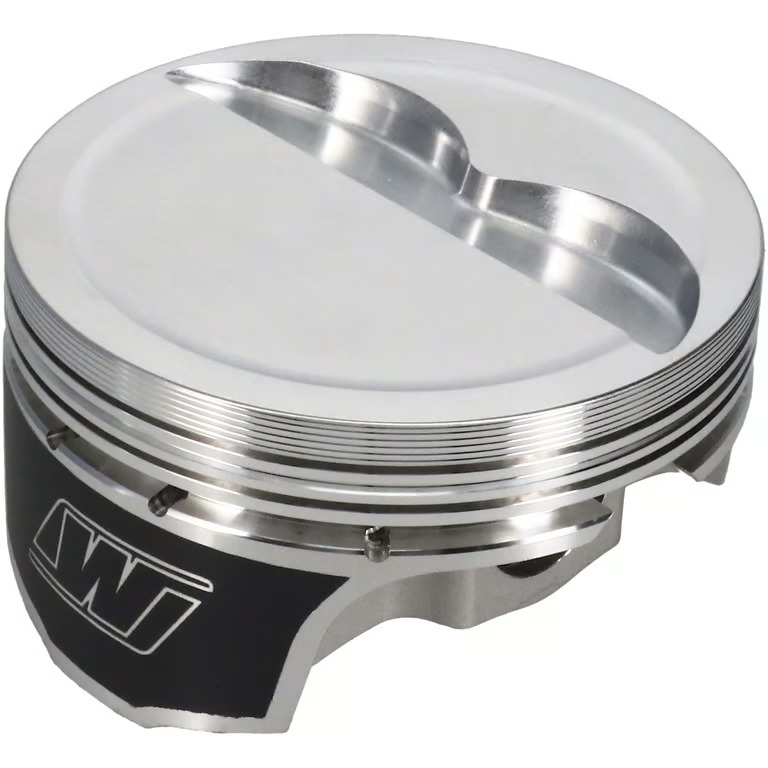

Piston, Chevrolet, Small Block 350, 4.030 in. Bore, RED Series, Set of 1.

Manufacturer: Wiseco

Manufacturer part number: 70013X3

$139.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Application: Chevrolet Small Block 350

Products specifications

Attribute name	Attribute value
Top Ring Material	Steel
Second Compression Ring Thickness	1.20
Second Ring Material	Ductile Iron
Oil Ring Thickness	3.00
Oil Ring Tension	Standard
Third Ring Material	Stainless Steel
Wrist Pin Included	Yes
Wrist Pin Part Number	S736
Wrist Pin Material	5115
Wrist Pin Style	Floating
Wrist Pin Outer Diameter	0.927
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	W5595
Wrist Pin Retainer Quantity	2
Wrist Pin Retainer Style	Wire Lock
Wrist Pin Retainer Material	Chrome Silicone
Wrist Pin Retainer Thickness	0.0720
Cylinder Head	23 Degree
Product Type	Engine Piston
Category Hierarchy	Auto>Pistons>Individual Pistons>Domestic>RED Series
Prop 65 - Short Label	prop65warninglabel.jpg
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
EBAY Category ID	33623
Product Series	RED Series
Bore Diameter	4.030
Stroke	3.750
Rod Length	6.000
Compression Height	1.125
Piston Volume	9.00
Material	2618
Skirt Coating	Yes
Forging Type	Strutted
Piston Quantity	1
Wrist Pin Quantity	1
Ring Set Included	Yes
Ring Set Part Number	4032GFX
Ring Quantity	1
Top Compression Ring Thickness	1.20
Country of Origin	US
Condition	New
