Wiseco Engine Piston - 70076X45

Name: Wiseco Engine Piston - 70076X45
SKU: 70076X45
Price: 131.10 USD
Availability: OutOfStock

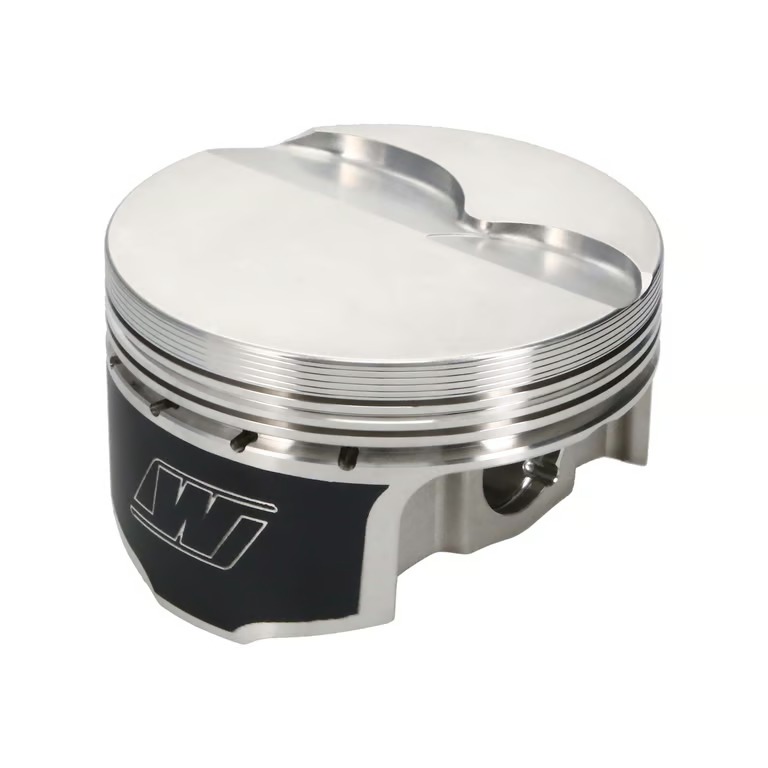

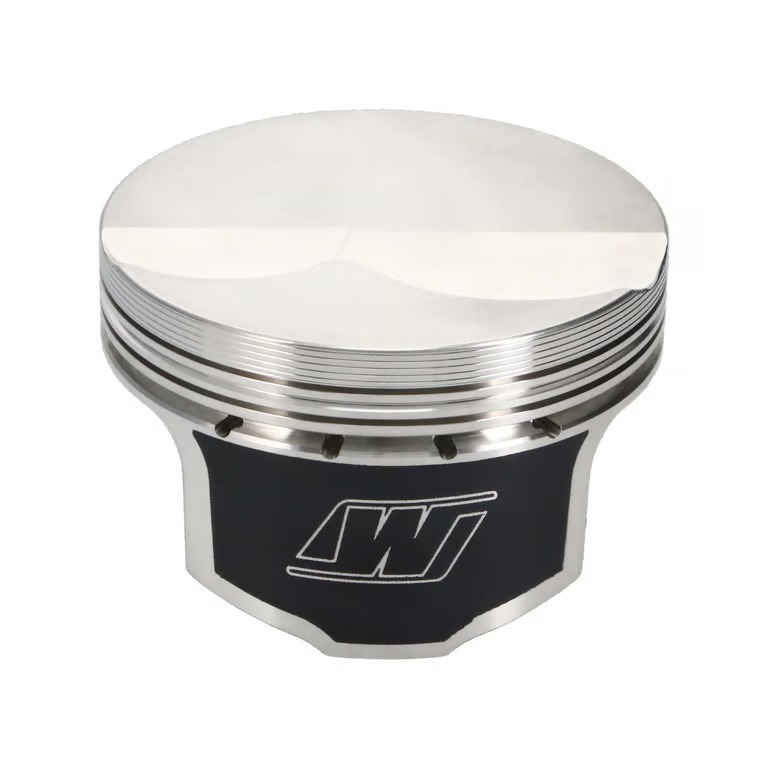

Piston, Chevrolet, LS, 4.045 in. Bore, RED Series, Set of 1.

Manufacturer: Wiseco

Manufacturer part number: 70076X45

$131.10

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Application: Chevrolet LS

Products specifications

Attribute name	Attribute value
Product Series	RED Series
Bore Diameter	4.045
Stroke	3.622
Rod Length	6.125
Compression Height	1.294
Piston Volume	4.00
Material	2618
Skirt Coating	Yes
Forging Type	Strutted
Piston Quantity	1
Wrist Pin Included	Yes
Wrist Pin Part Number	S736
Wrist Pin Material	5115
Wrist Pin Style	Floating
Wrist Pin Outer Diameter	0.927
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	W5595
Wrist Pin Retainer Quantity	2
Wrist Pin Retainer Style	Wire Lock
Wrist Pin Retainer Material	Chrome Silicon
Product Type	Engine Piston
Category Hierarchy	Auto>Pistons>Individual Pistons>Domestic>RED Series
Prop 65 - Short Label	prop65warninglabel.jpg
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
EBAY Category ID	33623
Oil Ring Thickness	3.00
Second Compression Ring Thickness	1.20
Top Compression Ring Thickness	1.20
Ring Quantity	1
Ring Set Part Number	4047GFX
Ring Set Included	Yes
Wrist Pin Quantity	1
Country of Origin	US
Condition	New
