Wiseco 101827 HD/BUELL S1/S3/S3T 2VP DOMED 10:1 CR PISTON K1700

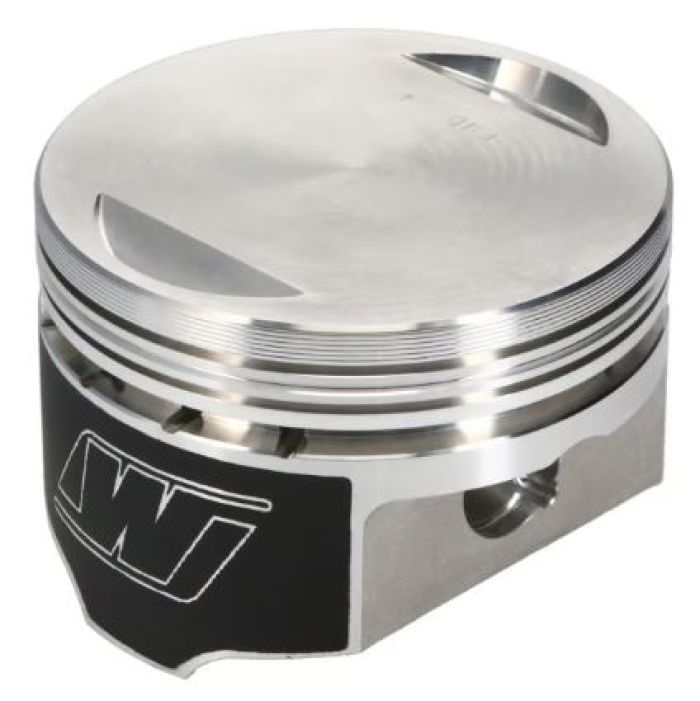

Forged from a high-silicone aluminum alloy to deliver long life and consistent dimensions

Wiseco’s high-tech manufacturing ensures greater operating strength and lower expansion at high temperatures

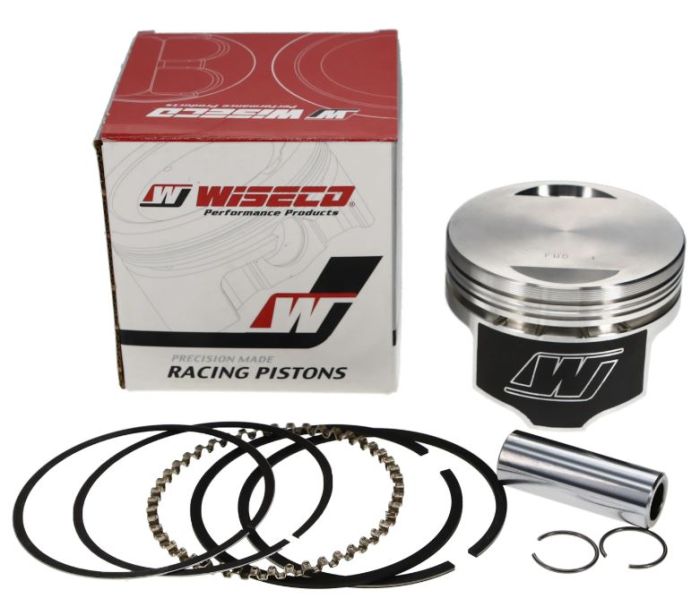

Sold in kits that include two pistons, rings, piston pins and circlips

Include forged pistons with coated skirts, rings, retainer clips and chrome piston pins

Piston kits are available with X-Ring package (.062 top ring, .062 compression ring and .158 oil ring), XC-Ring packages (.039 top ring, .062 compression ring, .158 oil ring) or VM-rings (1.2mm steel, positive twist, gas

nitrided top ring, 1.2mm cast iron, taper under-hook scraper ring and 2.0mm three-piece, flex-vent oil ring with steel chrome-faced rails); VM-rings, X-Rings and XC-Rings will not interchange

X- and XC-rings are identified by PART # in the application chart; X-Ring PART #s end with an “X” and XC-Ring Part #s end with an “XC”

103” kits require cylinder boring; 110” kit requires big-bore cylinders and case boring; X-Ring package (.0472” top ring, .0472” compression ring and .118” oil ring); recalibration required

Pistons are made in the U.S.A.

Manufacturer Part #: K1700
