Wiseco Engine Piston Set - RED0080X7

Name: Wiseco Engine Piston Set - RED0080X7
SKU: RED0080X7
Price: 951.10 USD
Availability: OutOfStock

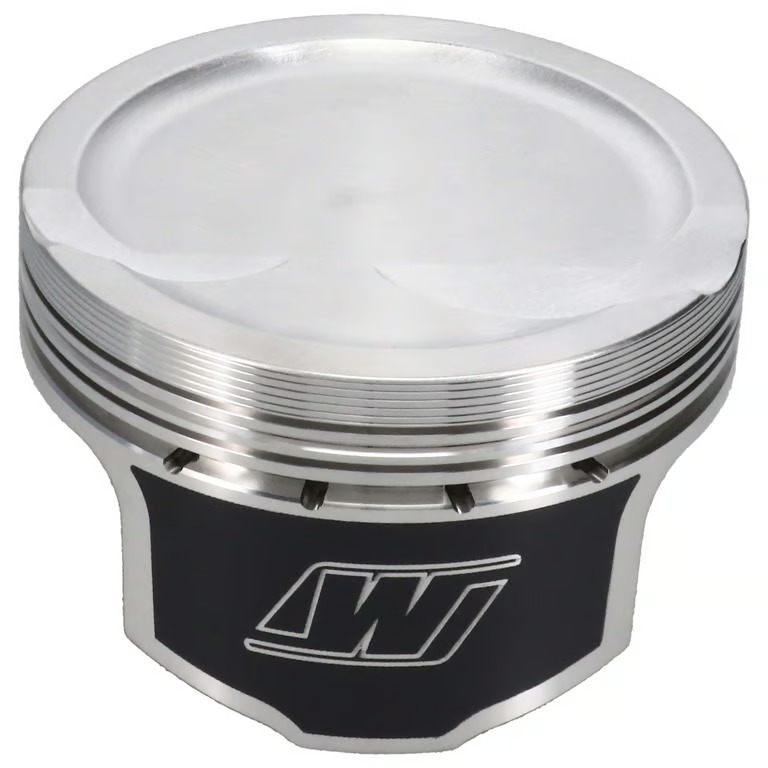

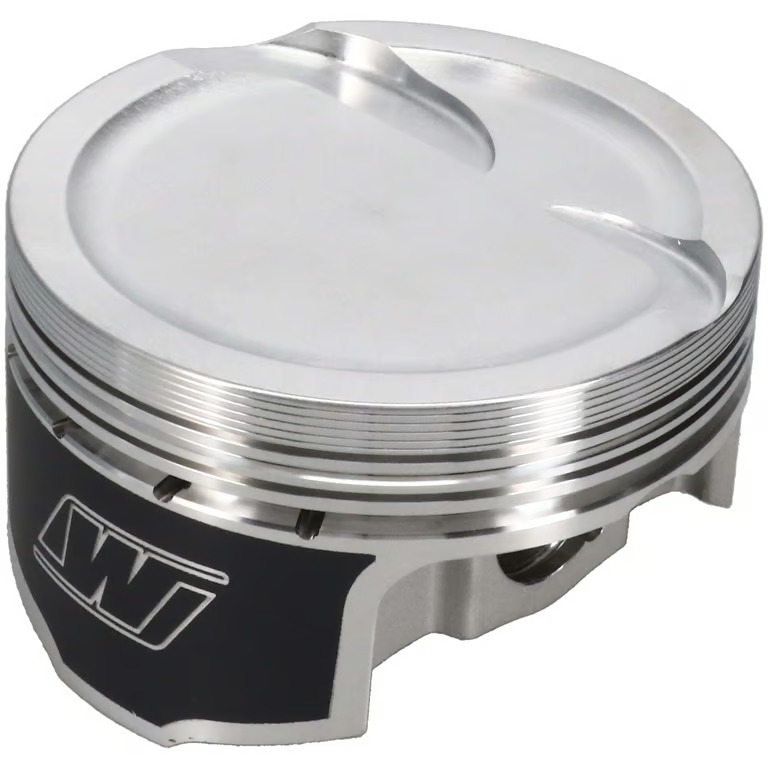

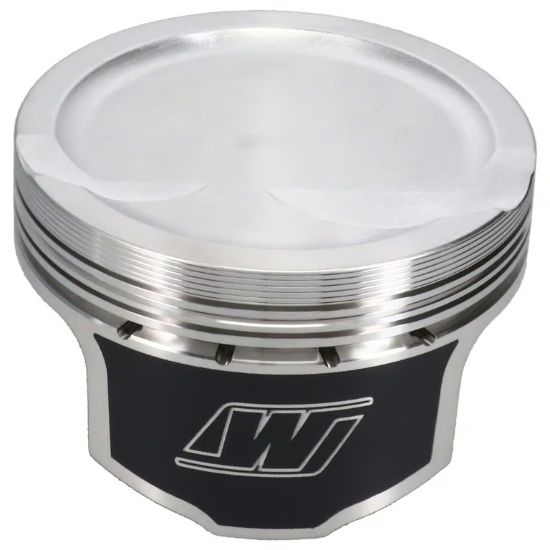

Piston Set, Chevrolet, LS, 4.070 in. Bore, RED Series, Set of 8.

Manufacturer: Wiseco

Manufacturer part number: RED0080X7

$951.10

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Application: Chevrolet LS

Products specifications

Attribute name	Attribute value
Second Ring Material	Ductile Iron
Oil Ring Thickness	3.00
Oil Ring Tension	Standard
Third Ring Material	Stainless Steel
Wrist Pin Included	Yes
Wrist Pin Part Number	S736
Wrist Pin Material	5115
Wrist Pin Style	Floating
Wrist Pin Outer Diameter	0.927
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	W5595
Wrist Pin Retainer Quantity	16
Wrist Pin Retainer Style	Wire Lock
Wrist Pin Retainer Material	Chrome Silicone
Wrist Pin Retainer Thickness	0.0720
Product Type	Engine Piston Set
Category Hierarchy	Auto>Pistons>Piston Kits>Domestic>RED Series
Prop 65 - Short Label	prop65warninglabel.jpg
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
EBAY Category ID	33623
Product Series	RED Series
Bore Diameter	4.070
Stroke	3.622
Rod Length	6.125
Compression Height	1.294
Piston Volume	-15.00
Material	2618
Skirt Coating	Yes
Forging Type	Strutted
Piston Quantity	8
Wrist Pin Quantity	8
Ring Set Included	Yes
Ring Set Part Number	4072GFX
Ring Quantity	8
Top Compression Ring Thickness	1.20
Top Ring Material	Steel
Second Compression Ring Thickness	1.20
Country of Origin	US
Condition	New
