Wiseco Engine Piston Set - RED0089X125

Name: Wiseco Engine Piston Set - RED0089X125
SKU: RED0089X125
Price: 1009.99 USD
Availability: OutOfStock

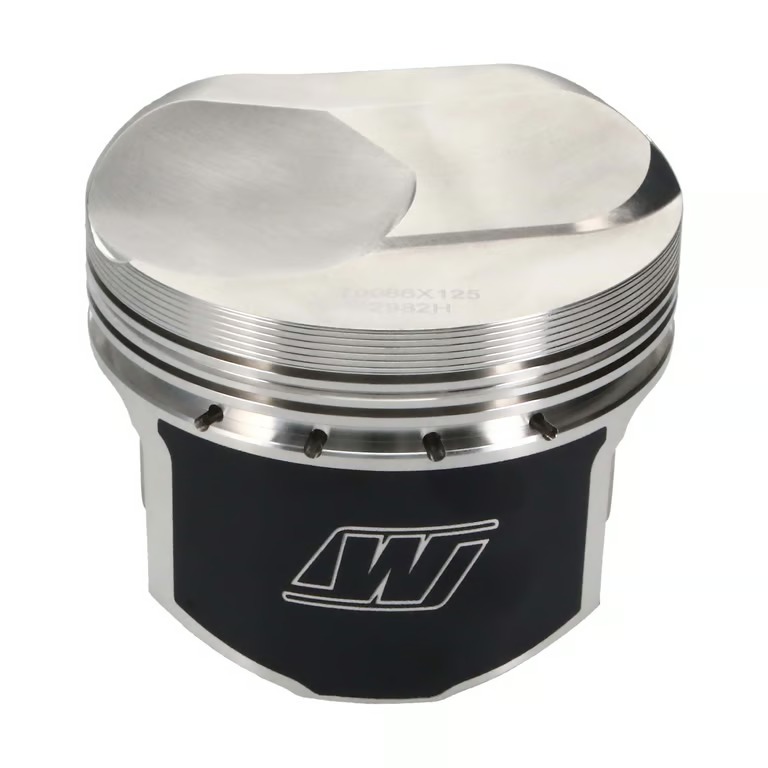

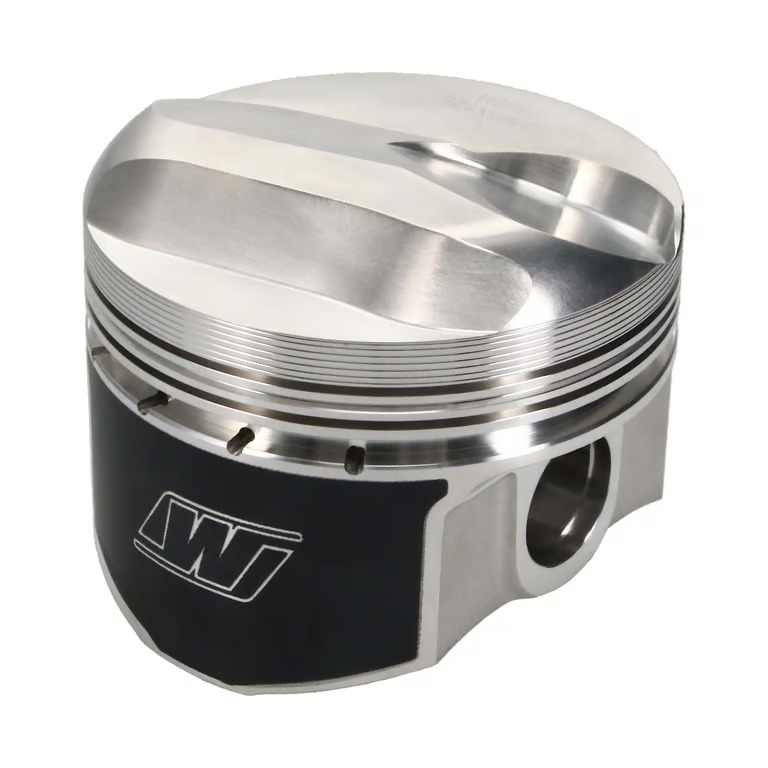

Piston Set, Chevrolet, Big Block, 4.125 in. Bore, RED Series, Set of 8.

Manufacturer: Wiseco

Manufacturer part number: RED0089X125

$1,009.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Application: Chevrolet Big Block

Products specifications

Attribute name	Attribute value
Third Ring Material	Carbon Steel
Wrist Pin Included	Yes
Wrist Pin Part Number	S460
Wrist Pin Material	5115
Wrist Pin Style	Floating
Wrist Pin Outer Diameter	0.990
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	CS25
Wrist Pin Retainer Quantity	16
Wrist Pin Retainer Style	Spiral Lock
Wrist Pin Retainer Material	High Carbon Spring Steel
Wrist Pin Retainer Thickness	0.085
Product Type	Engine Piston Set
Category Hierarchy	Auto>Pistons>Piston Kits>Domestic>RED Series
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
EBAY Category ID	33623
Prop 65 - Short Label	prop65warninglabel.jpg
Product Series	RED Series
Bore Diameter	4.125
Stroke	4.000
Rod Length	6.385
Compression Height	1.395
Piston Volume	38.00
Material	2618
Skirt Coating	Yes
Forging Type	Strutted
Piston Quantity	8
Wrist Pin Quantity	8
Ring Set Included	Yes
Ring Set Part Number	J10001-4125-5
Ring Quantity	8
Top Compression Ring Thickness	0.0640
Top Ring Material	Ductile Iron
Second Compression Ring Thickness	0.0640
Second Ring Material	Iron
Oil Ring Thickness	0.188
Oil Ring Tension	Low
Country of Origin	US
Condition	New
