JE Pistons Engine Piston Kit - 118758

Name: JE Pistons Engine Piston Kit - 118758
SKU: 118758
Price: 910.72 USD
Availability: OutOfStock

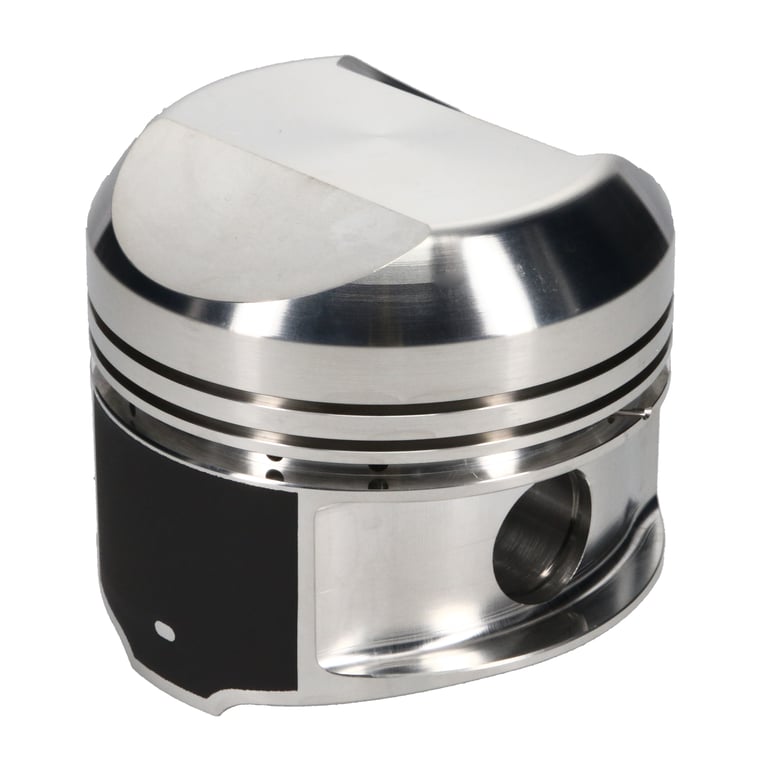

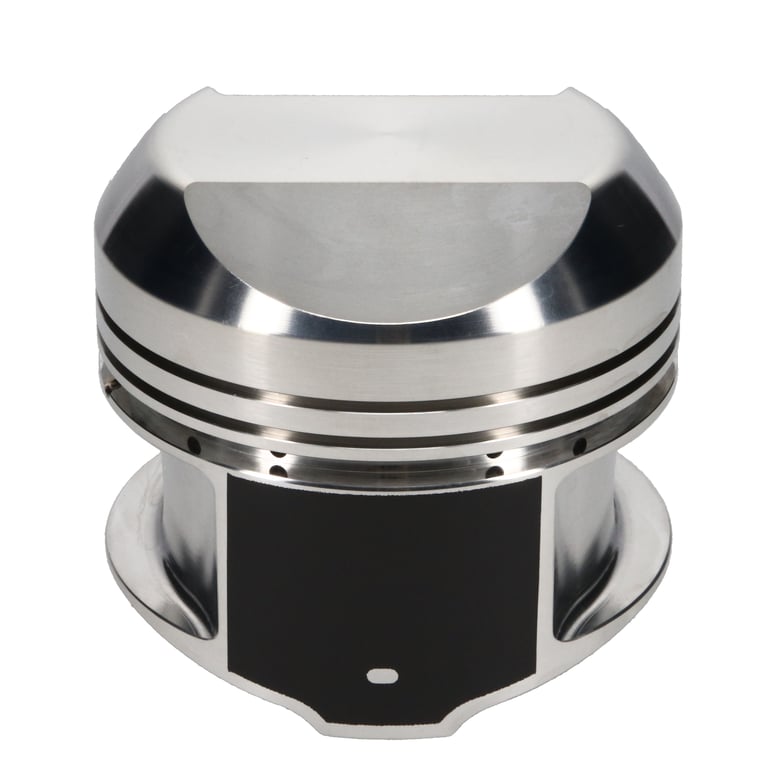

Piston Set, 4032, Dome, 4.280 Bore, 1.955 CD, 1.031 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 118758

$910.72

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chrysler 426 Hemi

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	426 HEMI
Bore Diameter	4.280
Piston Head Type	Dome
Compression Height	1.955
Piston Volume	88.00
Material	4032
Piston Quantity	8
Forging Type	Round
Piston Average Weight	830
Ring Set Included	No
Top Compression Ring Thickness	0.0800
Second Compression Ring Thickness	0.0800
Oil Ring Thickness	0.188
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	1.031
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.170
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.280 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
