650CFM Drag Race Carb.

Name: 650CFM Drag Race Carb.
SKU: 67199
Price: 593.79 USD
Availability: InStock

Manufacturer: Proform

Manufacturer part number: 67199

Old price: $635.95

Price: $593.79

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

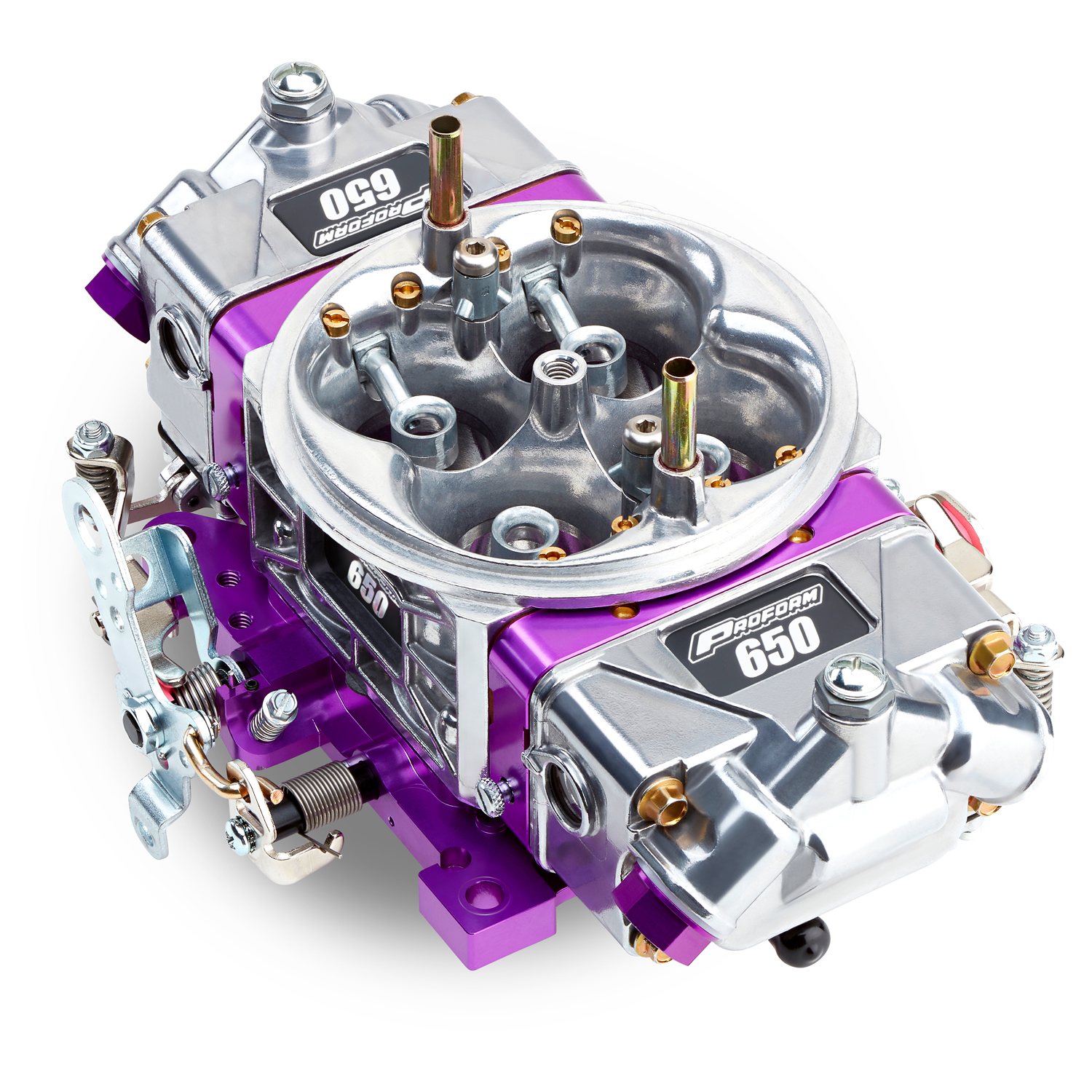

Carburetor - Race Series - 4-Barrel - 650 CFM - Square Bore - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Purple Anodized / Tumble Polished - Each

Manufacturer Part #: 67199

Warning: This product may have emissions compliance restrictions in some states.

Products specifications

Attribute name	Attribute value
Feature/Benefit	Lightweight Aluminum Construction
Prop 65 Yes/No	Yes
Product Type	Carburetor
Needle & Seat	110
Material	Aluminum
Sub Type	Race Series
Prop 65 (C, R or CR)	CR
Finish	Purple Anodized / Tumble Polished
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Unit	Each
Ford Kickdown Bracket Included	No
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Fuel Line Inlet Distance	9-11/16 inch
Specifications	4-Barrel, 650 CFM, Square Bore, No Choke, Mechanical Secondary, Dual Inlet
Prop 65 Warning Label	Proposition 65 Warning.JPG
Idle/High Speed Air Bleed Sizes	73 / 35
Air Bleed Size (Inner High Speed)	35 / 35
Primary Main Jet Size	71 / .075
Number of Barrels	4
Base Plate Material	Billet Aluminum
Series	Race Series
Secondaries	Mechanical Secondaries
Booster Style	Down-Leg Boosters
Air Bleed Size (Outer Idle)	73 / 73
PartType	Carburetor
Category	Carburetor - 650 CFM
CFM:	650 CFM
Main Body Material	Lightweight Aluminum
Throttle Linkage	Universal
Fuel Inlet Thread	7/8-in. x20
Fuel Inlet	Dual
Fuel	Gasoline
Flange Style	Square Bore
Emissions	49 State Legal
EGR	Without EGR
Calibration	Universal
Choke	No Choke
Metering Block Material	Billet Aluminum
Air Bleeds Included	Yes
Air Bleed Material	Brass
Spacer Included	No
Small Venturi Diameter	1.75
Mounting Hole Quantity	4
Mounting Hole Diameter	0.25
Mounting Hardware Included	No
Marine Approved	No
Linkage Attached	Yes
Grade Type	Performance
Gasket Or Seal Included	Yes
Float Material	Nitrophyl
Flange Shape	4150 & 8090
Choke Type	Manual
Center Hung Floats	Yes
Body Material	Aluminum
Body Height	3.25
Body Color	Silver
Base Width	5.25
Base Length	5.25
Barrel Quantity	4
Air Cleaner Flange Diameter	0.25
Adjustable Float Level	Yes
Secondary Jet Diameter	0.0685
Primary Jet Diameter	0.075
Street Legal	Yes
Flange Type	Square/4150
Secondary Barrel Type	Mechanical
Country of Origin	US
