750CFM Circle Track Carburetor

Name: 750CFM Circle Track Carburetor
SKU: 67215
Price: 651.39 USD
Availability: InStock

Manufacturer: Proform

Manufacturer part number: 67215

Old price: $659.95

Price: $651.39

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$645.89

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

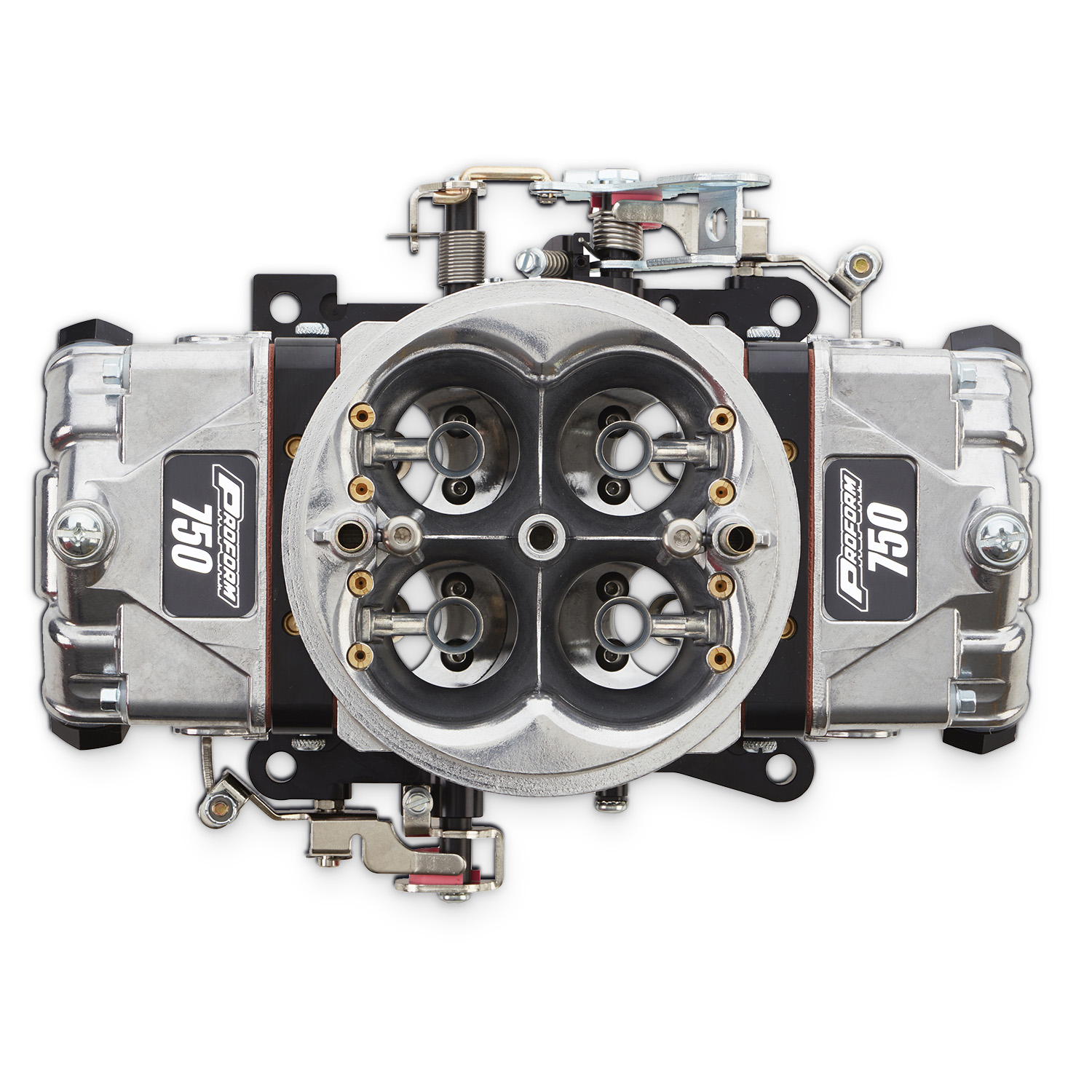

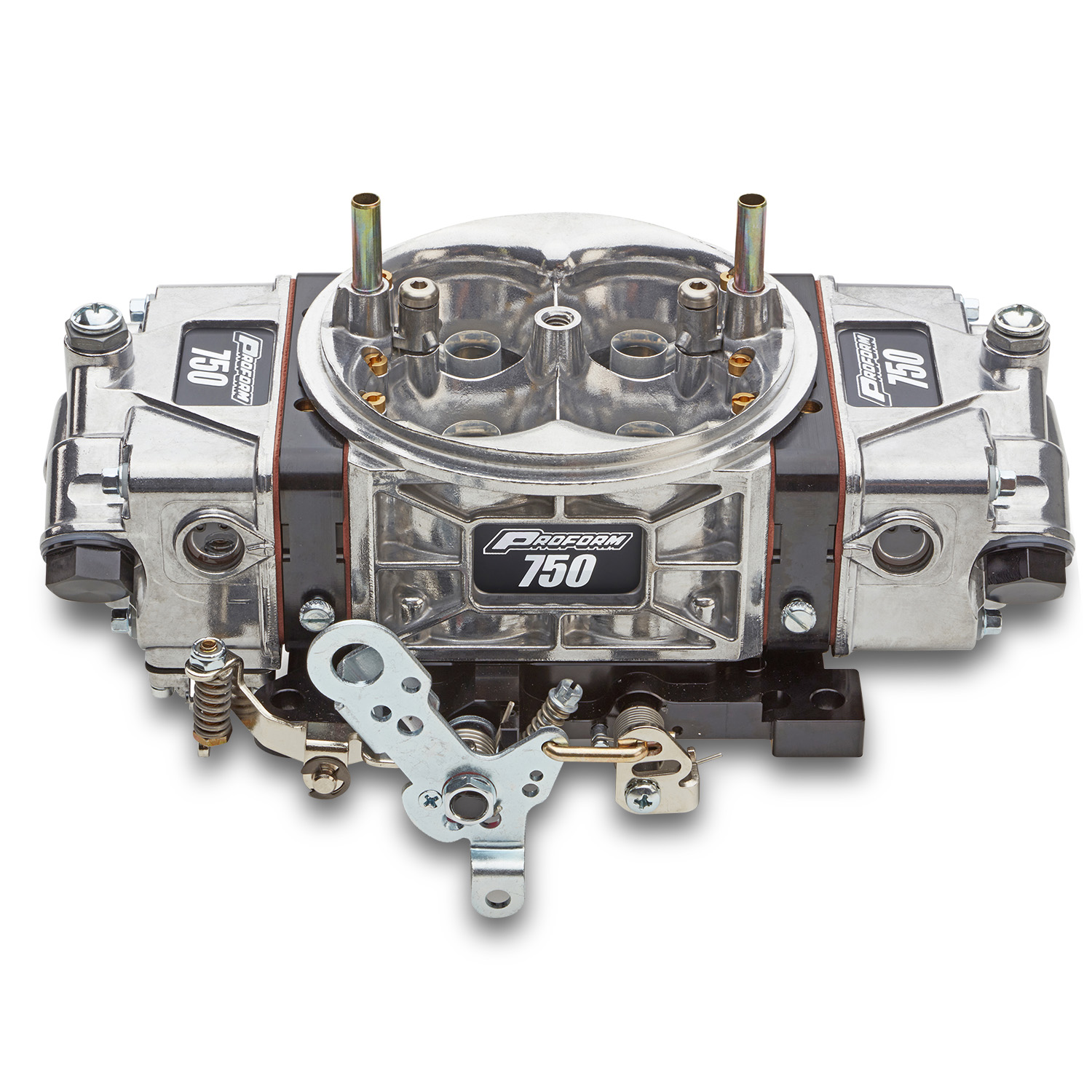

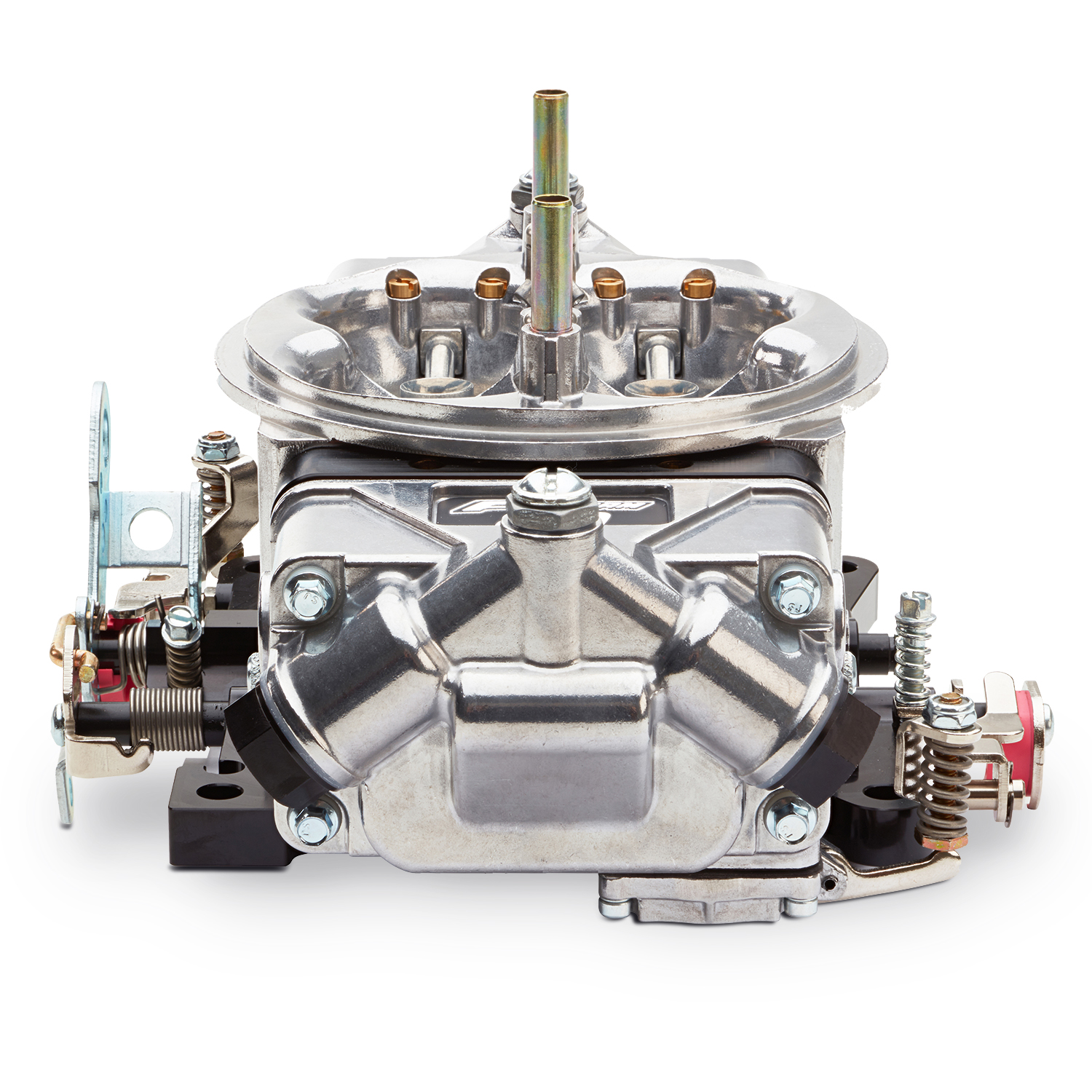

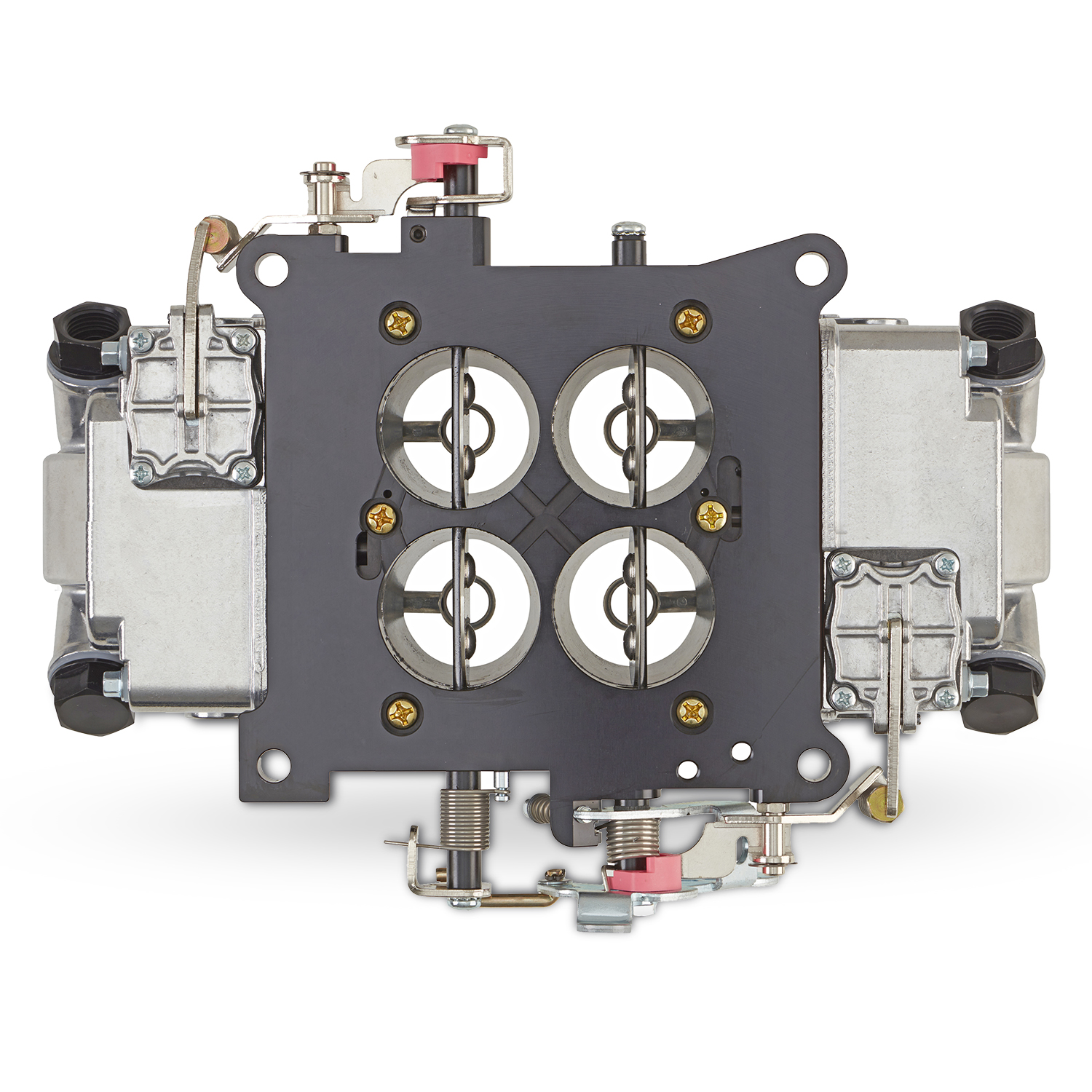

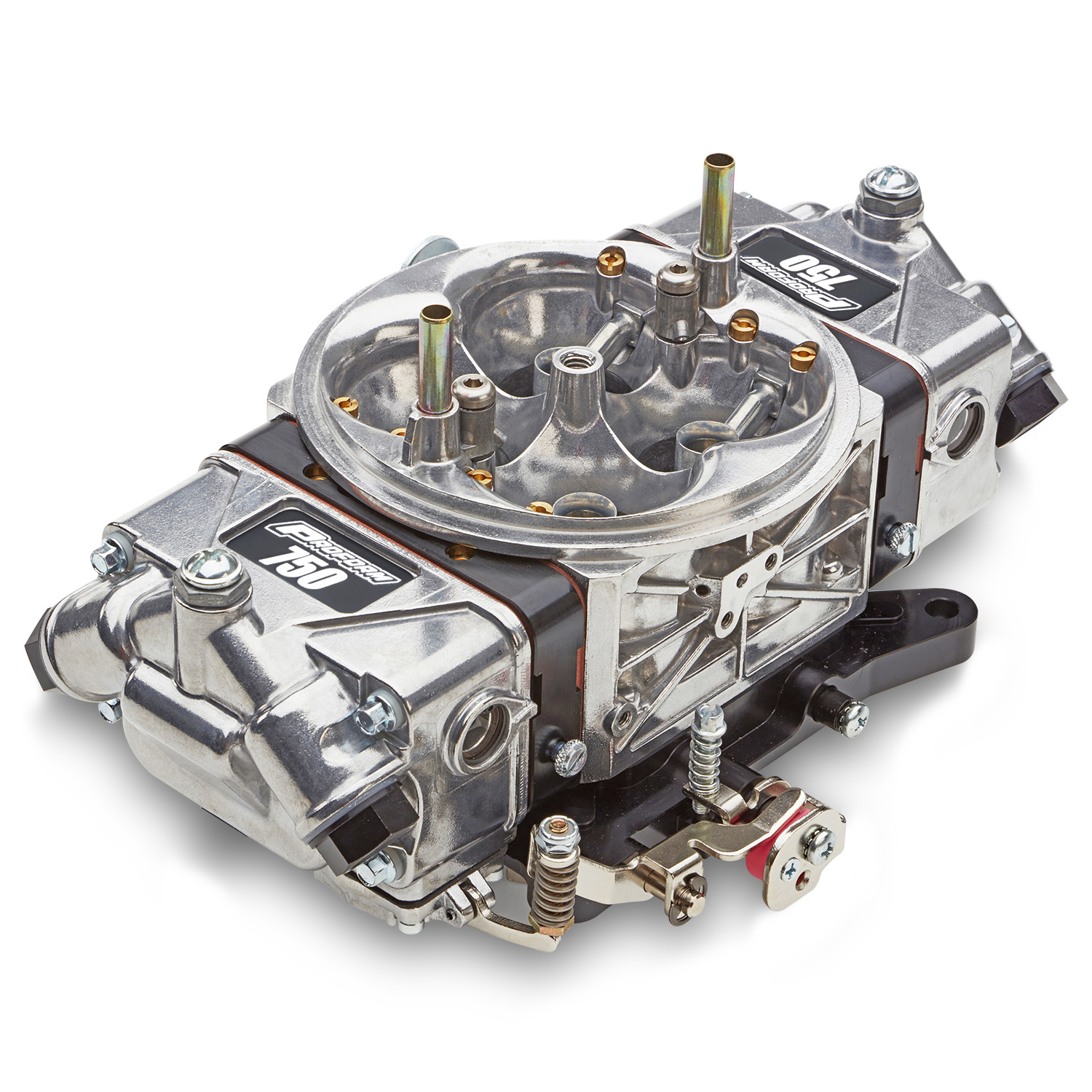

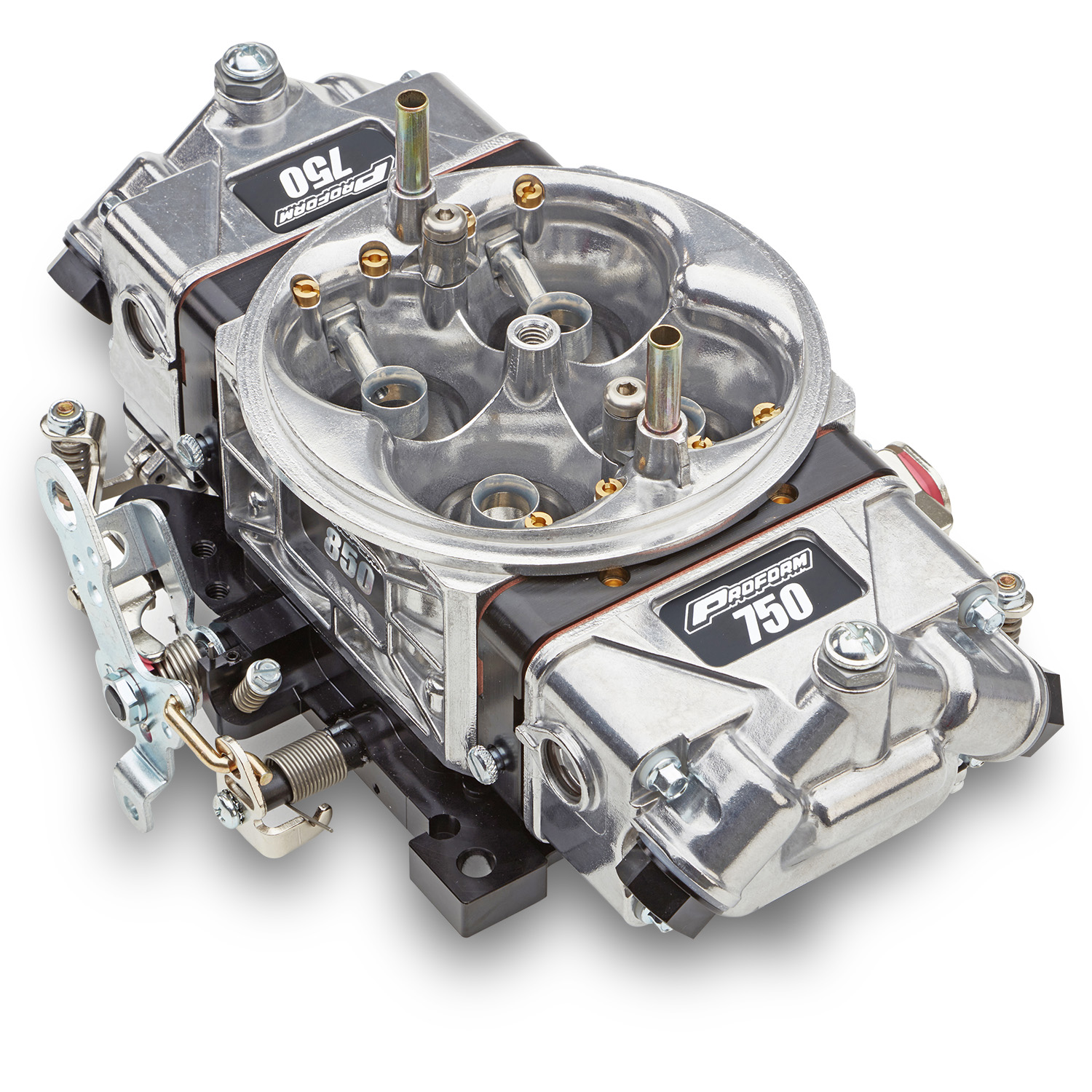

Carburetor - Circle Track Race Series - 4-Barrel - 750 CFM - Square Bore - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Black Anodized / Tumble Polished - Each

Manufacturer Part #: 67215

Warning: This product may have emissions compliance restrictions in some states.

Products specifications

Attribute name	Attribute value
Feature/Benefit	Lightweight Aluminum Construction
Prop 65 Warning Label	Proposition 65 Warning.JPG
Product Type	Carburetor
Idle/High Speed Air Bleed Sizes	70 / 35
Material	Aluminum
Sub Type	Circle Track Race Series
Ford Kickdown Bracket Included	No
Finish	Black Anodized / Tumble Polished
Fuel Line Inlet Distance	9-11/16 inch
Unit	Each
Secondary Main Jet Size	76 / .080
Air Bleed Size (Inner High Speed)	35 / 35
Primary Main Jet Size	76 / .080
Specifications	4-Barrel, 750 CFM, Square Bore, No Choke, Mechanical Secondary, Dual Inlet
CFM:	750 CFM
Number of Barrels	4
Base Plate Material	Billet Aluminum
Series	Race Series
Secondaries	Mechanical Secondaries
Booster Style	Down-Leg Boosters
Air Bleed Size (Outer Idle)	70 / 70
PartType	Carburetor
Metering Block Material	Billet Aluminum
Choke	No Choke
Main Body Material	Lightweight Aluminum
Calibration	Universal
Throttle Linkage	Universal
Fuel Inlet	Dual
Fuel	Gasoline
Prop 65 Yes/No	Yes
Prop 65 (C, R or CR)	CR
Needle & Seat	110
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Primary Power Valve (Hg)	4.5
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Discharge Nozzle Size (Primary / Secondary)	.031 in. / .031 in.
Flange Style	Square Bore
Small Venturi Diameter	1.75
Mounting Hole Quantity	4
Mounting Hole Diameter	0.25
Mounting Hardware Included	No
Marine Approved	No
Main Venturi Diameter	1.875
Linkage Attached	Yes
Grade Type	Performance
Gasket Or Seal Included	Yes
Float Material	Nitrophyl
Flange Shape	4150 & 8090
Choke Type	Manual
Center Hung Floats	Yes
Body Material	Aluminum
Body Height	3.25
Body Color	Silver
Base Width	5.25
Base Length	5.25
Barrel Quantity	4
Air Cleaner Flange Diameter	0.25
Adjustable Float Level	Yes
Secondary Jet Diameter	0.084
Primary Jet Diameter	0.084
Street Legal	Yes
Flange Type	Square/4150
Secondary Barrel Type	Mechanical
Emissions	49 State Legal
EGR	Without EGR
Category	Carburetor - 750 CFM
Fuel Inlet Thread	7/8-in. x20
Air Bleeds Included	Yes
Air Bleed Material	Brass
Spacer Included	No
Country of Origin	US
