750CFM Race Series Carburetor

Name: 750CFM Race Series Carburetor
SKU: 67200
Price: 609.38 USD
Availability: InStock

Manufacturer: Proform

Manufacturer part number: 67200

Old price: $635.95

Price: $609.38

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+	6+	12+
Price	$603.88	$601.14	$600.22	$599.30

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

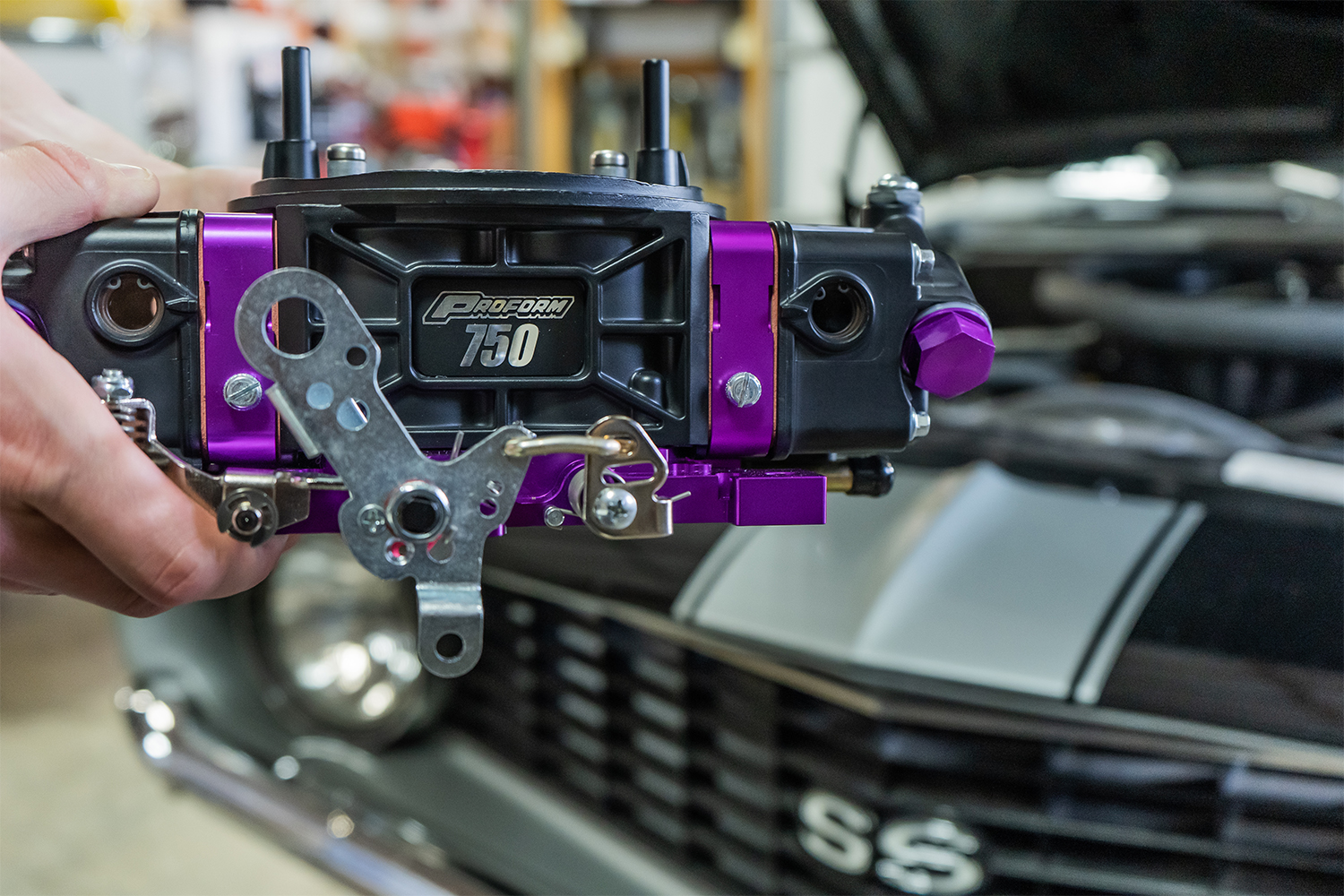

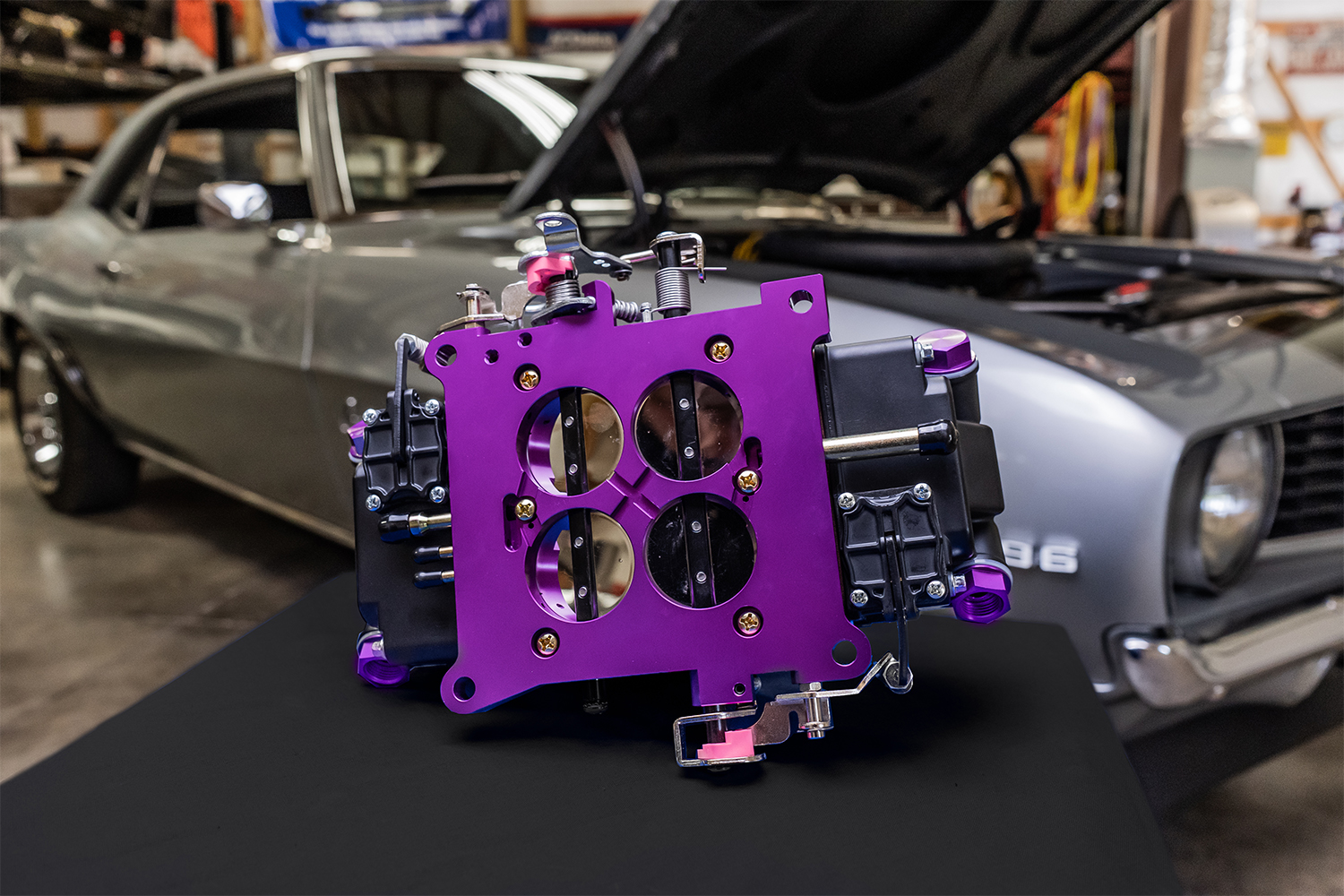

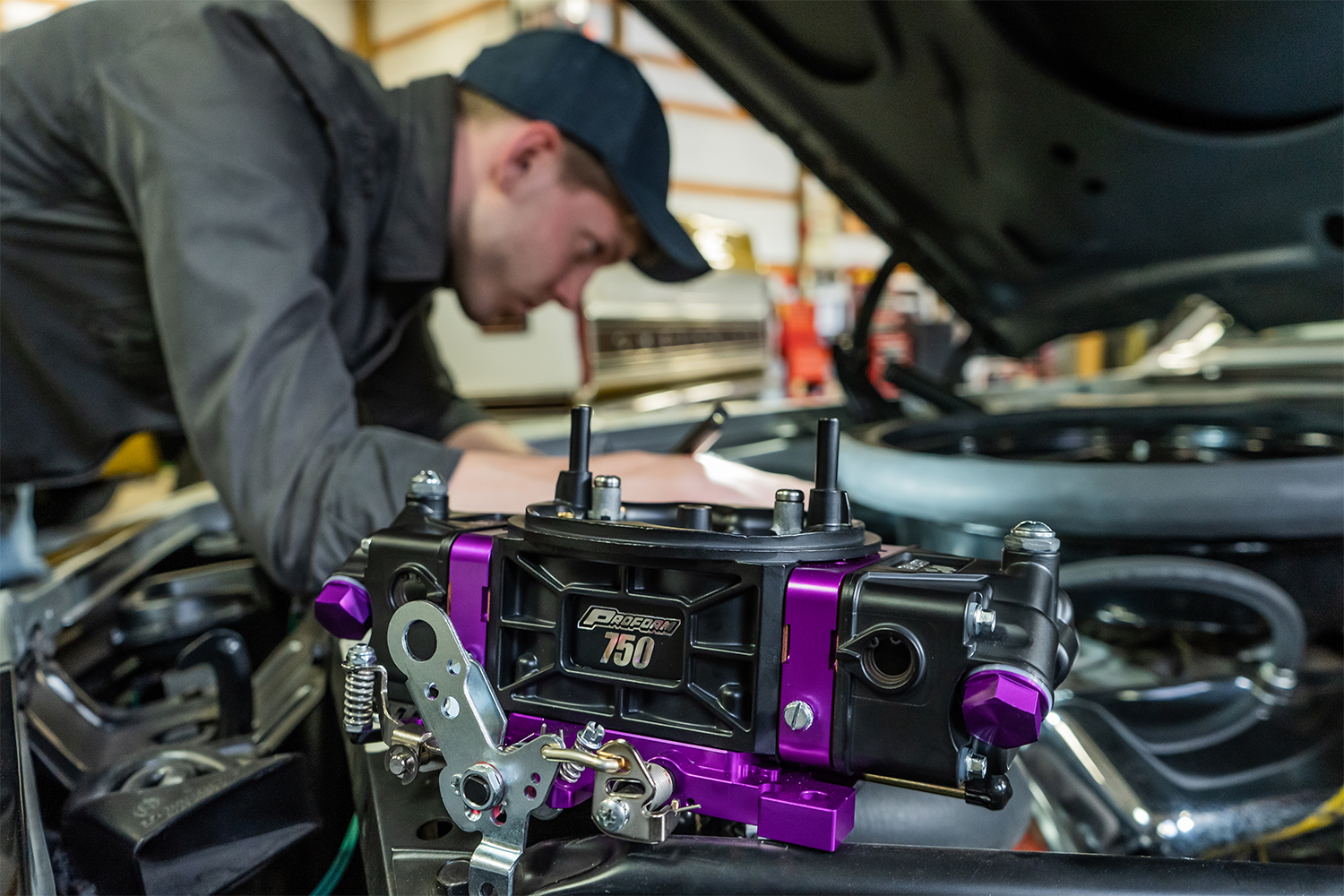

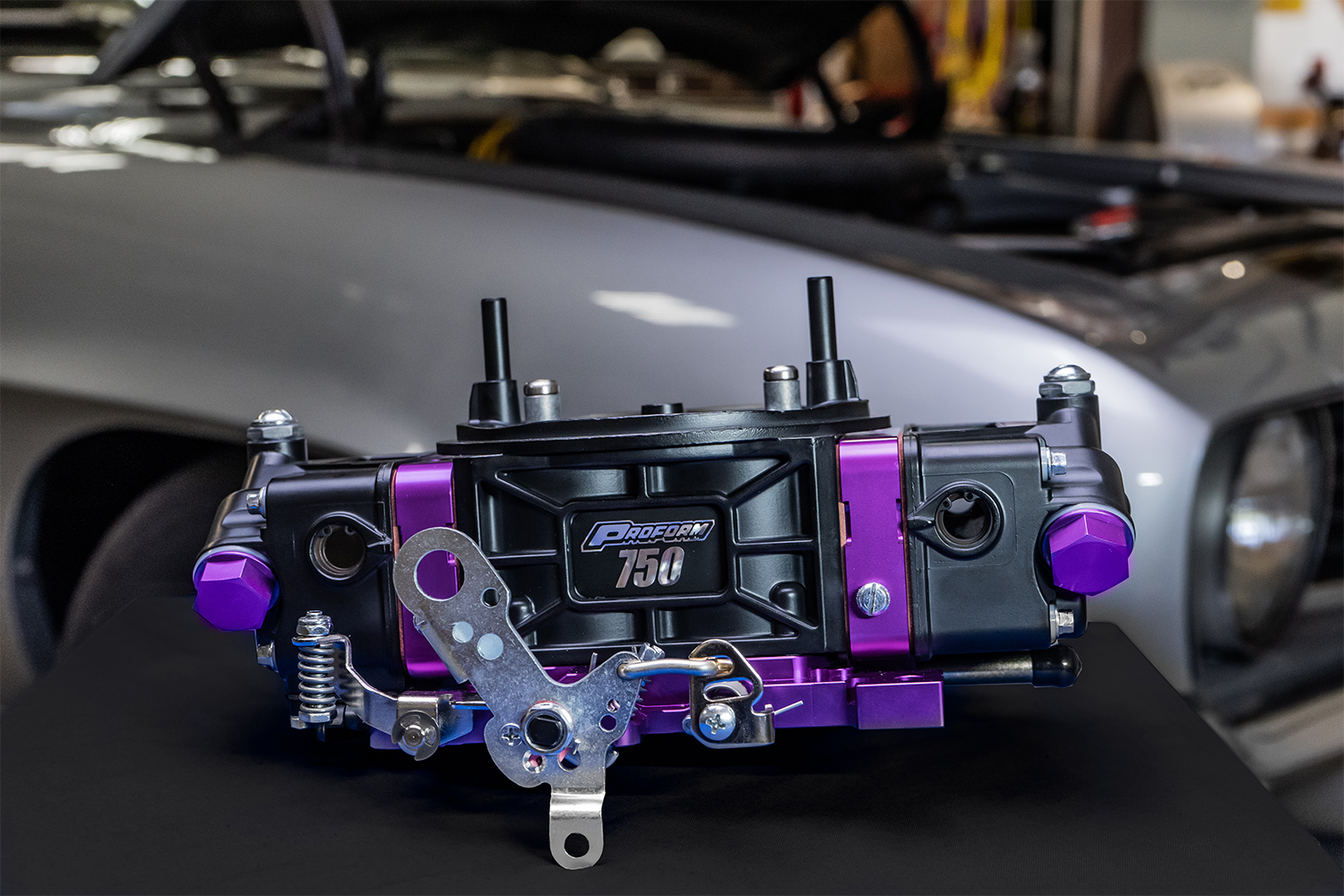

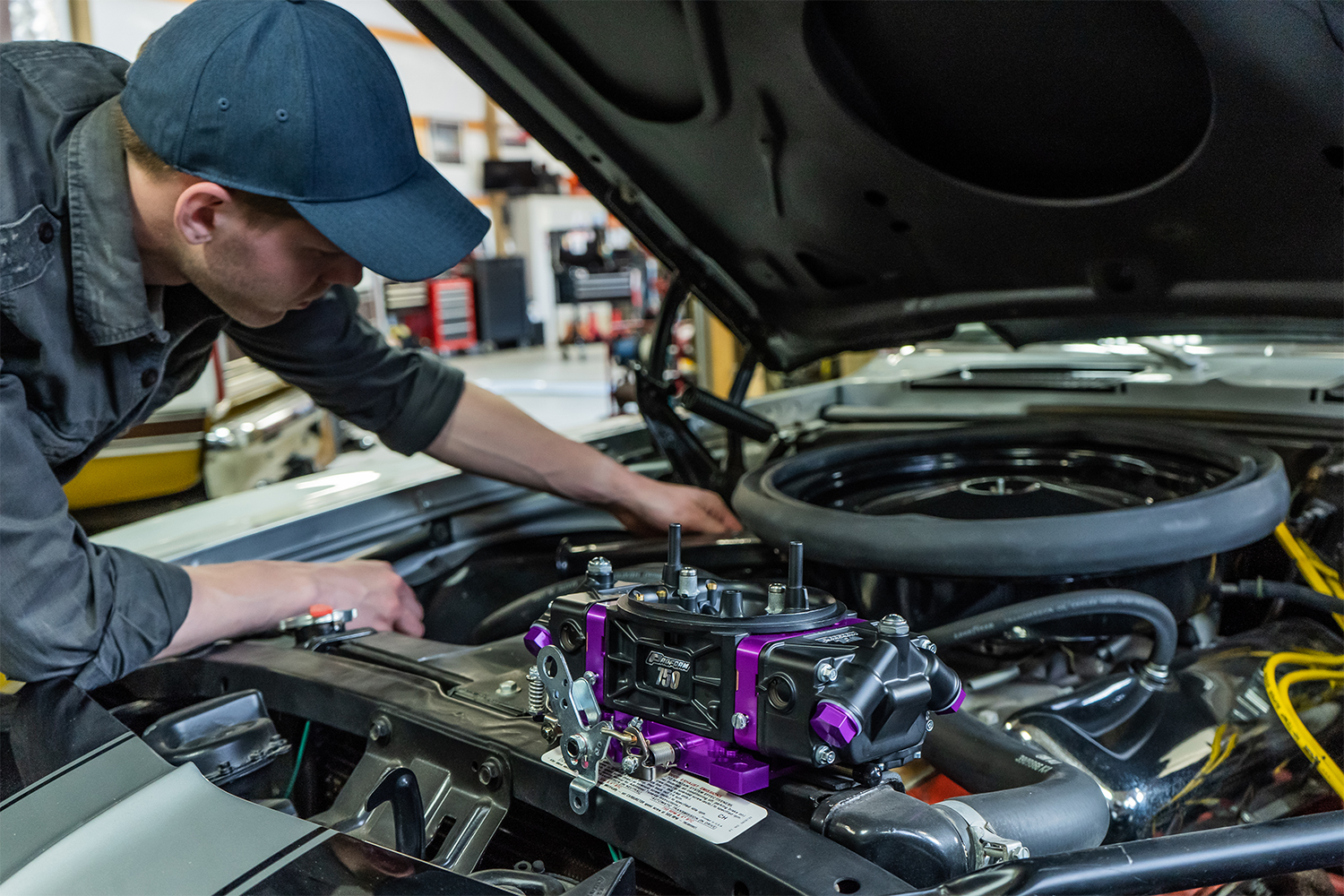

Carburetor - Race Series - 4-Barrel - 750 CFM - Square Bore - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Purple Anodized / Tumble Polished - Each

Note: 9-3/4 in on center inlets

Manufacturer Part #: 67200

Warning: This product may have emissions compliance restrictions in some states.

Products specifications

Attribute name	Attribute value
Feature/Benefit	Lightweight Aluminum Construction
Prop 65 Yes/No	Yes
Product Type	Carburetor
Prop 65 (C, R or CR)	CR
Material	Aluminum
Sub Type	Race Series
Needle & Seat	110
Finish	Purple Anodized / Tumble Polished, Chrome
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Unit	Each
Primary Power Valve (Hg)	4.5
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Discharge Nozzle Size (Primary / Secondary)	.031 in. / .031 in.
Specifications	4-Barrel, 750 CFM, Square Bore, No Choke, Mechanical Secondary, Dual Inlet
Prop 65 Warning Label	Proposition 65 Warning.JPG
Idle/High Speed Air Bleed Sizes	70 / 35
Secondary Main Jet Size	83 / .093
Ford Kickdown Bracket Included	No
Fuel Line Inlet Distance	9-11/16 inch
Air Bleed Size (Inner High Speed)	35 / 35
Primary Main Jet Size	74 / .078
Choke	No Choke
Number of Barrels	4
Base Plate Material	Billet Aluminum
Booster Style	Down-Leg Boosters
Series	Race Series
Secondaries	Mechanical Secondaries
Calibration	Universal
Air Bleed Size (Outer Idle)	70 / 70
PartType	Carburetor
Metering Block Material	Billet Aluminum
Main Body Material	Lightweight Aluminum
Category	Carbs
Throttle Linkage	Universal
Fuel Inlet	Dual
Fuel	Gasoline
Flange Style	Square Bore
Emissions	49 State Legal
EGR	Without EGR
CFM:	750 CFM
Fuel Inlet Thread	7/8-in. x20
Air Bleeds Included	Yes
Air Bleed Material	Brass
Spacer Included	No
Small Venturi Diameter	1.75
Mounting Hole Quantity	4
Mounting Hole Diameter	0.25
Mounting Hardware Included	No
Marine Approved	No
Main Venturi Diameter	1.875
Linkage Attached	Yes
Grade Type	Performance
Gasket Or Seal Included	Yes
Float Material	Nitrophyl
Flange Shape	4150 & 8090
Choke Type	Manual
Center Hung Floats	Yes
Body Material	Aluminum
Body Height	3.25
Body Color	Silver
Base Width	5.25
Base Length	5.25
Barrel Quantity	4
Air Cleaner Flange Diameter	0.25
Adjustable Float Level	Yes
Secondary Jet Diameter	0.0975
Primary Jet Diameter	0.08
Street Legal	Yes
Flange Type	Square/4150
Secondary Barrel Type	Mechanical
California Residents	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Kit Contents	16 Lug Bolts-4 Wheel Locks-1 Key & 1 Key Pouch
Seat Style	Cone Seat Bolt
Thread Size	M14 x 1.5
Shank Length	28.0mm
Overall Length	57.5mm
Hex Size	17mm
Color	CHROME
Country of Origin	US
