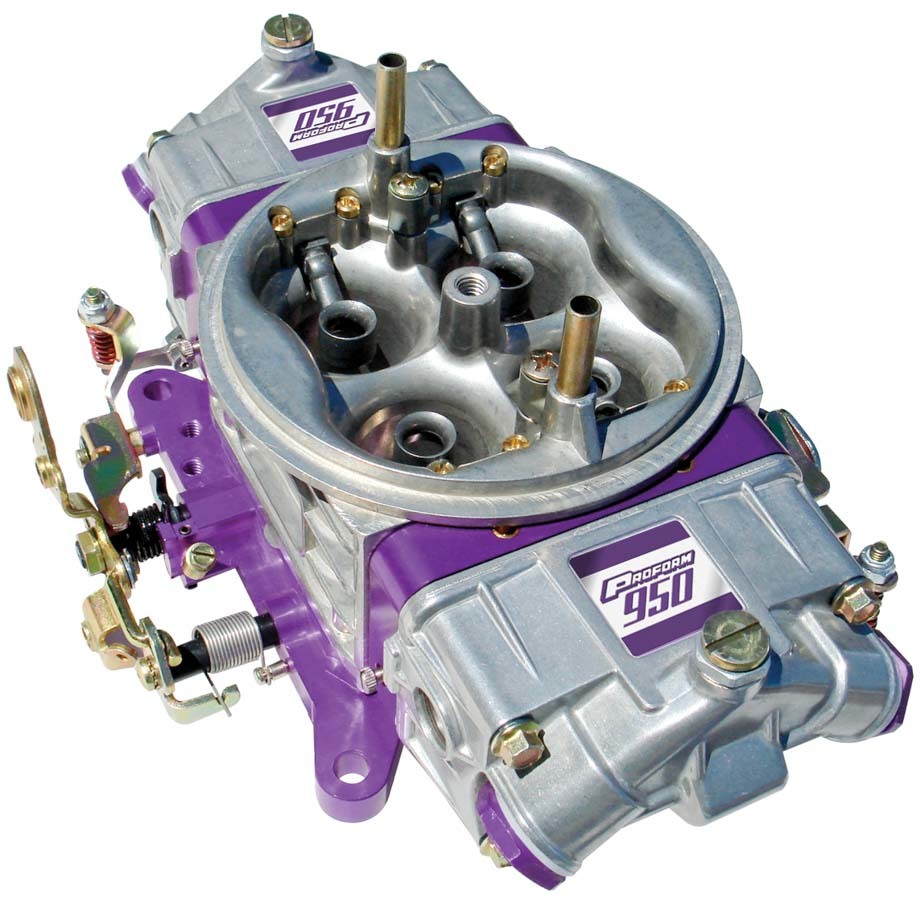

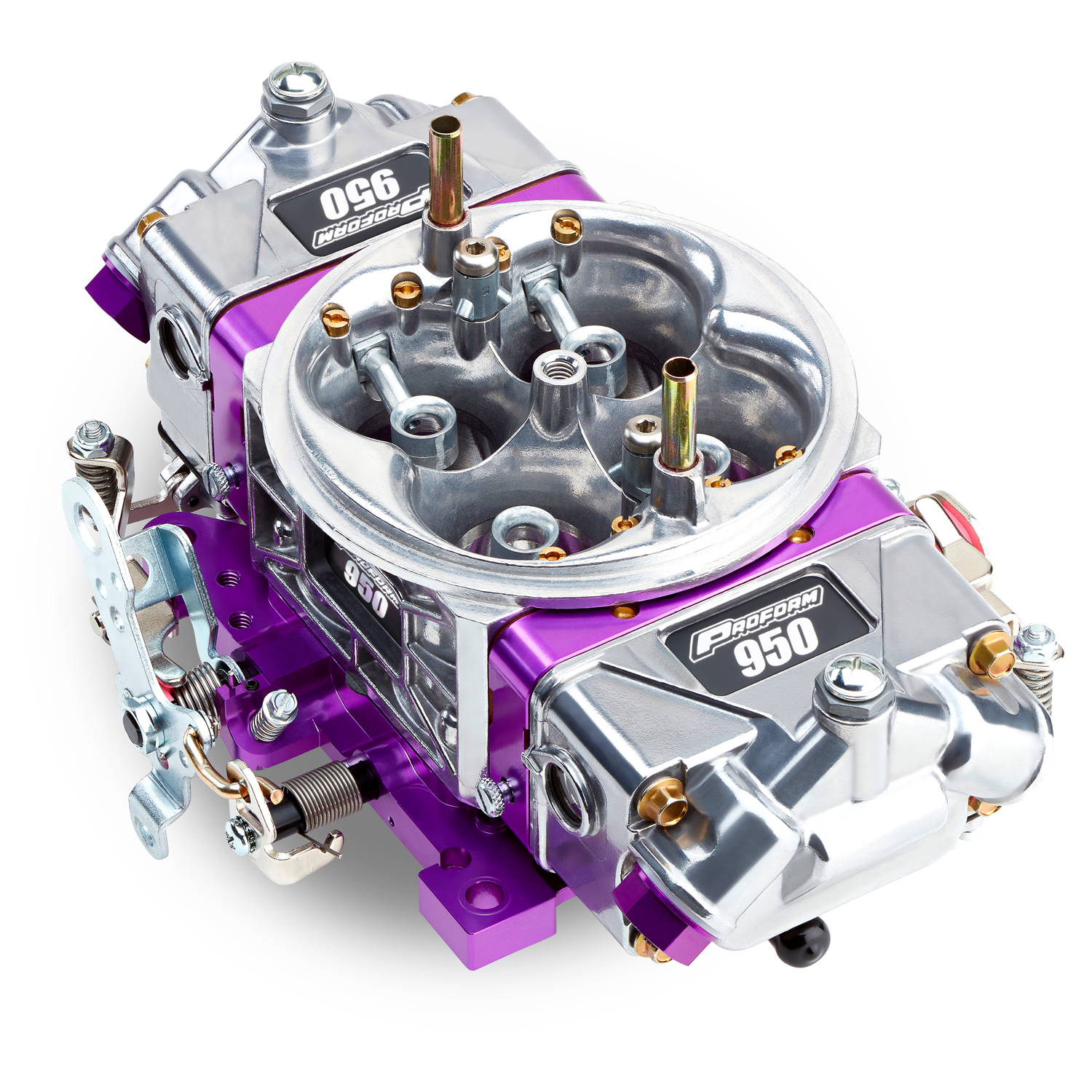

950CFM Race Series Carburetor

Name: 950CFM Race Series Carburetor
SKU: 67202
Price: 695.37 USD
Availability: InStock

Manufacturer: Proform

Manufacturer part number: 67202

Old price: $710.95

Price: $695.37

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+	6+
Price	$689.87	$687.12	$686.21

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Carburetor - Race Series - 4-Barrel - 950 CFM - Square Bore - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Purple Anodized / Tumble Polished - Each

Manufacturer Part #: 67202

Warning: This product may have emissions compliance restrictions in some states.

Products specifications

Attribute name	Attribute value
Feature/Benefit	Lightweight Aluminum Construction
Prop 65 Yes/No	Yes
Product Type	Carburetor
Discharge Nozzle Size (Primary / Secondary)	.033 in. / .033 in.
Material	Aluminum
Sub Type	Race Series
Fuel Line Inlet Distance	9-11/16 inch
Finish	Purple Anodized / Tumble Polished
Secondary Main Jet Size	88 / .100
Unit	Each
Idle/High Speed Air Bleed Sizes	70 / 33
Air Bleed Size (Inner High Speed)	33 / 33
Primary Main Jet Size	79 / .086
Specifications	4-Barrel, 950 CFM, Square Bore, No Choke, Mechanical Secondary, Dual Inlet
Number of Barrels	4
Air Bleed Size (Outer Idle)	70 / 70
Base Plate Material	Billet Aluminum
Series	Race Series
Secondaries	Mechanical Secondaries
Booster Style	Down-Leg Boosters
PartType	Carburetor
Calibration	Universal
Category	Carbs
Main Body Material	Lightweight Aluminum
Throttle Linkage	Universal
Fuel Inlet Thread	7/8-in. x20
Fuel Inlet	Dual
Fuel	Gasoline
Flange Style	Square Bore
Emissions	49 State Legal
EGR	Without EGR
Choke	No Choke
CFM:	950 CFM
Metering Block Material	Billet Aluminum
Air Bleeds Included	Yes
Air Bleed Material	Brass
Spacer Included	No
Small Venturi Diameter	1.75
Mounting Hole Quantity	4
Mounting Hole Diameter	0.25
Prop 65 (C, R or CR)	CR
Primary Power Valve (Hg)	4.5
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Needle & Seat	120
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Ford Kickdown Bracket Included	No
Prop 65 Warning Label	Proposition 65 Warning.JPG
Mounting Hardware Included	No
Marine Approved	No
Main Venturi Diameter	1.875
Linkage Attached	Yes
Grade Type	Performance
Gasket Or Seal Included	Yes
Float Material	Nitrophyl
Flange Shape	4150 & 8090
Choke Type	Manual
Center Hung Floats	Yes
Body Material	Aluminum
Body Height	3.25
Body Color	Silver
Base Width	5.25
Base Length	5.25
Barrel Quantity	4
Air Cleaner Flange Diameter	0.25
Adjustable Float Level	Yes
Secondary Jet Diameter	0.1025
Primary Jet Diameter	0.089
Street Legal	Yes
Flange Type	Square/4150
Secondary Barrel Type	Mechanical
Country of Origin	US
