Advanced Clutch Transmission Clutch Kit - FM7-SPG6

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

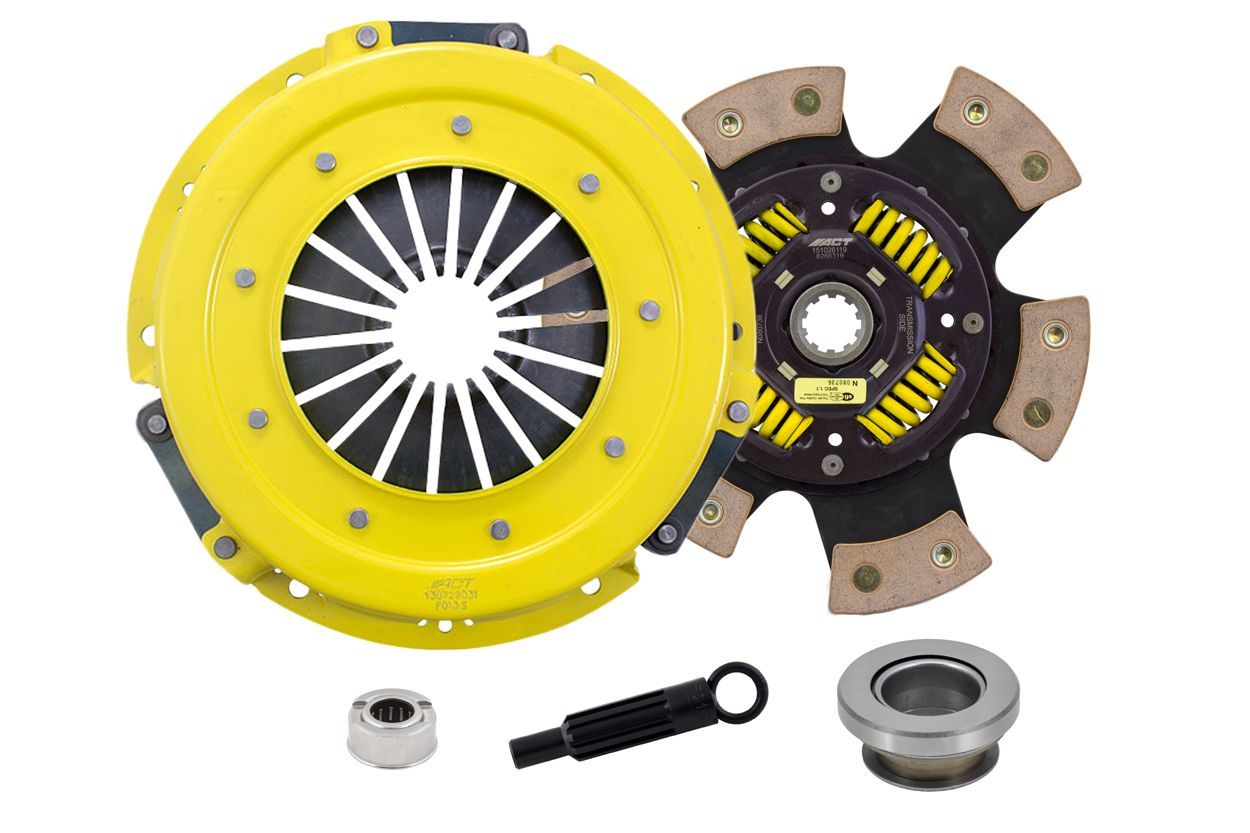

ACT Sport Race Sprung 6 Pad Clutch Kit
Manufacturer: Advanced Clutch
$509.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

FM7-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Note: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name Attribute value
Input Shaft Diameter 1.0625
Input Spline Quantity 10
Clutch Disc Diameter 10.5, 266
Torque Capacity (ft/lbs.) 550
Torque Capacity Over OE 63%
Disc Material Ceramic
Pilot Bushing Included No
Pressure Plate Type Sport
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Release Bearing Included Yes
Alignment Tool Included Yes
Prop 65 Yes/No Yes
Disc Type Sprung Solid Sprung
Product Weight (lbs.) 22.0
Clutch Slave Cylinder Included No
Pressure Plate Bolts Included No
Grease Included Yes
Grade Type Performance
Flywheel Bolts Included No
Pilot Bearing Included Yes
Clutch Master Cylinder Included No
Country of Origin KR
Condition New
🚗 Compatible with
6 vehicles are compatible with this product
Year Make Model
1996 Ford Mustang
1997 Ford Mustang
1998 Ford Mustang
1999 Ford Mustang
2000 Ford Mustang
2001 Ford Mustang
