Advanced Clutch Transmission Clutch Kit - GM7-HDSS

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

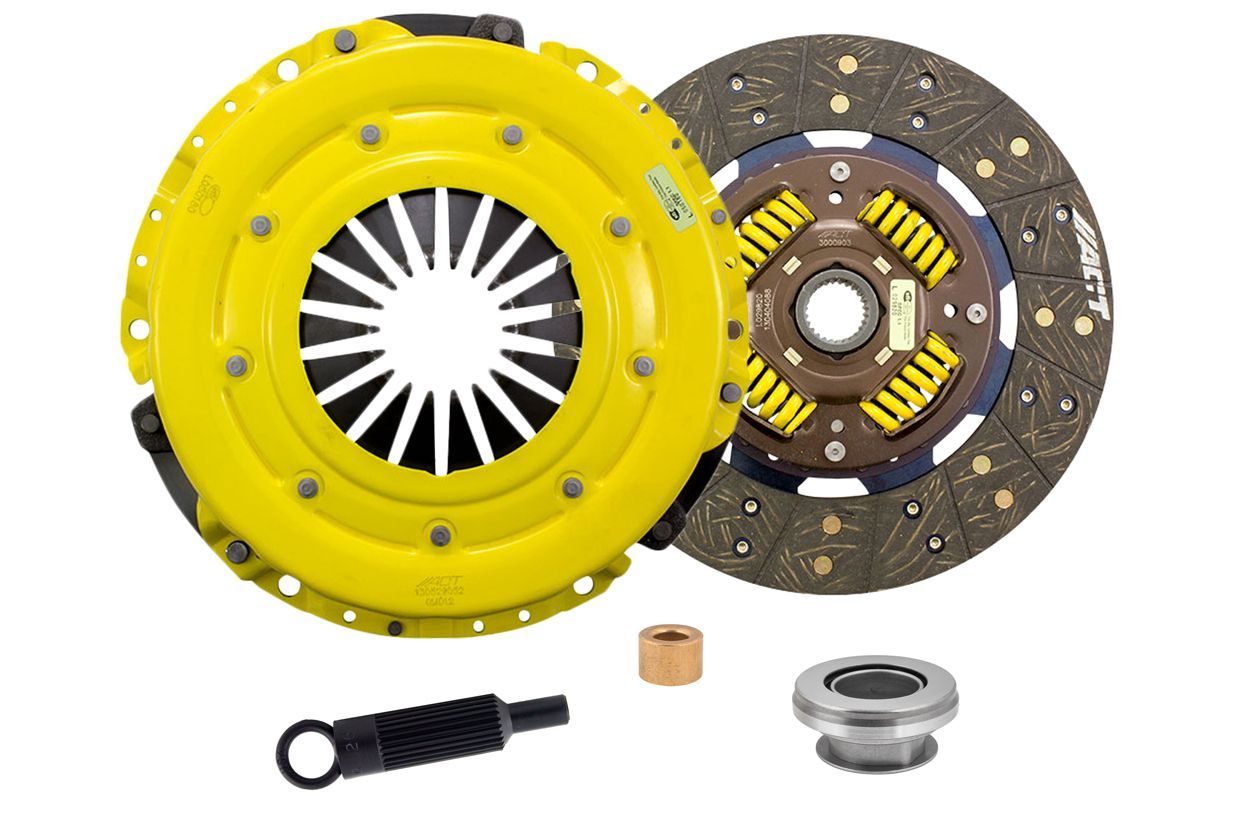

ACT Heavy Duty Performance Street Sprung Clutch Kit
Manufacturer: Advanced Clutch
$577.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

GM7-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Note: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle; Longer friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name Attribute value
Input Shaft Diameter 1.125
Clutch Disc Diameter 10.5, 266
Product Weight (lbs.) 22.1
Input Spline Quantity 26
Torque Capacity Over OE 32%
Torque Capacity (ft/lbs.) 629
Pressure Plate Type Heavy Duty
Pilot Bushing Included No
Disc Material Organic
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Release Bearing Included Yes
Alignment Tool Included Yes
Prop 65 Yes/No Yes
Disc Type Sprung Solid Sprung
Clutch Slave Cylinder Included No
Pressure Plate Bolts Included No
Grease Included Yes
Grade Type Performance
Flywheel Bolts Included No
Pilot Bearing Included Yes
Clutch Master Cylinder Included No
Country of Origin KR
Condition New
🚗 Compatible with
37 vehicles are compatible with this product
Year Make Model
1982 Chevrolet Camaro
1983 Chevrolet Camaro
1984 Chevrolet Camaro
1985 Chevrolet Camaro
1986 Chevrolet Camaro
1977 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
1982 Pontiac Firebird
1983 Pontiac Firebird
1984 Pontiac Firebird
1985 Pontiac Firebird
1986 Pontiac Firebird
1972 Chevrolet Corvette
1971 Pontiac Firebird
1972 Pontiac Firebird
1971 Pontiac GTO
1988 Chevrolet Camaro
1989 Chevrolet Camaro
1987 Chevrolet Camaro
1990 Chevrolet Camaro
1991 Chevrolet Camaro
1992 Chevrolet Camaro
1975 Pontiac Firebird
1976 Pontiac Firebird
1987 Pontiac Firebird
1988 Pontiac Firebird
1989 Pontiac Firebird
1990 Pontiac Firebird
1991 Pontiac Firebird
1992 Pontiac Firebird
1971 Pontiac Catalina
1972 Pontiac Catalina
1973 Pontiac Firebird
1974 Pontiac Firebird
1972 Pontiac GTO
