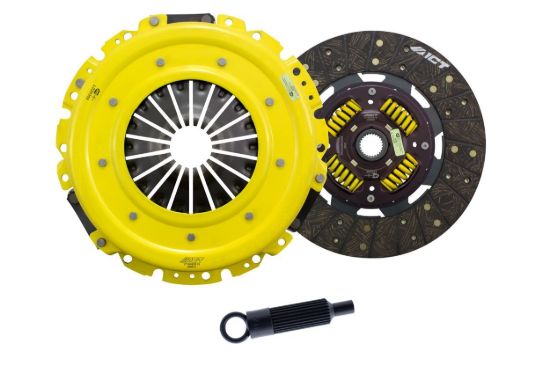

Advanced Clutch Transmission Clutch Kit - GM9-HDSS

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
ACT Heavy Duty Performance Street Sprung Clutch Kit
Manufacturer: Advanced Clutch
$613.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

GM9-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Note: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle; Longer friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name Attribute value
Product Weight (lbs.) 29.8
Torque Capacity Over OE 42%
Torque Capacity (ft/lbs.) 709
Part Fitment Requirement Must be used with a flat flywheel or ACT 600585 flywheel for LS2/LS3/LS7.
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No Yes
Input Shaft Diameter 1.125
Clutch Disc Diameter 11, 280
Input Spline Quantity 26
Pressure Plate Type Heavy Duty
Clutch Master Cylinder Included No
Flywheel Included No
Pilot Bushing Included No
Release Bearing Included No
Clutch Slave Cylinder Included No
Flywheel Bolts Included No
Pilot Bearing Included No
Disc Material Organic
Disc Type Sprung Solid Sprung
Alignment Tool Included Yes
Pressure Plate Bolts Included No
Grease Included Yes
Grade Type Performance
Country of Origin KR
Condition New
🚗 Compatible with
30 vehicles are compatible with this product
Year Make Model
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
2003 Chevrolet Corvette
1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
2004 Chevrolet Corvette
2004 Pontiac GTO
2005 Pontiac GTO
2006 Pontiac GTO
2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette
2008 Chevrolet Corvette
2009 Chevrolet Corvette
2010 Chevrolet Corvette
2011 Chevrolet Corvette
2012 Chevrolet Corvette
2013 Chevrolet Corvette
