Advanced Clutch Transmission Clutch Kit - HA3-XTSD

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
ACT Extreme Performance Street Rigid Clutch Kit
Manufacturer: Advanced Clutch
$548.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

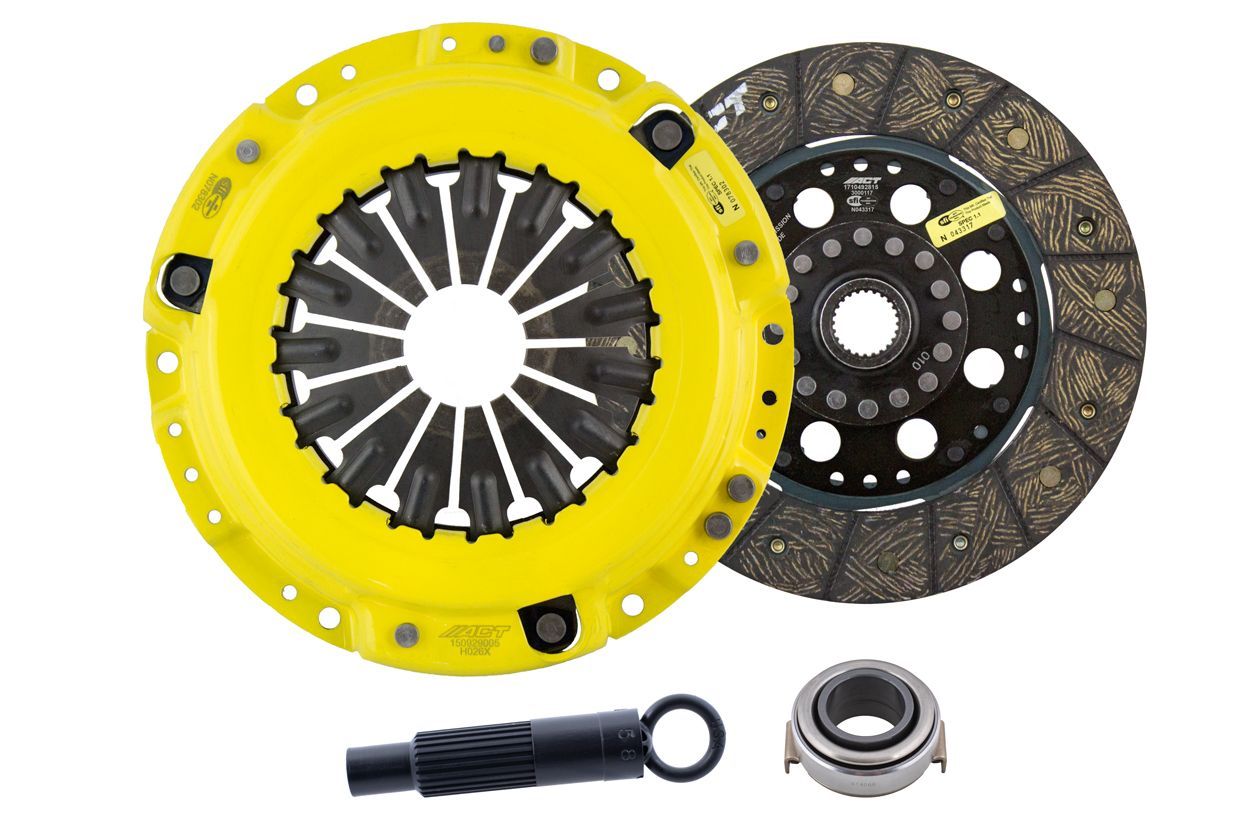

HA3-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability.

Note: Moderate to heavy pedal effort, smooth positive engagement, increased gear rattle; Longer clutch life achieved through ACT's exclusive diaphragm design, rigid design may increase spline wear; Precisely balanced and uses premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name Attribute value
Input Shaft Diameter 1.03125
Product Weight (lbs.) 12.3
Clutch Disc Diameter 224, 8.8
Input Spline Quantity 24
Torque Capacity (ft/lbs.) 385
Torque Capacity Over OE 95%
Disc Material Organic
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Pressure Plate Type Xtreme
Release Bearing Included Yes
Alignment Tool Included Yes
Prop 65 Yes/No Yes
Disc Type Sprung Solid Solid
Clutch Slave Cylinder Included No
Pressure Plate Bolts Included No
Grease Included Yes
Grade Type Performance
Flywheel Bolts Included No
Clutch Master Cylinder Included No
Country of Origin KR
Condition New
🚗 Compatible with
26 vehicles are compatible with this product
Year Make Model
1990 Honda Accord
1991 Honda Accord
2000 Honda Accord
2001 Honda Accord
2002 Honda Accord
1992 Honda Prelude
1993 Honda Prelude
1994 Honda Prelude
1995 Honda Prelude
1996 Honda Prelude
1997 Honda Prelude
1998 Honda Prelude
1999 Honda Prelude
2000 Honda Prelude
1997 Acura CL
1998 Acura CL
1999 Acura CL
2001 Honda Prelude
1992 Honda Accord
1993 Honda Accord
1994 Honda Accord
1995 Honda Accord
1996 Honda Accord
1997 Honda Accord
1998 Honda Accord
1999 Honda Accord
