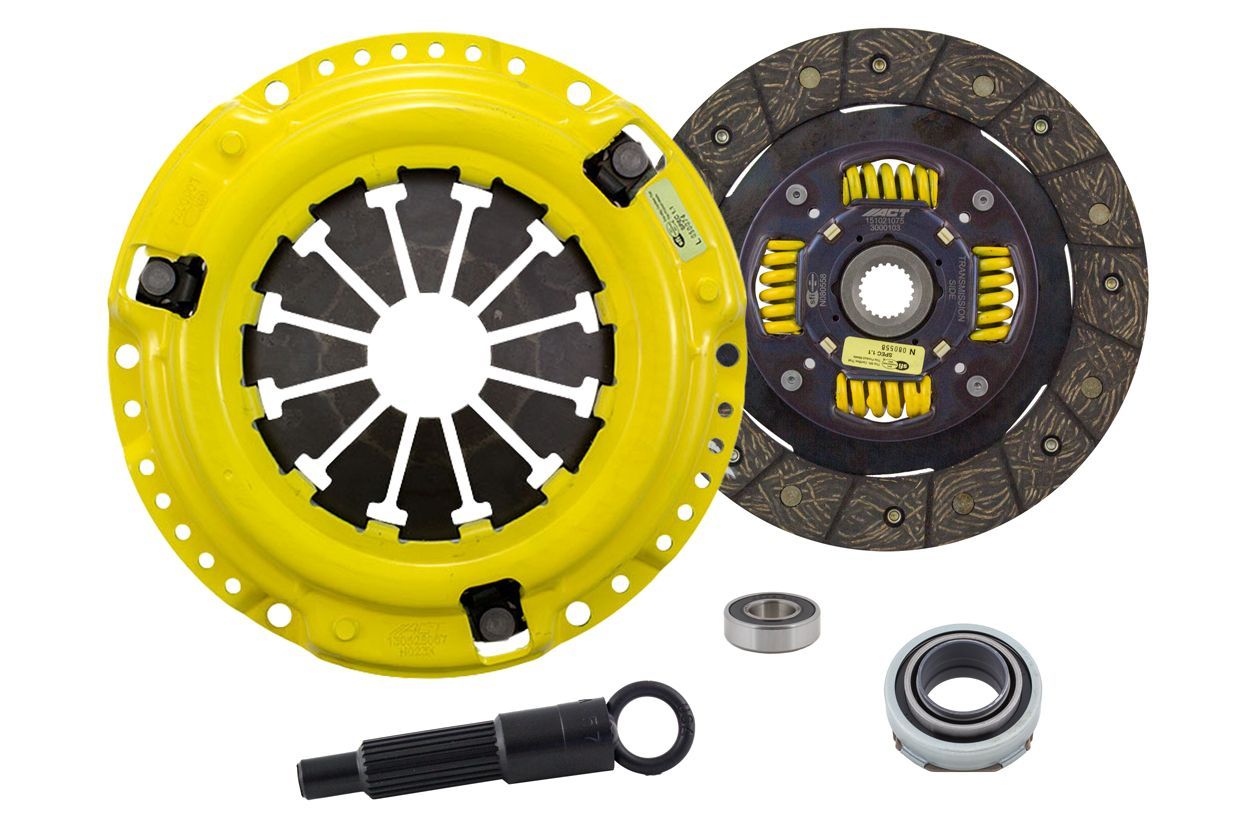

Advanced Clutch Transmission Clutch Kit - HC6-XTSS

Name: Advanced Clutch Transmission Clutch Kit - HC6-XTSS
SKU: HC6-XTSS
Price: 523.00 USD
Availability: InStock

ACT Extreme Performance Street Sprung Clutch Kit

Manufacturer: Advanced Clutch

$523.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

HC6-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Note: Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle; Longer friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name	Attribute value
Input Shaft Diameter	0.875
Product Weight (lbs.)	10.5
Input Spline Quantity	21
Clutch Disc Diameter	212, 8.3
Torque Capacity (ft/lbs.)	295
Torque Capacity Over OE	94%
Pilot Bushing Included	No
Disc Material	Organic
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label	Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Pressure Plate Type	Xtreme
Release Bearing Included	Yes
Alignment Tool Included	Yes
Prop 65 Yes/No	Yes
Disc Type Sprung Solid	Sprung
Clutch Slave Cylinder Included	No
Part Fitment Requirement	Must use with 90-01 SOHC flywheel or ACT flywheel (not provided). 212mm upgrade.
Pressure Plate Bolts Included	No
Grease Included	Yes
Grade Type	Performance
Flywheel Bolts Included	No
Pilot Bearing Included	Yes
Clutch Master Cylinder Included	No
Country of Origin	KR
Condition	New

🚗 Compatible with

2 vehicles are compatible with this product

Year	Make	Model
1988	Honda	Civic
1988	Honda	CRX
