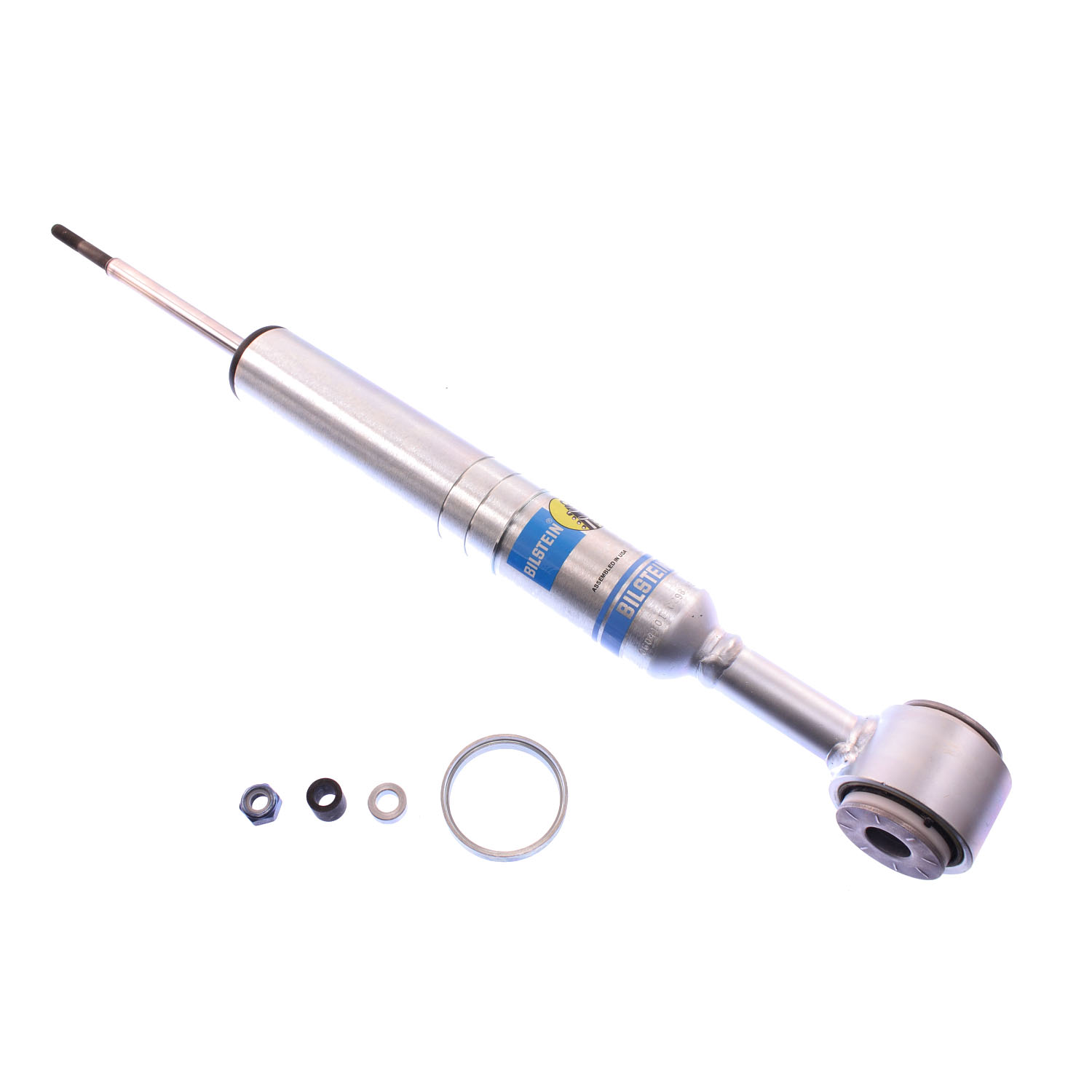

Bilstein Suspension Shock Absorber - 24-122986

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-122986
Old price: $156.61
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Products specifications

Attribute name Attribute value
Lower Mount Type Eye 20.3mm
Internal Design Monotube
Reservoir No
Body Design 46mm ID Snap Ring Grooved Body (Coilover)
Spring Seat Included No - Reuse OEM
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 415.0
Stroke/Travel Length (mm) 141.0
Shaft Diameter 14mm
Stroke/Travel Length (IN) 5.55
Extended Length (mm) 556.0
Extended Length (IN) 21.89
Finish Zinc Plated
Series B8 5100 (Ride Height Adjustable)
Upper Mount Type Stem
Collapsed Length (IN) 16.34
Boot Included No
Country of Origin US
Condition New
Quantity per Application 2
