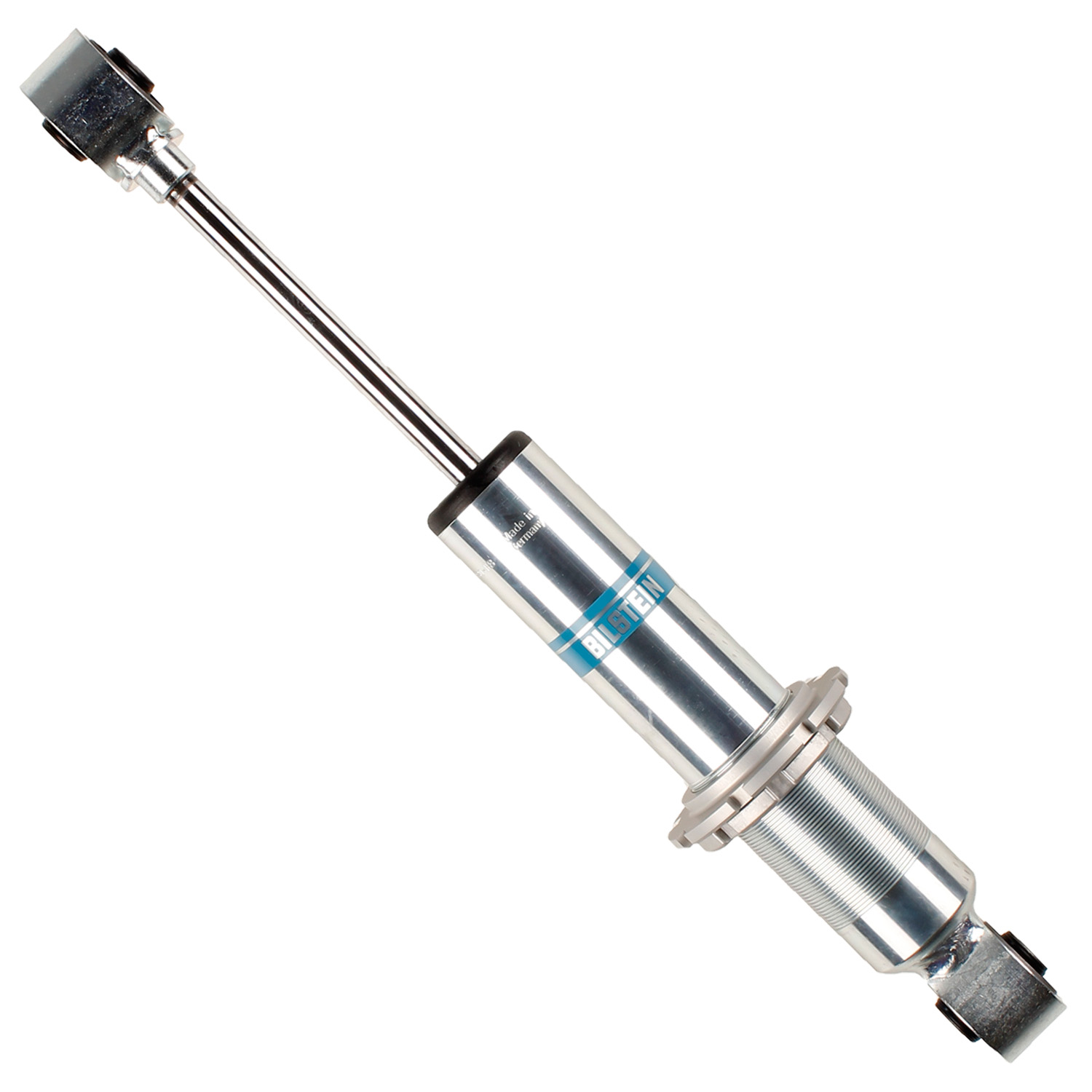

Bilstein Suspension Shock Absorber - 24-186520

Name: Bilstein Suspension Shock Absorber - 24-186520
SKU: 24-186520
Price: 213.00 USD
Availability: OutOfStock

M 7100 Classic (Coilover) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: 24-186520

$213.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

Application: No Applications

Products specifications

Attribute name	Attribute value
Reservoir	No
Finish	Zinc Plated
Lower Mount Type	Eye 14.2mm
Mount Type	Eye-to-Eye
Collapsed Length (IN)	12.34
Rebound @0.52m/s	3030
Upper Mount Type	Eye 14.2mm
Body Design	Threaded Body (Coilover)
Collapsed Length (mm)	313.5
Extended Length (IN)	18.22
Optional Reservoir Clamp	N/A
Compression @0.52m/s	965
Extended Length (mm)	463.0
Internal Design	Monotube
Series	M 7100 Classic (Coilover)
Spring Seat Included	Lower
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	Single Rate (2.5in)
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Piston Diameter	46mm
Stroke/Travel Length (IN)	5.90
Shaft Diameter (mm)	14.0
Stroke/Travel Length (mm)	149.9
Country of Origin	DE
Condition	New
Quantity per Application	2
