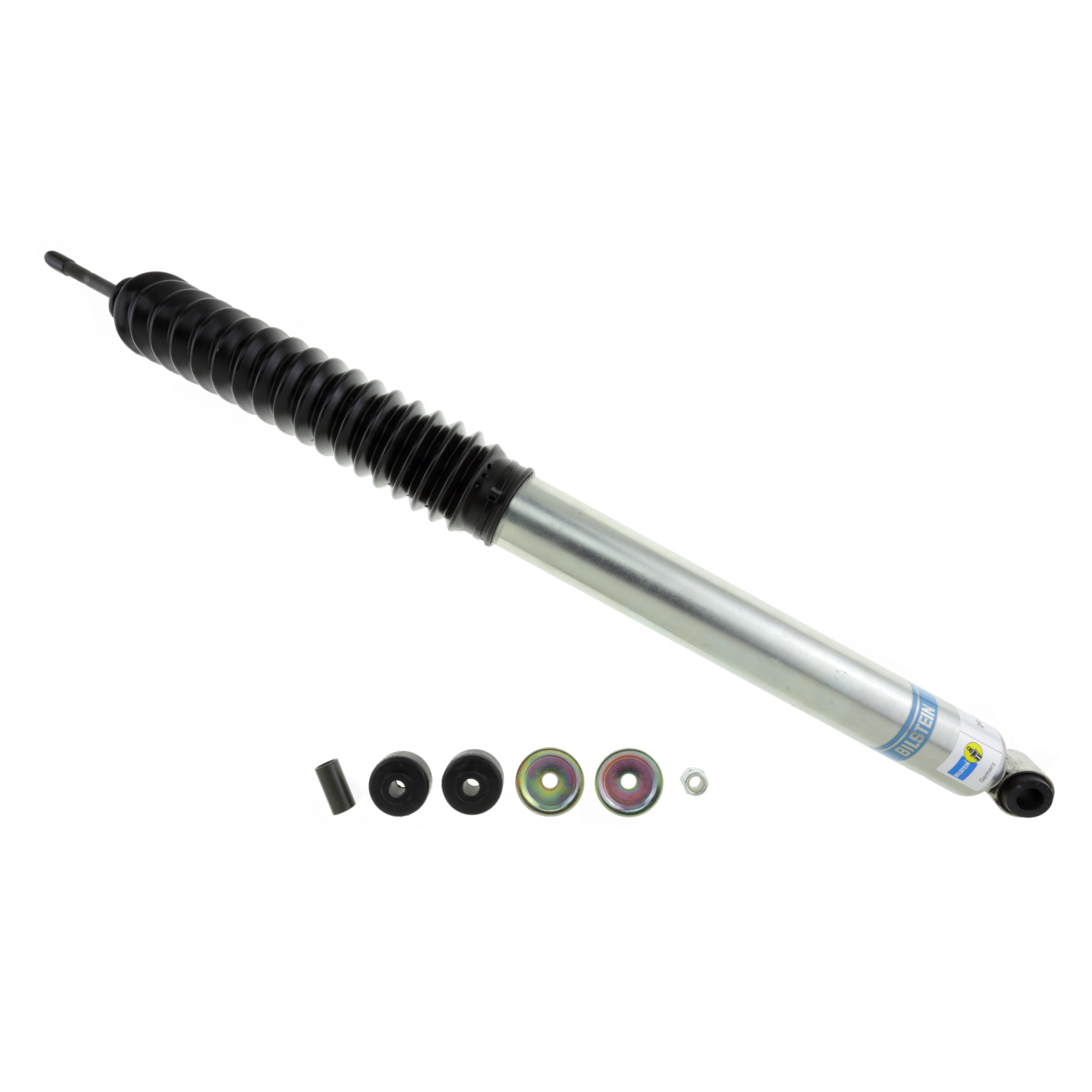

Bilstein Suspension Shock Absorber - 24-214667

B8 5125 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-214667
Old price: $120.47
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

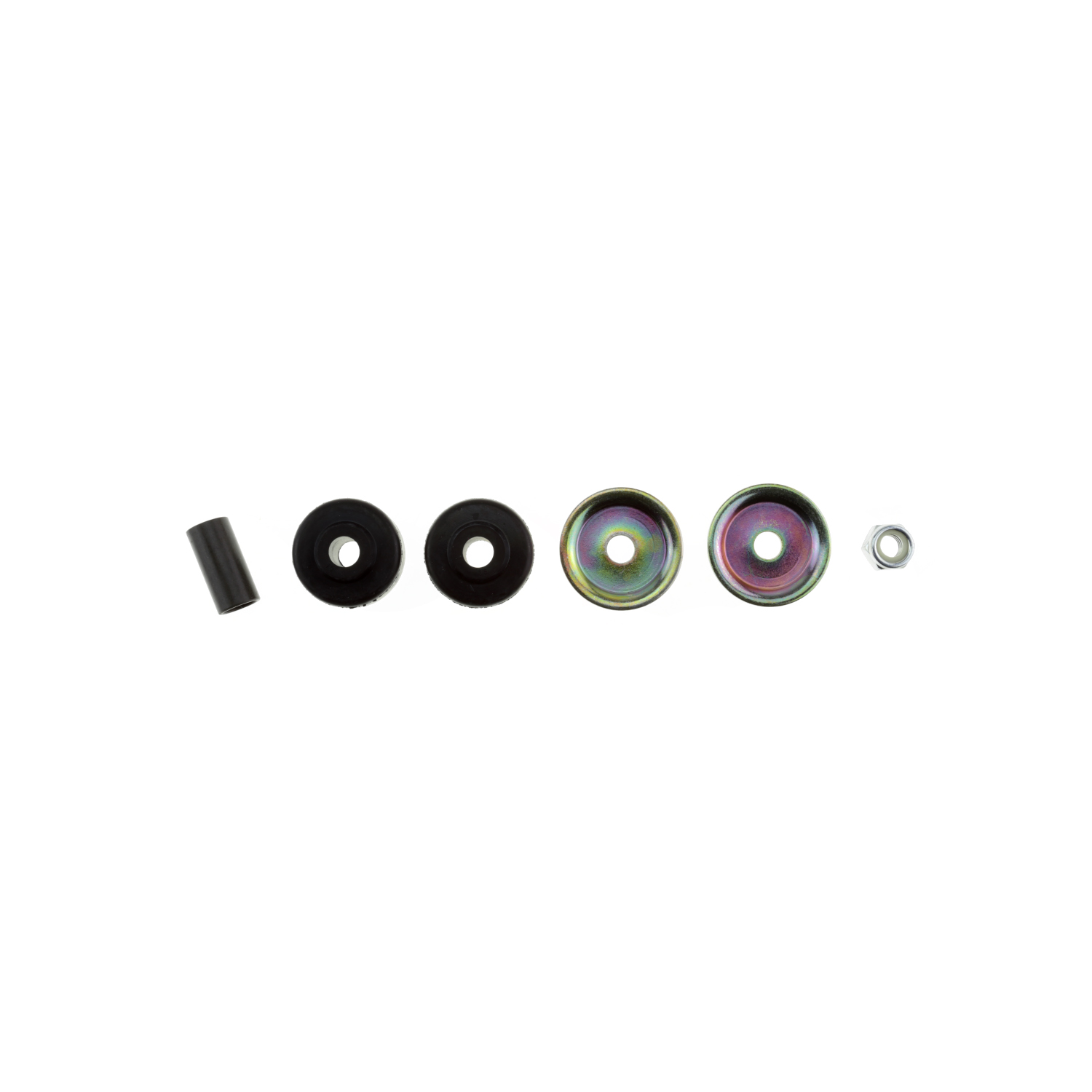

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Products specifications

Attribute name Attribute value
Boot Included Black Bellows
Extended Length (IN) 25.98
Body Design Smooth Body (Non-Coilover)
Upper Mount Type Stem
Lower Mount Type Eye 5/8in
Extended Length (mm) 659.9
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 410.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 249.9
Stroke/Travel Length (IN) 9.84
Collapsed Length (IN) 16.14
Internal Design Monotube
Series B8 5125
Compression @0.52m/s 940
Rebound @0.52m/s 1780
Finish Zinc Plated
Reservoir No
Country of Origin US
Condition New
Quantity per Application 2
