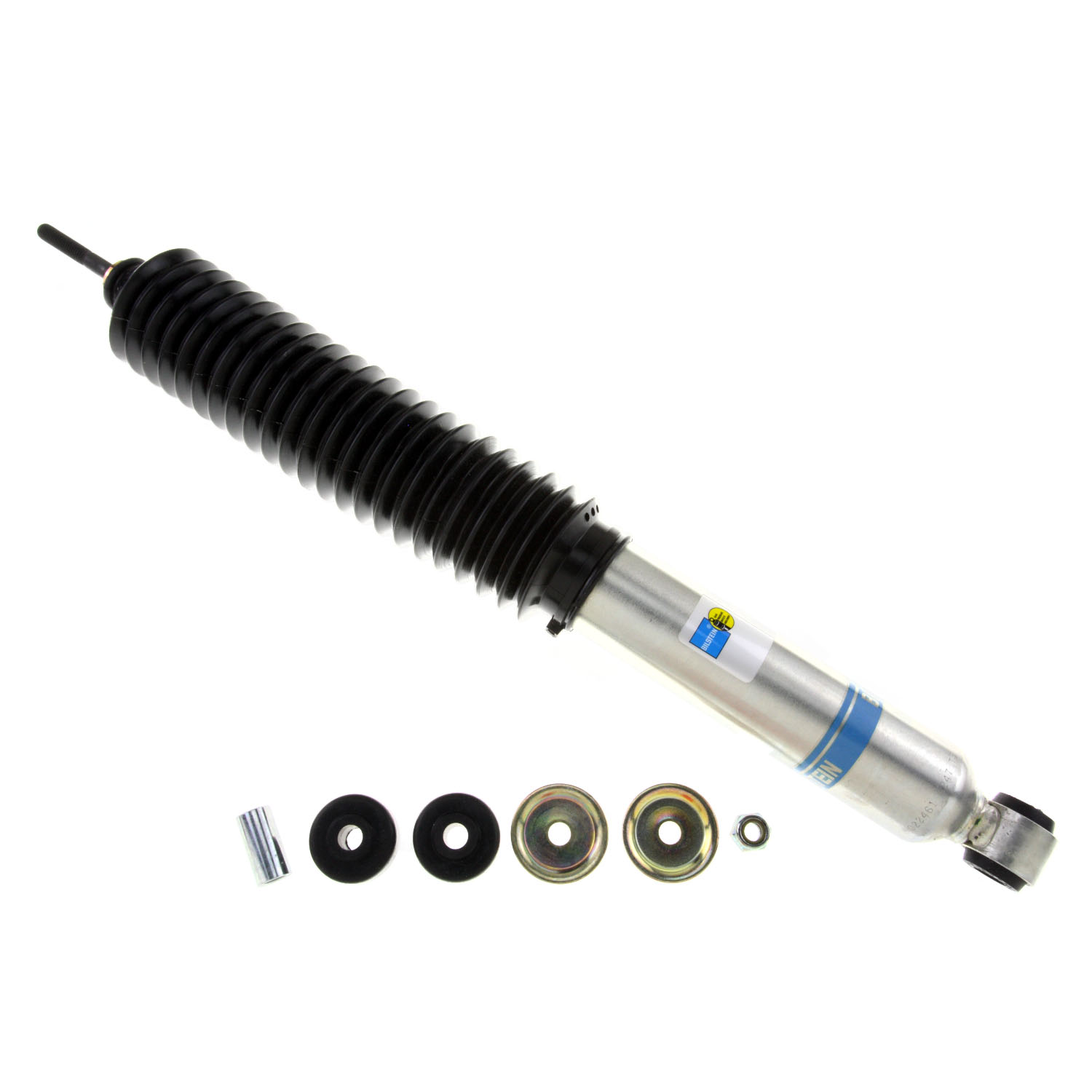

Bilstein Suspension Shock Absorber - 24-214728

B8 5125 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-214728
Old price: $120.47
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

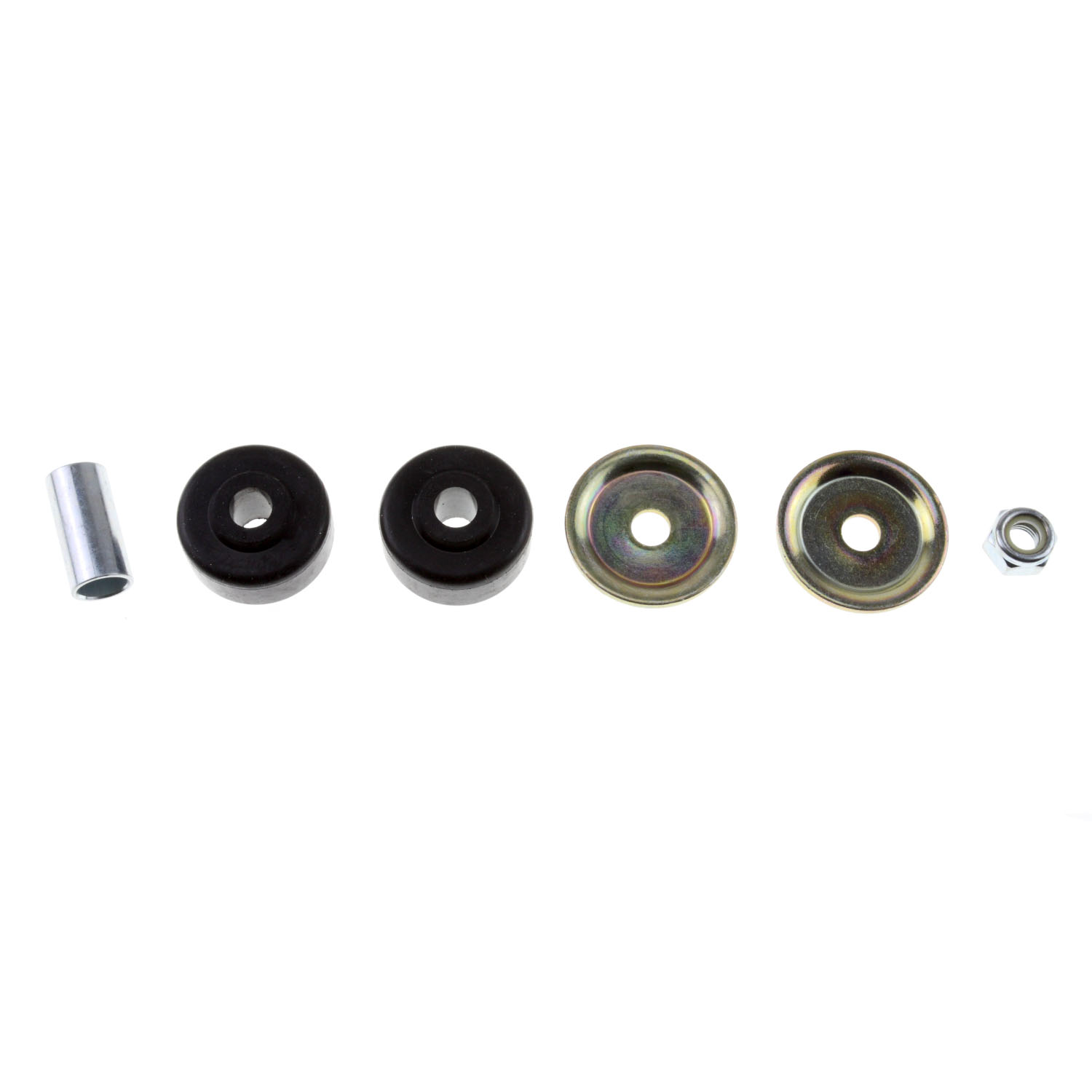

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 13.03
Extended Length (IN) 20.69
Compression @0.52m/s 1495
Upper Mount Type Stem
Boot Included Black Bellows
Rebound @0.52m/s 3265
Body Design Smooth Body (Non-Coilover)
Internal Design Monotube
Prop 65 Y/N Y
Lower Mount Type Eye 5/8in
Reservoir No
Finish Zinc Plated
Series B8 5125
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Shaft Diameter 14mm
Stroke/Travel Length (mm) 194.6
Stroke/Travel Length (IN) 7.66
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 331.0
Country of Origin US
Condition New
Quantity per Application 2
