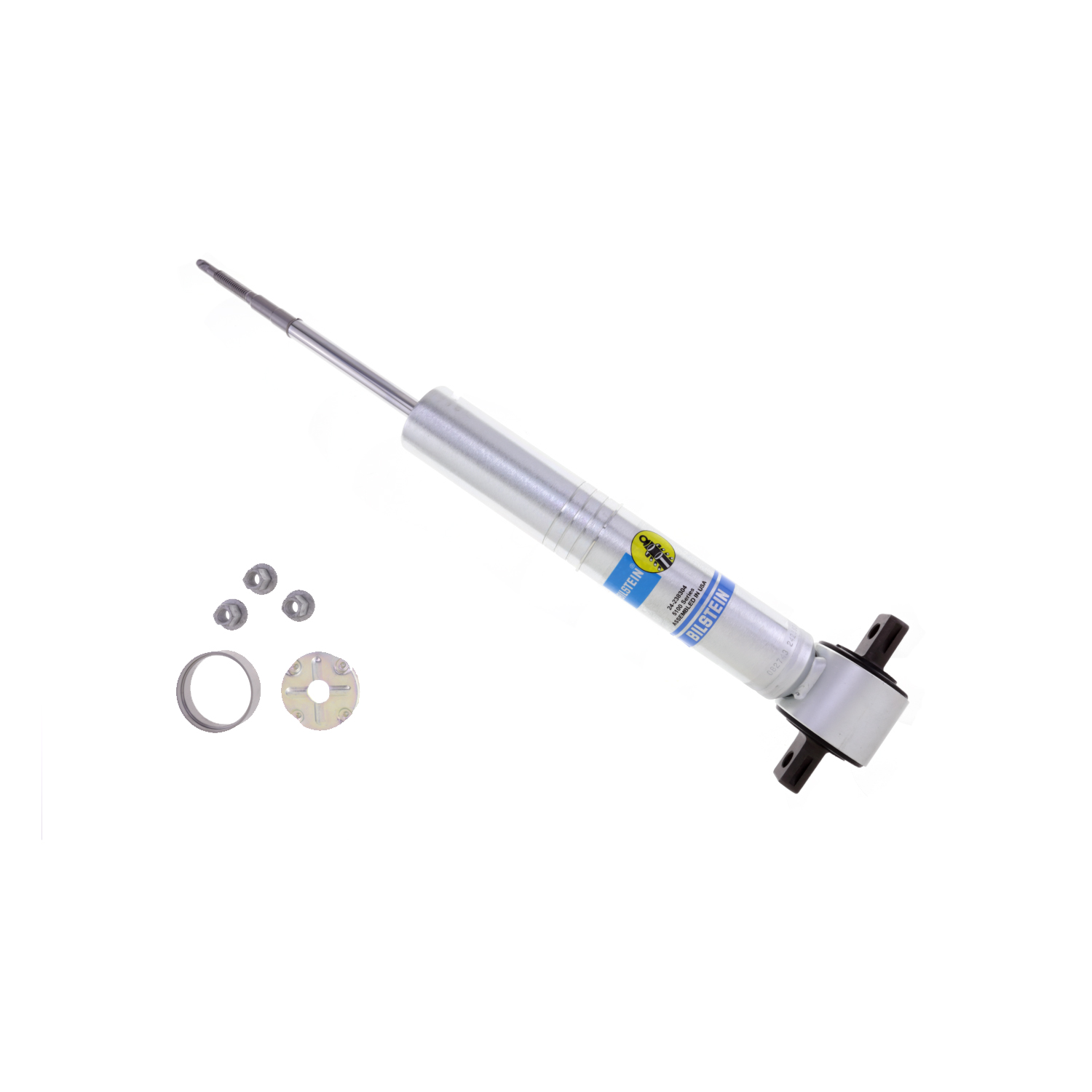

Bilstein Suspension Shock Absorber - 24-238304

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-238304
Old price: $223.60
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Products specifications

Attribute name Attribute value
Internal Design Monotube
Lower Mount Type Bar Pin
Extended Length (IN) 18.86
Series B8 5100 (Ride Height Adjustable)
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 15.00
Piston Diameter 46mm
Collapsed Length (mm) 381.0
Shaft Diameter 14mm
Stroke/Travel Length (IN) 3.86
Stroke/Travel Length (mm) 98.0
Finish Zinc Plated
Boot Included No
Extended Length (mm) 479.0
Upper Mount Type Stem
Body Design Snap Ring Grooved Body (Coilover)
Reservoir No
Country of Origin MX
Condition New
Quantity per Application 2
