Bilstein Suspension Shock Absorber - 24-266666

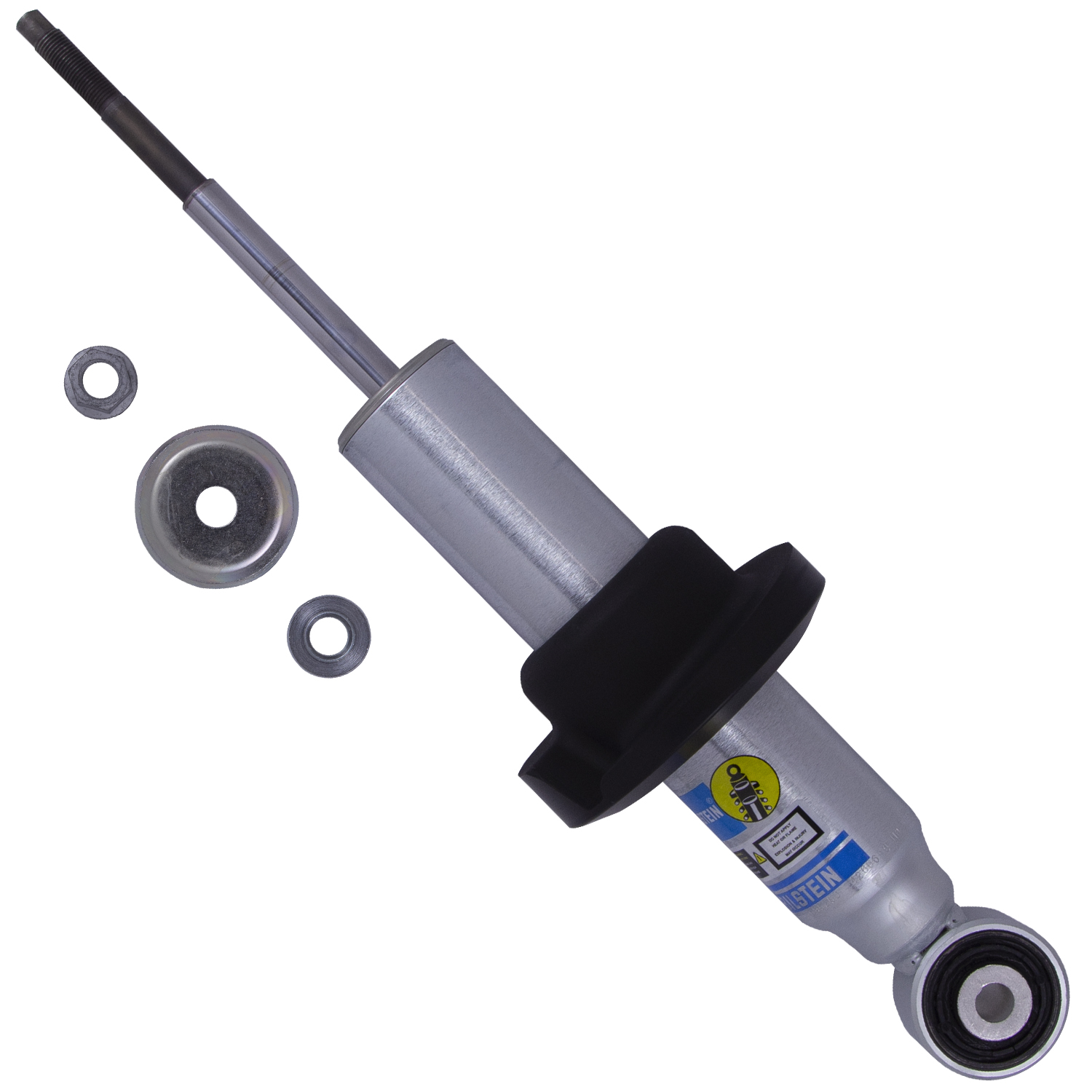

B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-266666
Old price: $325.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

Products specifications

Attribute name Attribute value
Finish Zinc Plated
Extended Length (IN) 18.43
Extended Length (mm) 468.0
Collapsed Length (mm) 366.2
Internal Design Monotube
Boot Included No
Reservoir No
Collapsed Length (IN) 14.42
Adjustable Damping Non-Adjustable

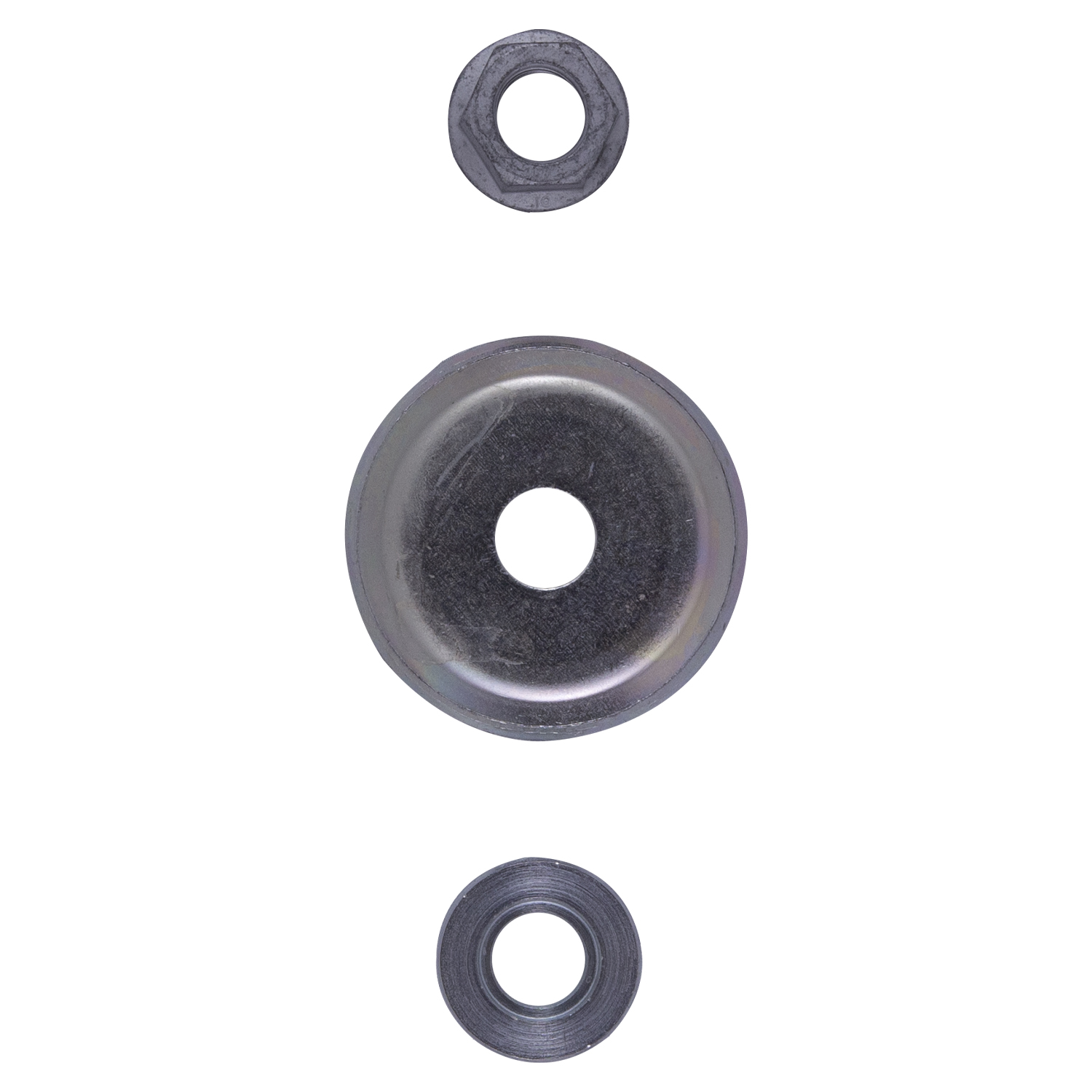

Spring Seat Included Yes
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Stroke/Travel Length (mm) 101.9
Shaft Diameter 18mm
Stroke/Travel Length (IN) 4.01
Lower Mount Type Eye 16mm
Series B8 6100 (Ride Height Adjustable)
Upper Mount Type Stem
Body Design Snap Ring Grooved Body (Coilover)
Piston Diameter 60mm
Country of Origin US
Condition New
Quantity per Application 2
