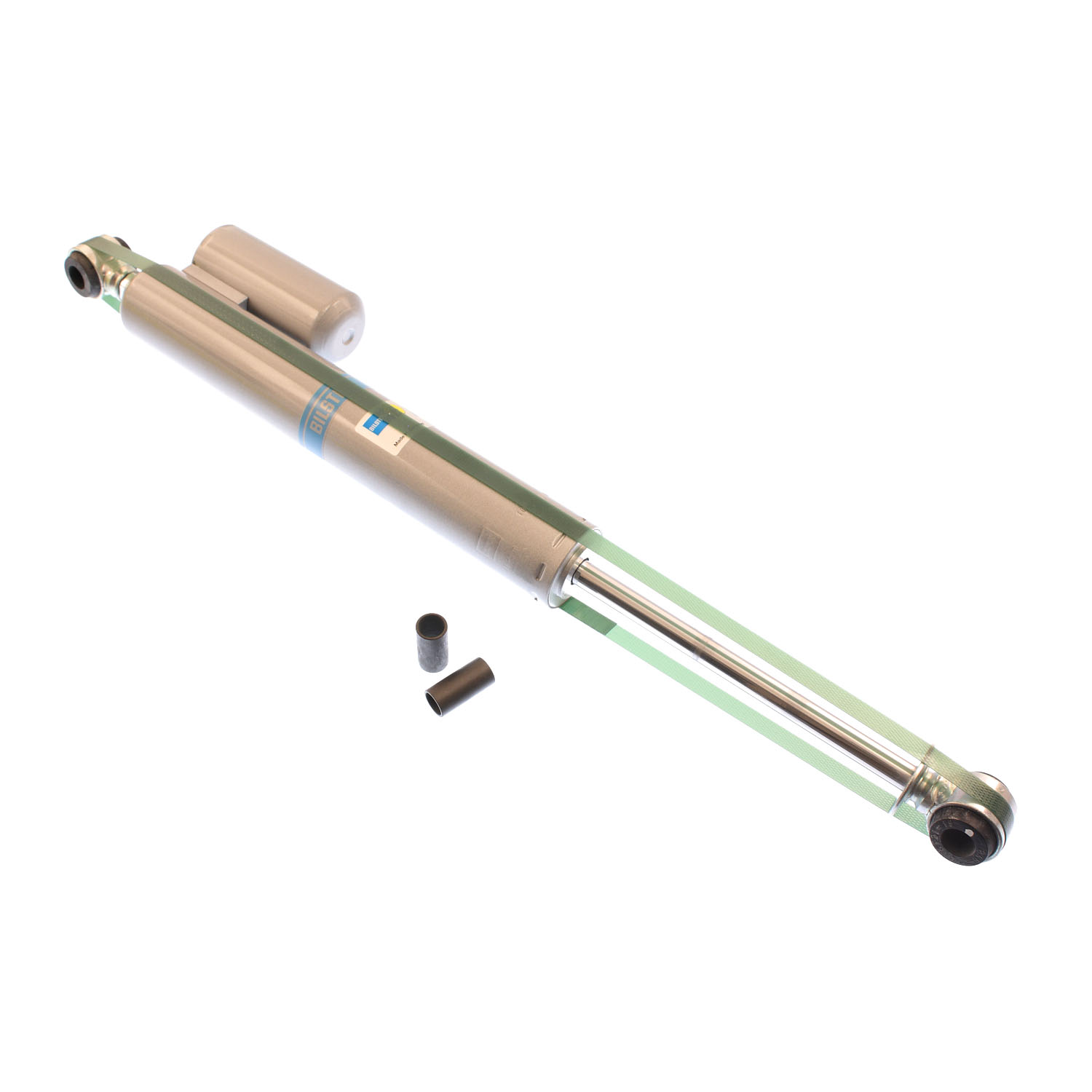

Bilstein Suspension Shock Absorber - 25-101980

B8 5150 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-101980
Old price: $1.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 5150 fixed reservoir shock absorbers combine our high gas pressure monotube shocks with a race-inspired, fixed CrossFlow reservoir. Designed specifically for lifted and custom applications, the adjustable shock mount allows unlimited reservoir positioning. The 46mm digressive piston is available in a variety of valvings for single or multiple shock applications. The Bilstein B8 5150 shock absorber features a steel body with a platinum powder coated finish.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 20.37
Extended Length (IN) 34.90
Collapsed Length (mm) 517.5
Compression @0.52m/s 740
Reservoir Yes
Extended Length (mm) 886.5
Upper Mount Type Eye 5/8in
Rebound @0.52m/s 2665
Internal Design Monotube
Series B8 5150
Body Design 46mm ID Smooth Body (Non-Coilover)
Finish Platinum Powder coat
Lower Mount Type Eye 5/8in
Boot Included No
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Stroke/Travel Length (IN) 14.53
Shaft Diameter 14mm
Stroke/Travel Length (mm) 369.1
Country of Origin DE
Condition New
Quantity per Application 2
