Bilstein Suspension Shock Absorber - 25-186291

B8 5150 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-186291
Old price: $1.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

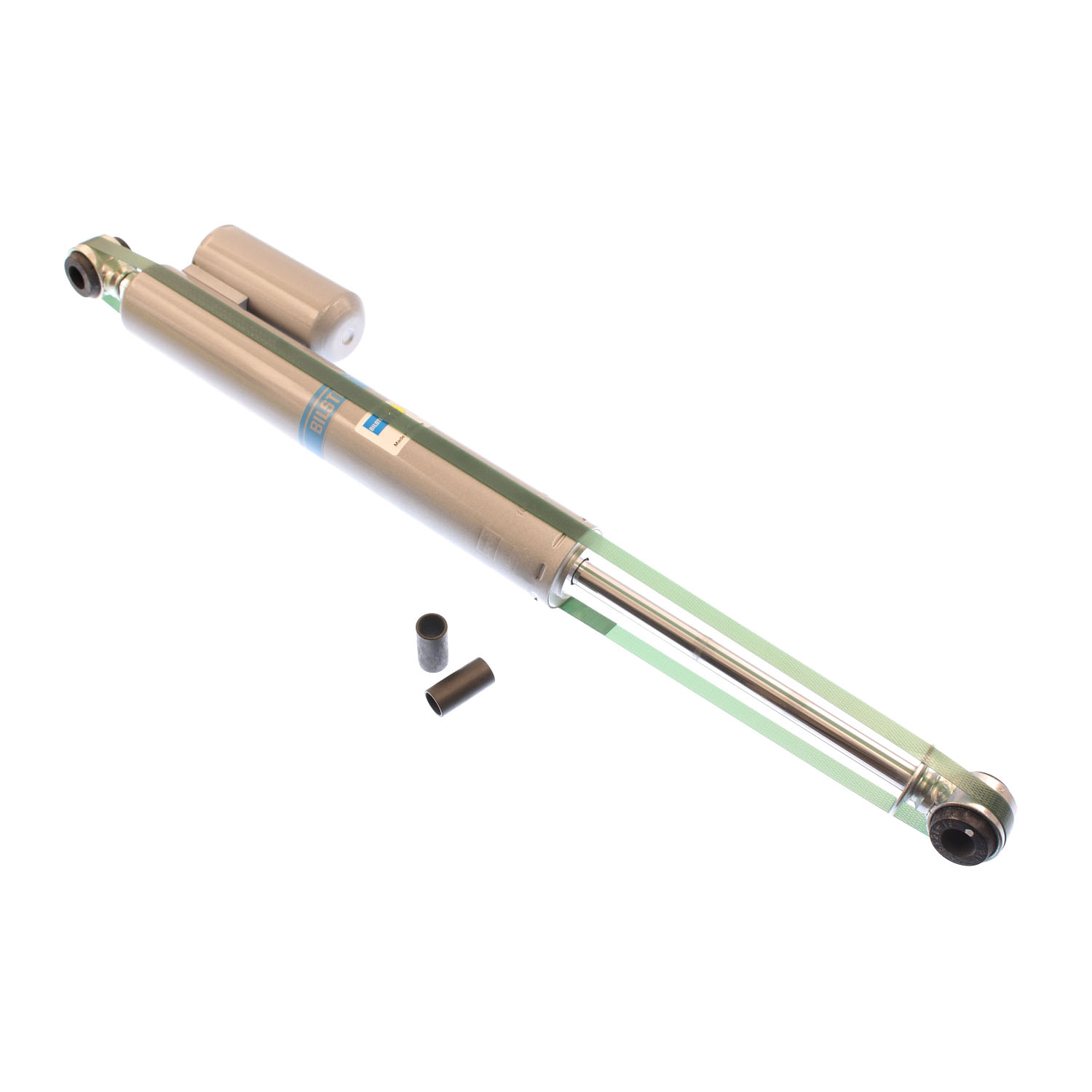

Bilstein B8 5150 fixed reservoir shock absorbers combine our high gas pressure monotube shocks with a race-inspired, fixed CrossFlow reservoir. Designed specifically for lifted and custom applications, the adjustable shock mount allows unlimited reservoir positioning. The 46mm digressive piston is available in a variety of valvings for single or multiple shock applications. The Bilstein B8 5150 shock absorber features a steel body with a platinum powder coated finish.

Products specifications

Attribute name Attribute value
Boot Included No
Rebound @0.52m/s 2665
Finish Platinum Powder coat
Series B8 5150
Collapsed Length (IN) 14.17
Compression @0.52m/s 740
Extended Length (IN) 22.50
Upper Mount Type Eye 5/8in
Body Design 46mm ID Smooth Body (Non-Coilover)
Internal Design Monotube
Lower Mount Type Eye 5/8in
Extended Length (mm) 571.5
Reservoir Yes
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 360.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 211.6
Stroke/Travel Length (IN) 8.33
Country of Origin DE
Condition New
Quantity per Application 2
