Bilstein Suspension Shock Absorber - 25-187588

B8 5150 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-187588
Old price: $1.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

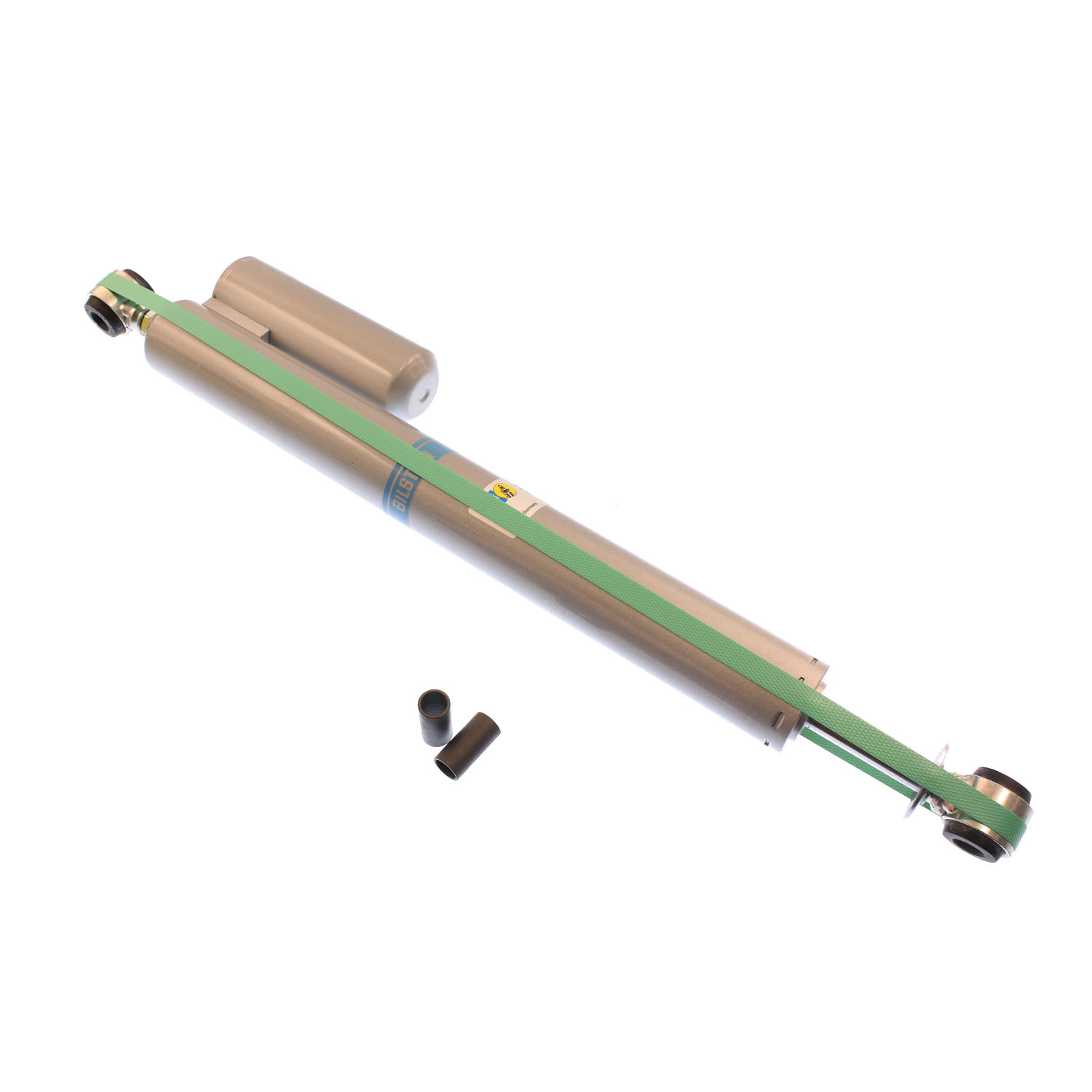

Bilstein B8 5150 fixed reservoir shock absorbers combine our high gas pressure monotube shocks with a race-inspired, fixed CrossFlow reservoir. Designed specifically for lifted and custom applications, the adjustable shock mount allows unlimited reservoir positioning. The 46mm digressive piston is available in a variety of valvings for single or multiple shock applications. The Bilstein B8 5150 shock absorber features a steel body with a platinum powder coated finish.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 20.37
Finish Platinum Powder coat
Reservoir Yes
Collapsed Length (mm) 517.5
Extended Length (mm) 886.5
Extended Length (IN) 34.90
Rebound @0.52m/s 1600
Compression @0.52m/s 575
Boot Included No
Body Design 46mm ID Smooth Body (Non-Coilover)
Lower Mount Type Eye 5/8in
Series B8 5150
Internal Design Monotube
Upper Mount Type Eye 5/8in
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Stroke/Travel Length (IN) 14.53
Shaft Diameter 14mm
Stroke/Travel Length (mm) 369.1
Country of Origin DE
Condition New
Quantity per Application 2
