Bilstein Suspension Shock Absorber - 25-284591

B8 8100 (Bypass) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-284591
Old price: $1,189.90
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

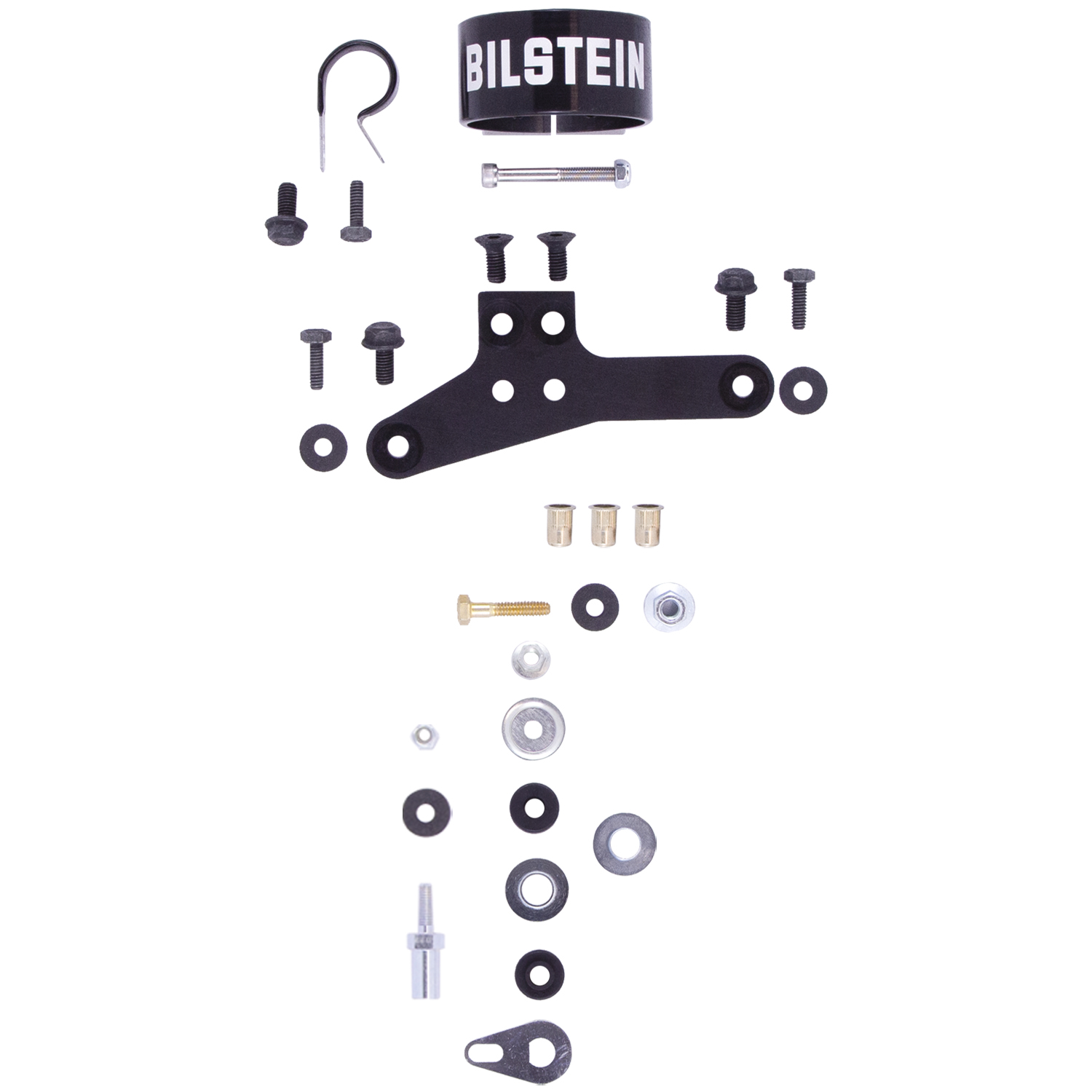

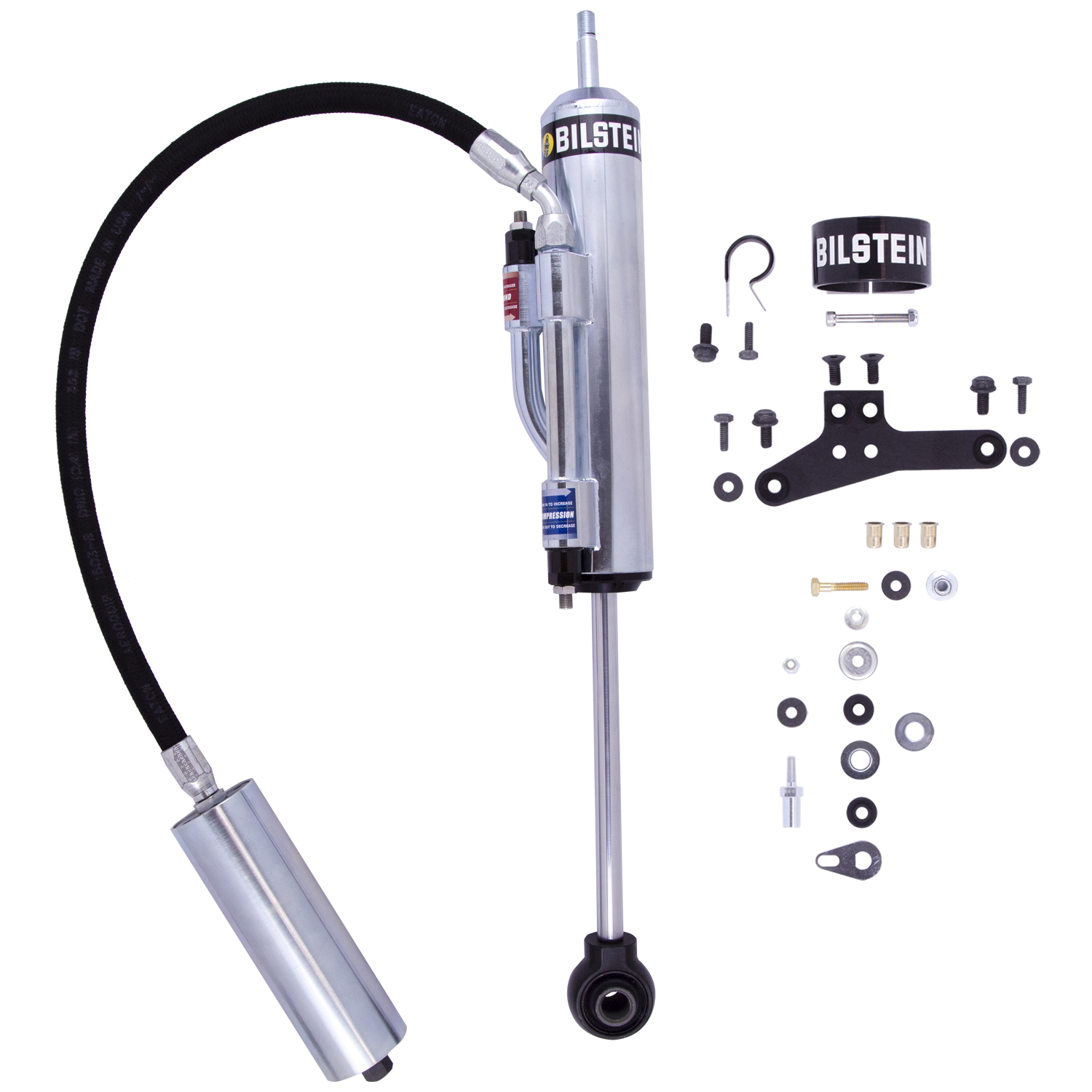

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Products specifications

Attribute name Attribute value
Extended Length (mm) 612.0
Extended Length (IN) 24.09
Series B8 8100 (Bypass)
Boot Included No
Upper Mount Type Stem
Body Design Bypass Body (Non-Coilover)
Lower Mount Type Eye 19.3mm
Internal Design Monotube
Adjustable Damping Double Adjustable – Compression and Rebound
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 60mm
Collapsed Length (mm) 374.0
Shaft Diameter 18mm
Reservoir Yes
Finish Zinc Plated
Collapsed Length (IN) 14.72
Country of Origin US
Condition New
