Bilstein Suspension Shock Absorber - 25-287547

B8 5160 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-287547
Old price: $270.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

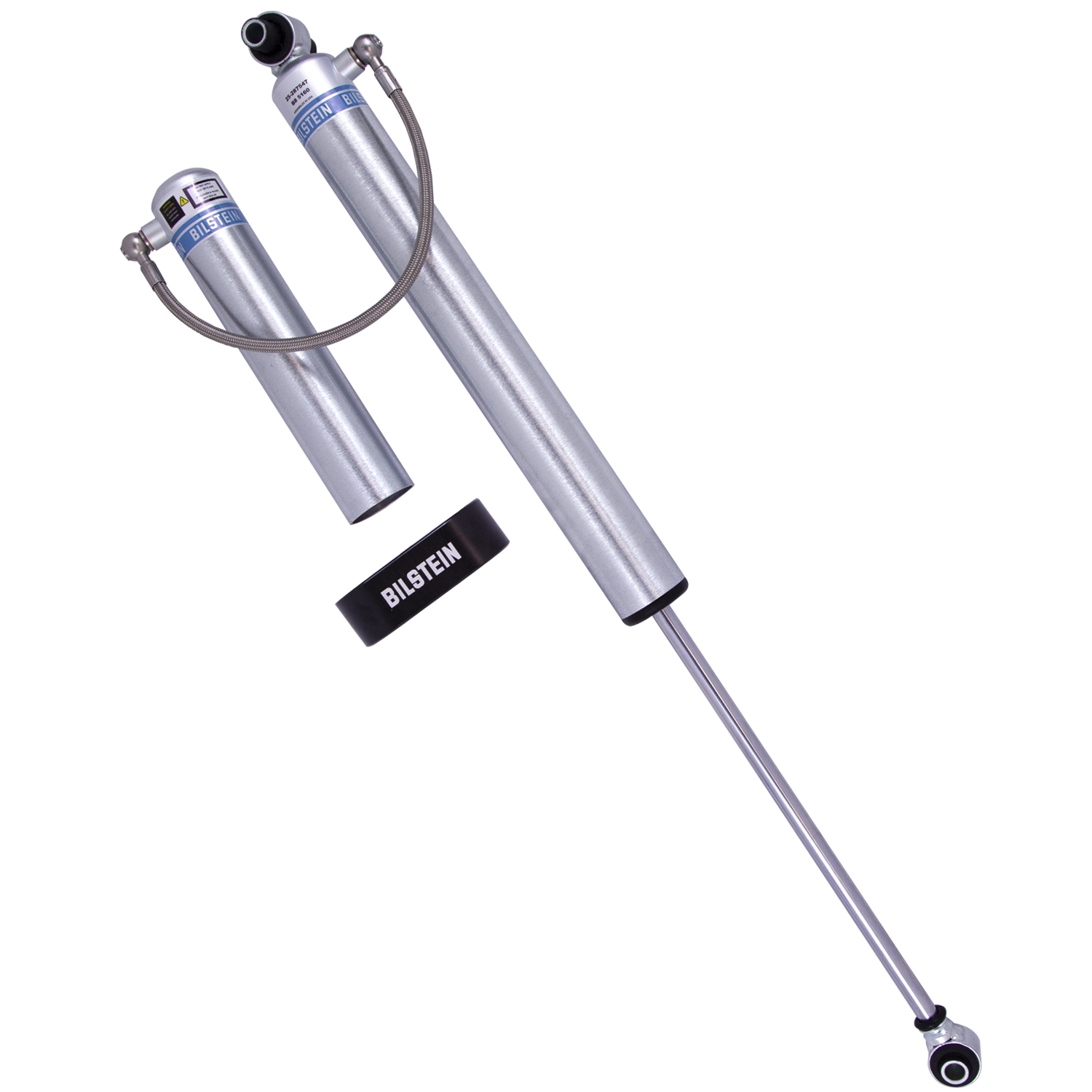

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Products specifications

Attribute name Attribute value

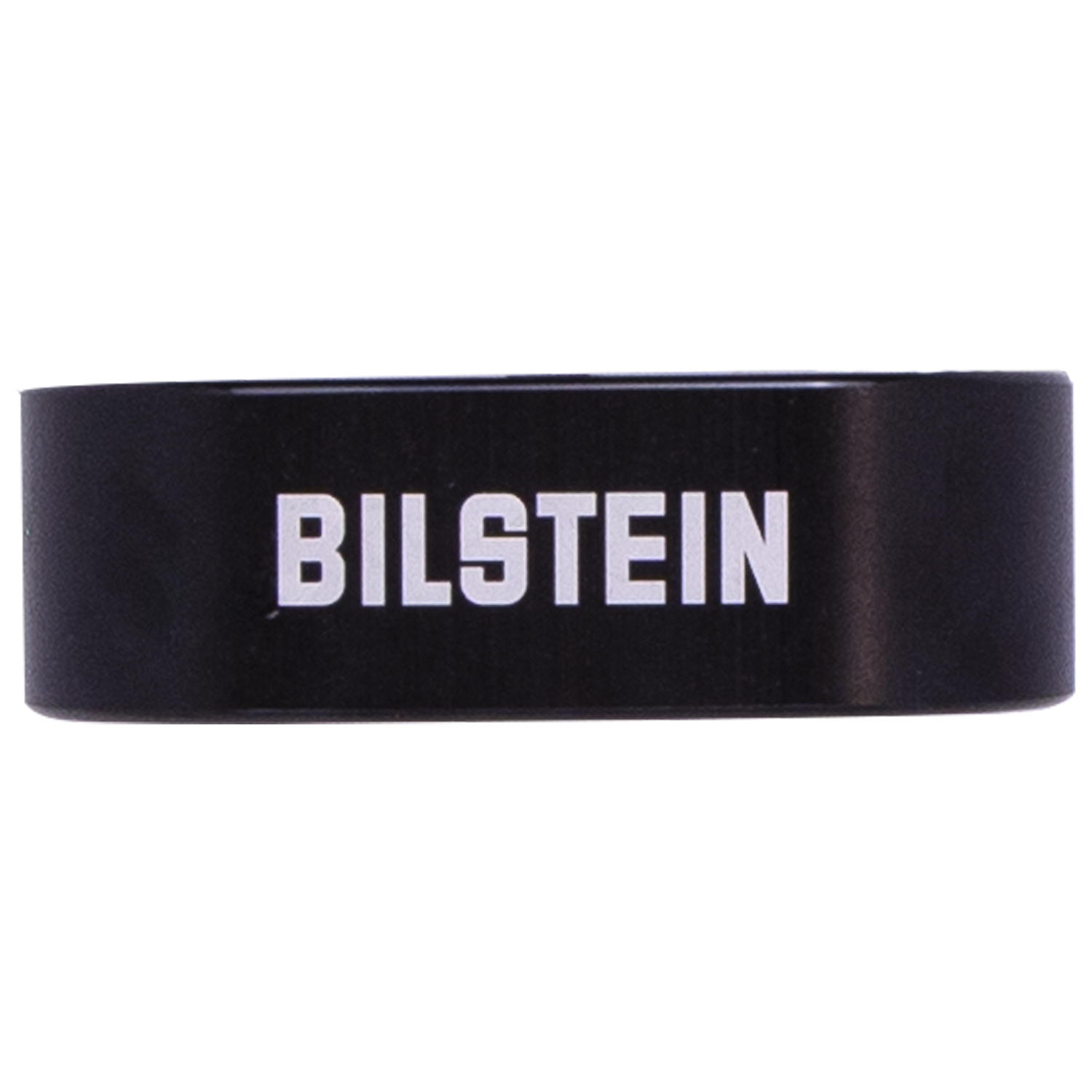

Billet Reservoir Clamp Included Yes
Lower Mount Type Eye 12.8mm
Series B8 5160
Extended Length (IN) 31.86
Extended Length (mm) 809.2
Reservoir Yes
Upper Mount Type Eye 12.8mm
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Collapsed Length (mm) 475.5
Piston Diameter 46mm
Stroke/Travel Length (IN) 13.14
Shaft Diameter 14mm
Stroke/Travel Length (mm) 333.8
Optional Reservoir Clamp N/A
Boot Included No
Finish Zinc Plated
Collapsed Length (IN) 18.72
Body Design Smooth Body (Non-Coilover)
Internal Design Monotube
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Country of Origin US
Condition New
Quantity per Application 2
