Bilstein Suspension Shock Absorber - 25-320442

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
B8 8100 (Bypass) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-320442
Old price: $1,274.00
$1,169.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

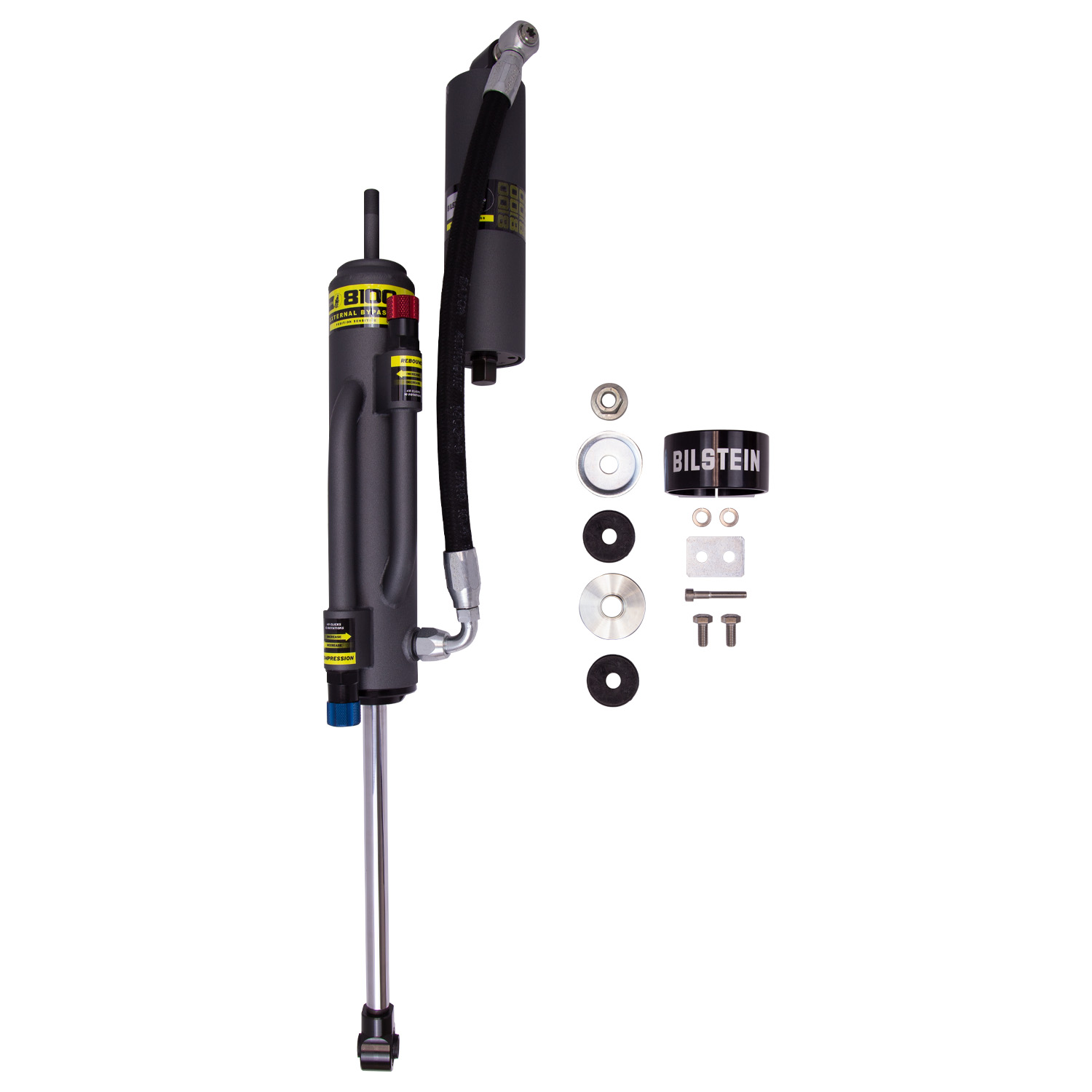

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Products specifications

Attribute name Attribute value
Spring Seat Included No
Lower Mount Type Eye 12mm
Boot Included No
Series B8 8100 (Bypass)
Internal Design Monotube
Body Design Bypass Body (Non-Coilover)
Finish EVO Grey
Collapsed Length (IN) 14.25
Extended Length (mm) 608.0
Adjustable Damping Double Adjustable Compression and Rebound with Click Adjuster Knobs
Reservoir Yes
Upper Mount Type Stem
Extended Length (IN) 23.94
PartType Shocks / Struts
Segment Light Truck
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 362.0
Piston Diameter 60mm
Shaft Diameter 18mm
Country of Origin US
Condition New
🚗 Compatible with
19 vehicles are compatible with this product · 2005–2023
