Bilstein Suspension Shock Absorber - 33-124254

Name: Bilstein Suspension Shock Absorber - 33-124254
SKU: 33-124254
Price: 0.01 USD
Availability: OutOfStock

Motorsports (Reservoir) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: 33-124254

Old price: $3,062.33

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

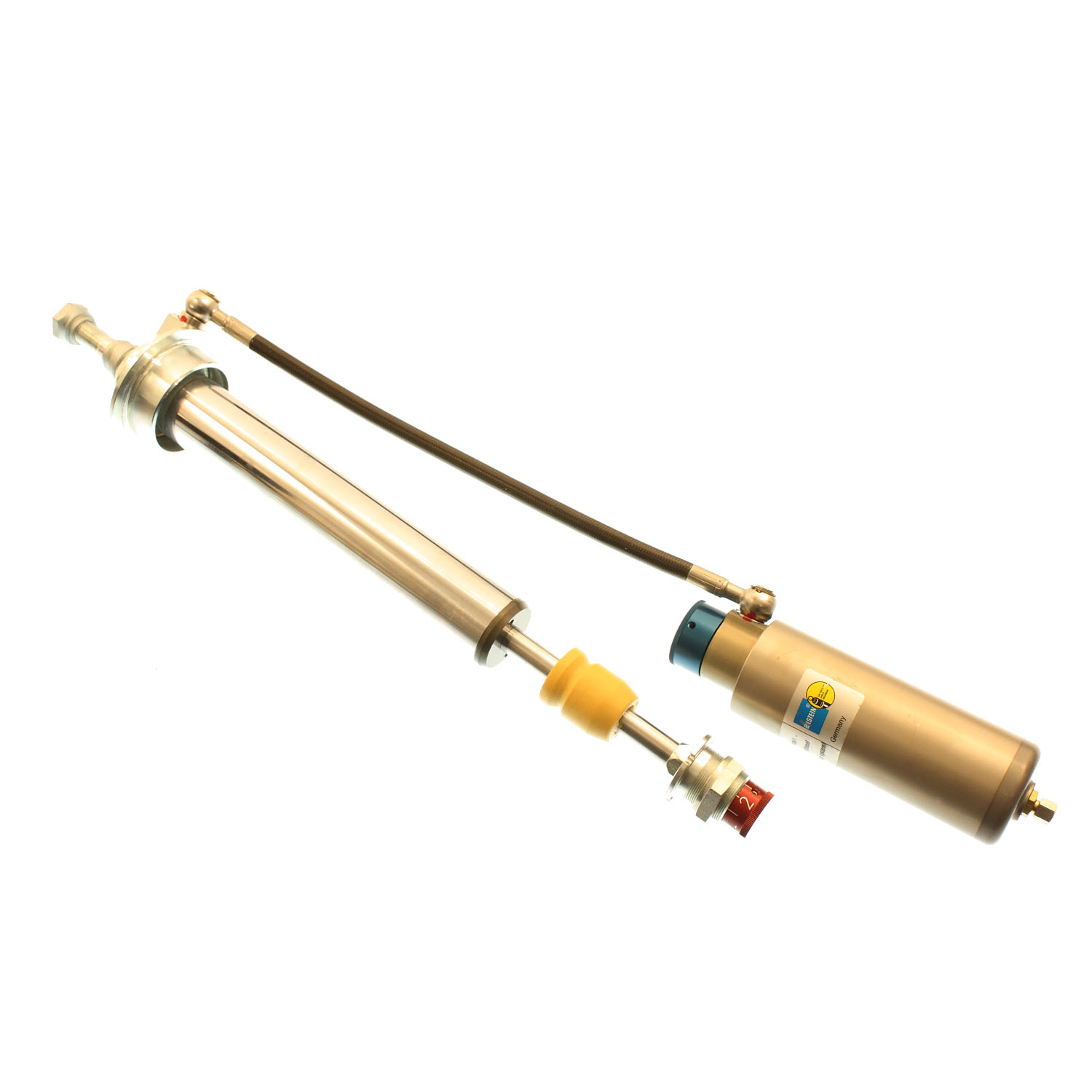

Bilstein Motorsports (Reservoir) dampers are designed as a direct fit solution for a variety of motorsports applications. These dampers feature an external reservoir with separate rebound and compression adjustments to optimize tuning and setup capabilities. Motorsport (Reservoir) dampers are ideal for racers requiring an application specific option with on-vehicle tuning characteristics.

Products specifications

Attribute name	Attribute value
Finish	Zinc Plated
Collapsed Length (IN)	6.97
Lower Mount Type	Base Cup
Body Material	Steel
Valving Identifier	N/A
Position	Front
Extended Length (IN)	11.04
Upper Mount Type	Stem
Body Design	Threaded Body (Coilover)
Spring Seat Included	Yes
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Piston Diameter	36mm
Collapsed Length (mm)	177.0
Stroke/Travel Length (mm)	103.4
Shaft Diameter	14mm
Stroke/Travel Length (IN)	4.07
Extended Length (mm)	280.5
Piston Type	Linear
Series	Motorsports (Reservoir)
Internal Design	Monotube
Boot Included	No
Adjustable Damping	Double Adjustable – Compression and Rebound
Country of Origin	DE
Condition	New
Quantity per Application	2
