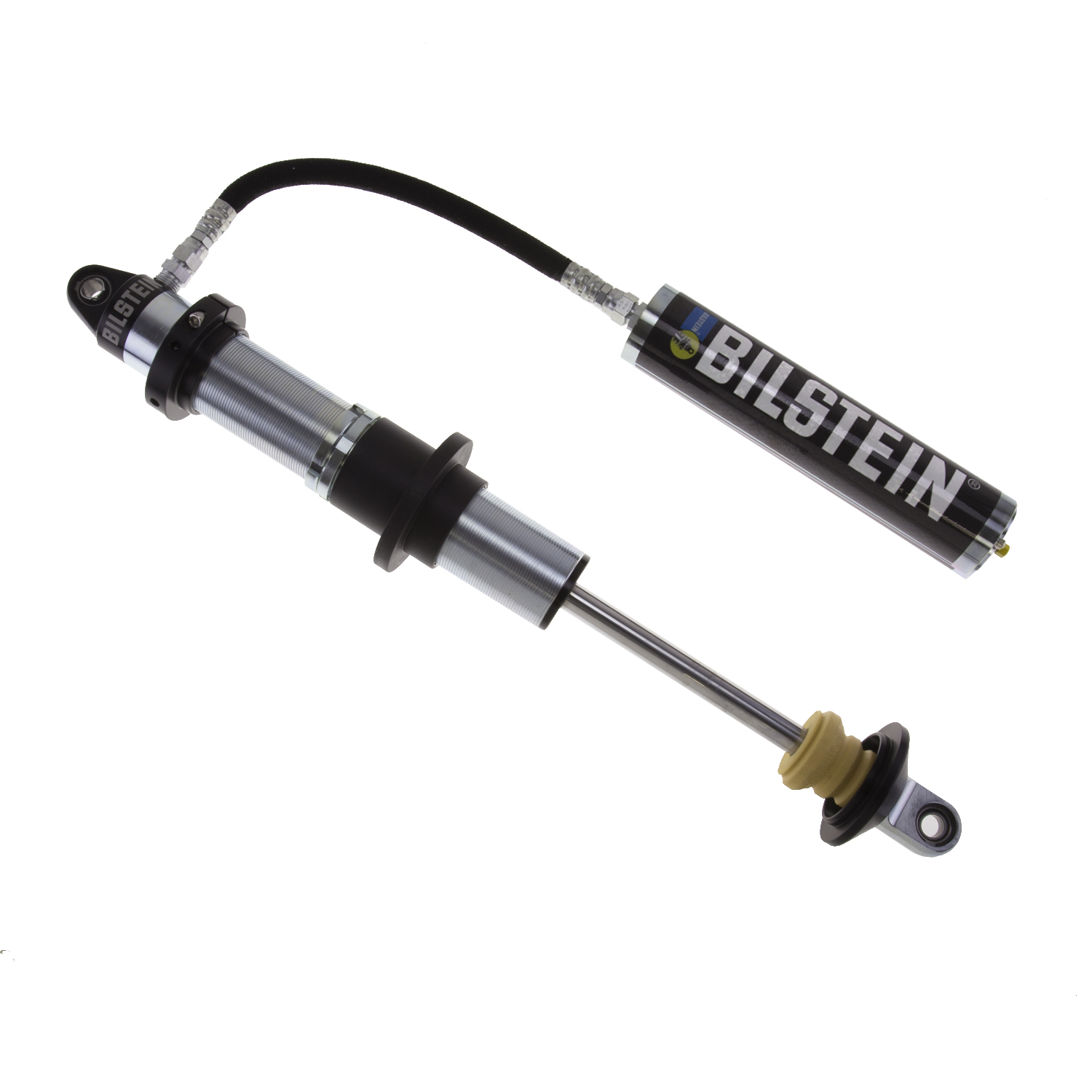

Bilstein Suspension Shock Absorber - 33-225517

B8 8125 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-225517
$604.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

Application: No Applications

Products specifications

Attribute name Attribute value
Rebound @0.52m/s 3700
Lower Mount Type Eye .5x1.5in
Collapsed Length (mm) 469.9
Body Design Threaded Body Screw Top (Coilover)
Series B8 8125
Extended Length (mm) 723.9
Optional Reservoir Clamp B4-KT1-Z292A00
Reservoir Yes
Internal Design Monotube
Extended Length (IN) 28.50
Finish Zinc Plated
Mount Type Eye-to-Eye
Compression @0.52m/s 1100
Upper Mount Type Eye .5x1.5in
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 18.50
Piston Diameter 60mm
Stroke/Travel Length (IN) 10.00
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 254.0
Country of Origin US
Condition New
Quantity per Application 2
