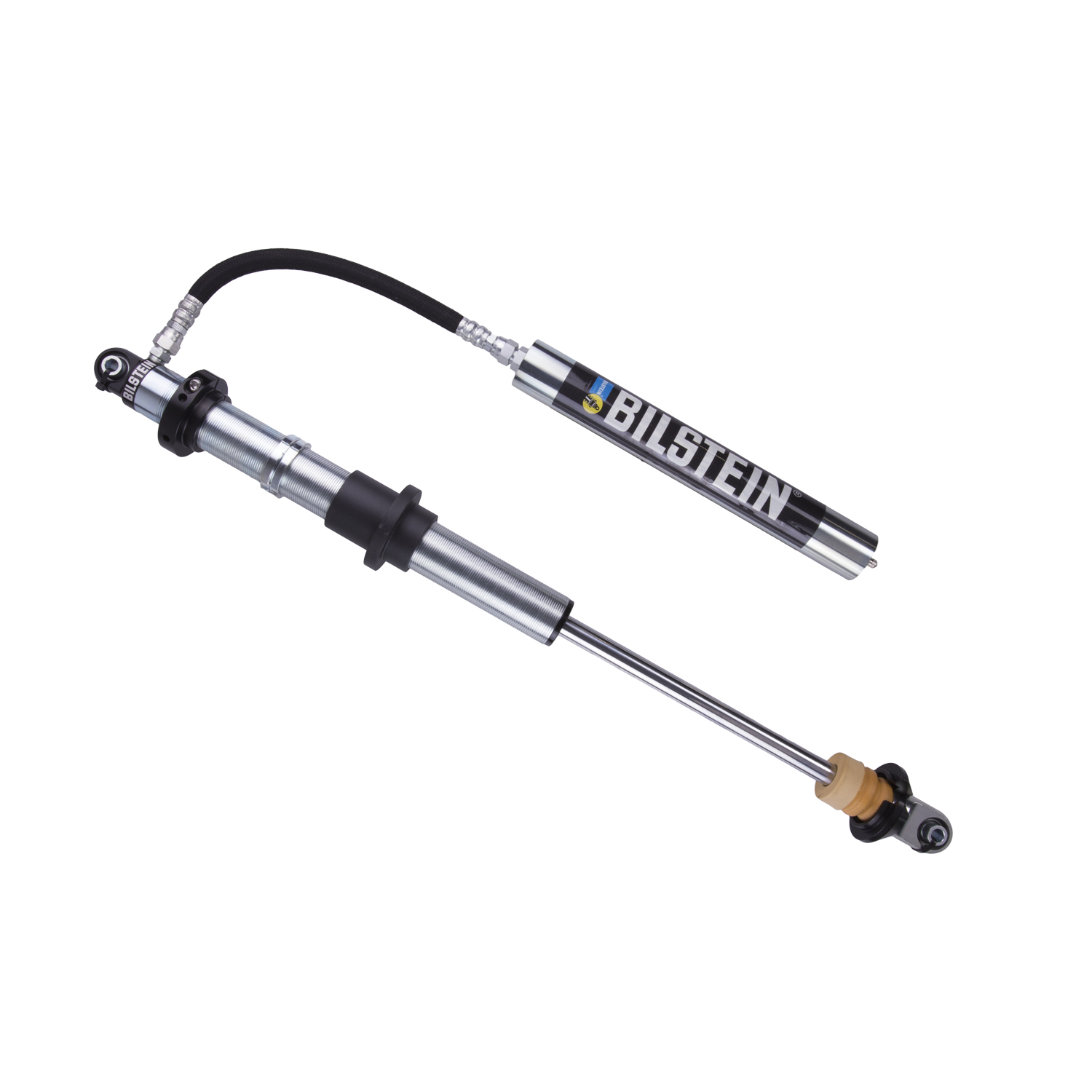

Bilstein Suspension Shock Absorber - 33-225562

B8 8125 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-225562
$502.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

Application: No Applications

Products specifications

Attribute name Attribute value
Mount Type Eye-to-Eye
Rebound @0.52m/s 2550
Reservoir Yes
Body Design Threaded Body Screw Top (Coilover)
Extended Length (IN) 35.50
Lower Mount Type Eye .5x1.5in
Internal Design Monotube
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Collapsed Length (IN) 21.50
Stroke/Travel Length (IN) 14.00
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 355.6
Optional Reservoir Clamp B4-KT1-Z315A00
Upper Mount Type Eye .5x1.5in
Compression @0.52m/s 1000
Collapsed Length (mm) 546.1
Series B8 8125
Extended Length (mm) 901.7
Finish Zinc Plated
Country of Origin US
Condition New
Quantity per Application 2
