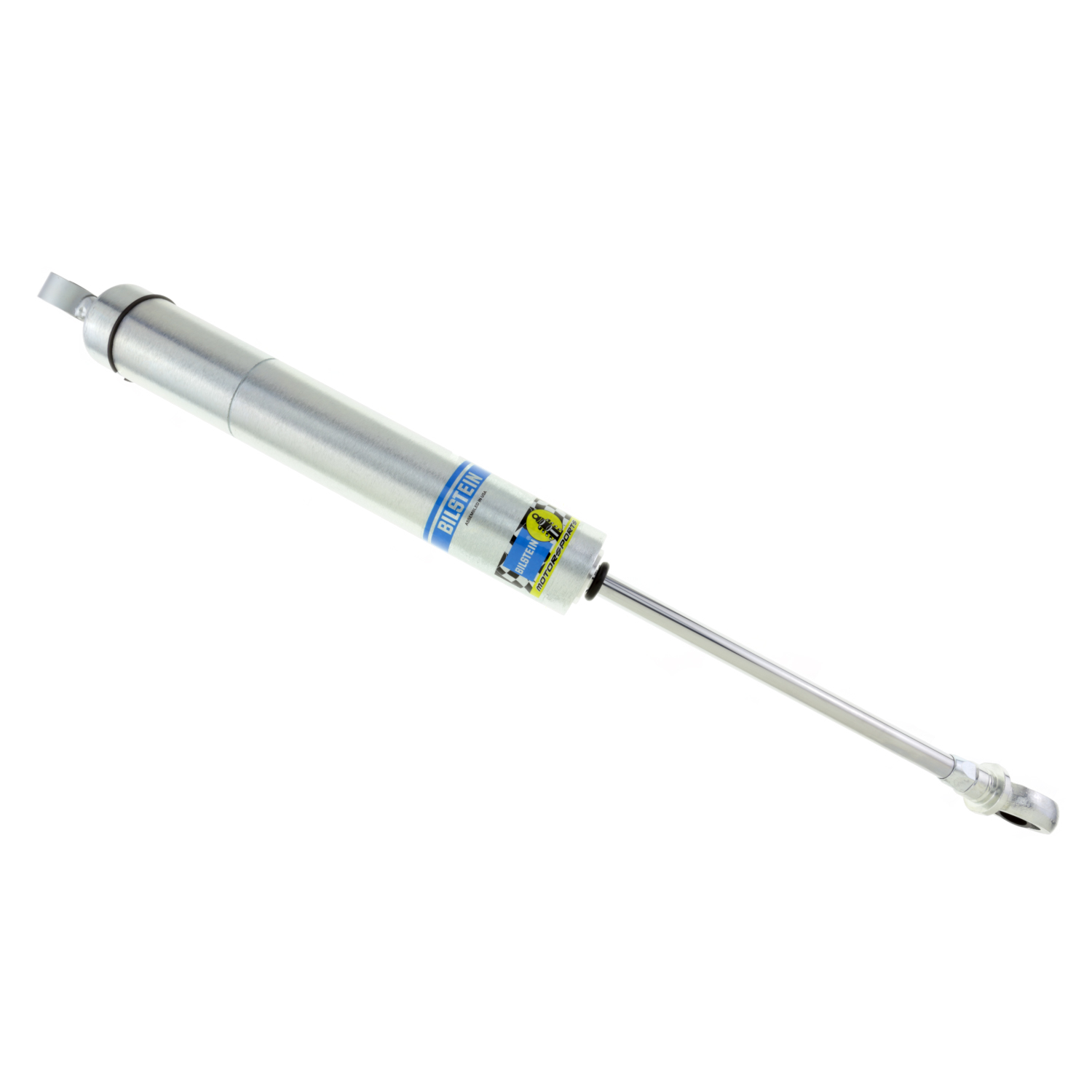

Bilstein Suspension Shock Absorber - 33-239545

SL Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-239545
Old price: $170.50
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name Attribute value
Upper Mount Type 1/2in Heim
Body Design Smooth Body (Non-Coilover)
Piston Type Digressive
Internal Design Monotube
Rebound @0.26m/s 355
Compression @0.26m/s 990
Extended Length (mm) 597.5
Series SL Series
Adjustable Damping Non-Adjustable
Valving Identifier DP1-RR
Extended Length (IN) 23.52
Collapsed Length (IN) 14.88
Finish Zinc Plated
Lower Mount Type 1/2in Heim
Boot Included No
Body Material Steel
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Collapsed Length (mm) 378.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 219.5
Stroke/Travel Length (IN) 8.64
Country of Origin US
Condition New
Quantity per Application 2
