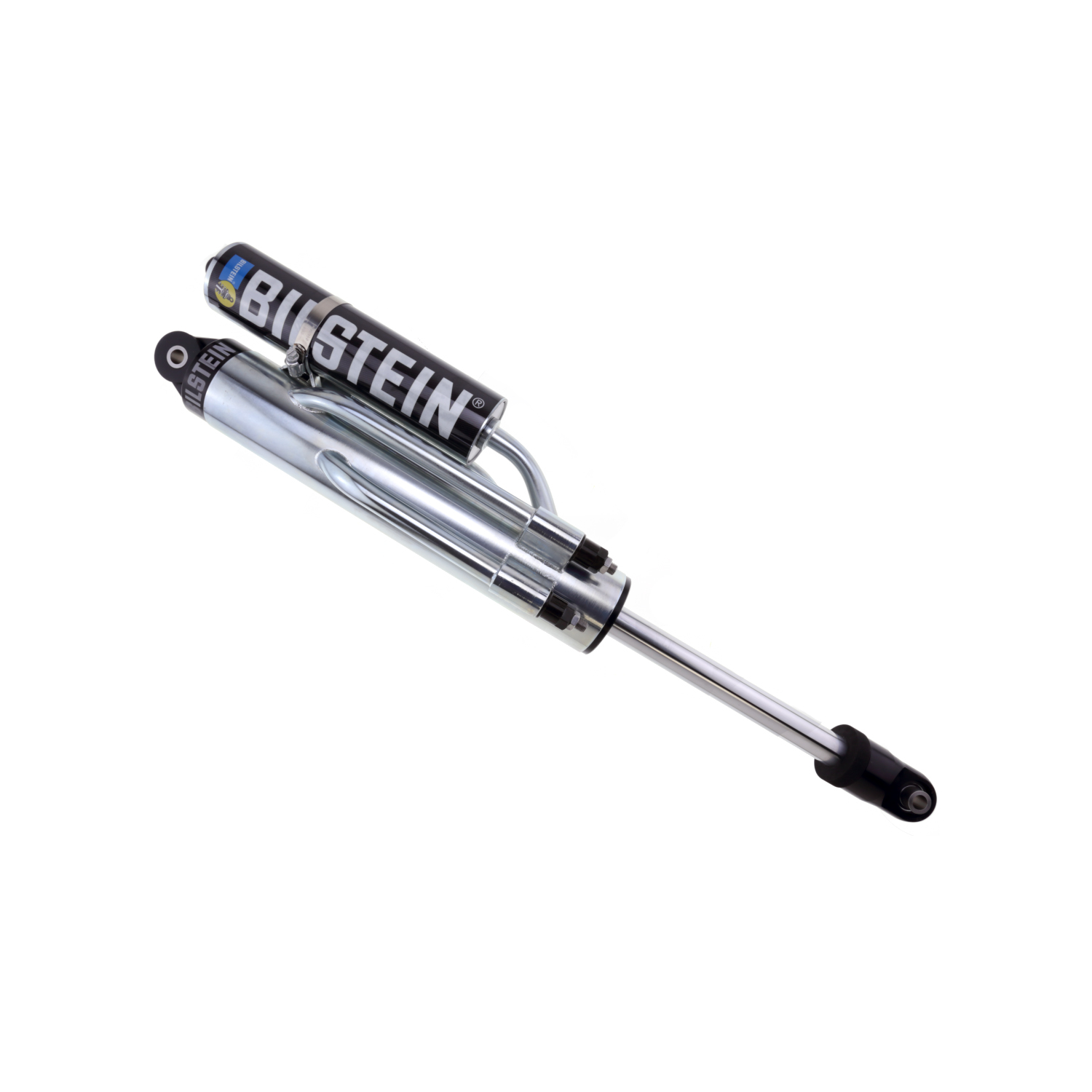

Bilstein Suspension Shock Absorber - 33-241210

M 9200 (Bypass) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-241210
Old price: $1,200.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Products specifications

Attribute name Attribute value
Reservoir Yes
Finish Zinc Plated
Boot Included N/A
Compression @0.52m/s Custom
Body Design 4-Tube Bypass Screw Top
Series M 9200 (Bypass)
Internal Design Monotube
Lower Mount Type Eye .5x1.5in
Upper Mount Type Eye .5x1.5in
Extended Length (mm) 749.3
Extended Length (IN) 29.50
Optional Reservoir Clamp N/A
Collapsed Length (mm) 495.3
Rebound @0.52m/s Custom
Mount Type Eye-to-Eye
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 70mm
Collapsed Length (IN) 19.50
Shaft Diameter 1-1/8 in.
Stroke/Travel Length (IN) 10.00
Stroke/Travel Length (mm) 254.0
Shaft Diameter (mm) 28.6
Country of Origin US
Condition New
