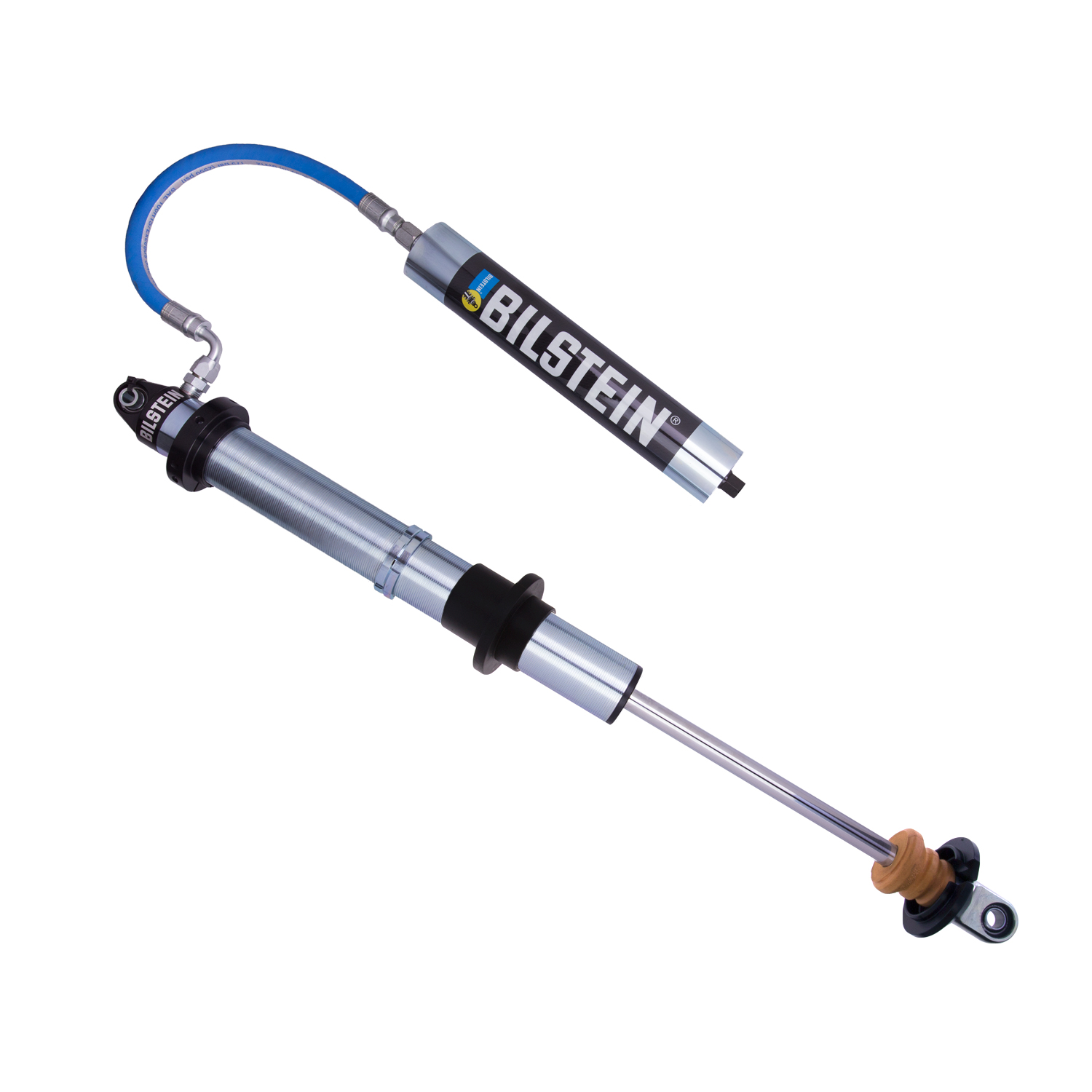

Bilstein Suspension Shock Absorber - 33-243795

M 9200 (Coilover) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-243795
Old price: $690.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Products specifications

Attribute name Attribute value
Extended Length (mm) 977.9
Extended Length (IN) 38.50
Internal Design Monotube
Boot Included N/A
Compression @0.52m/s 1000
Optional Reservoir Clamp N/A
Lower Mount Type Eye .5x1.5in
Upper Mount Type Eye .5x1.5in
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 60mm
Collapsed Length (IN) 24.50
Stroke/Travel Length (IN) 14.00
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 355.6
Mount Type Eye-to-Eye
Body Design Threaded Body (Coilover)
Series M 9200 (Coilover)
Rebound @0.52m/s 3550
Collapsed Length (mm) 622.3
Finish Zinc Plated
Reservoir Yes
Country of Origin US
Condition New
